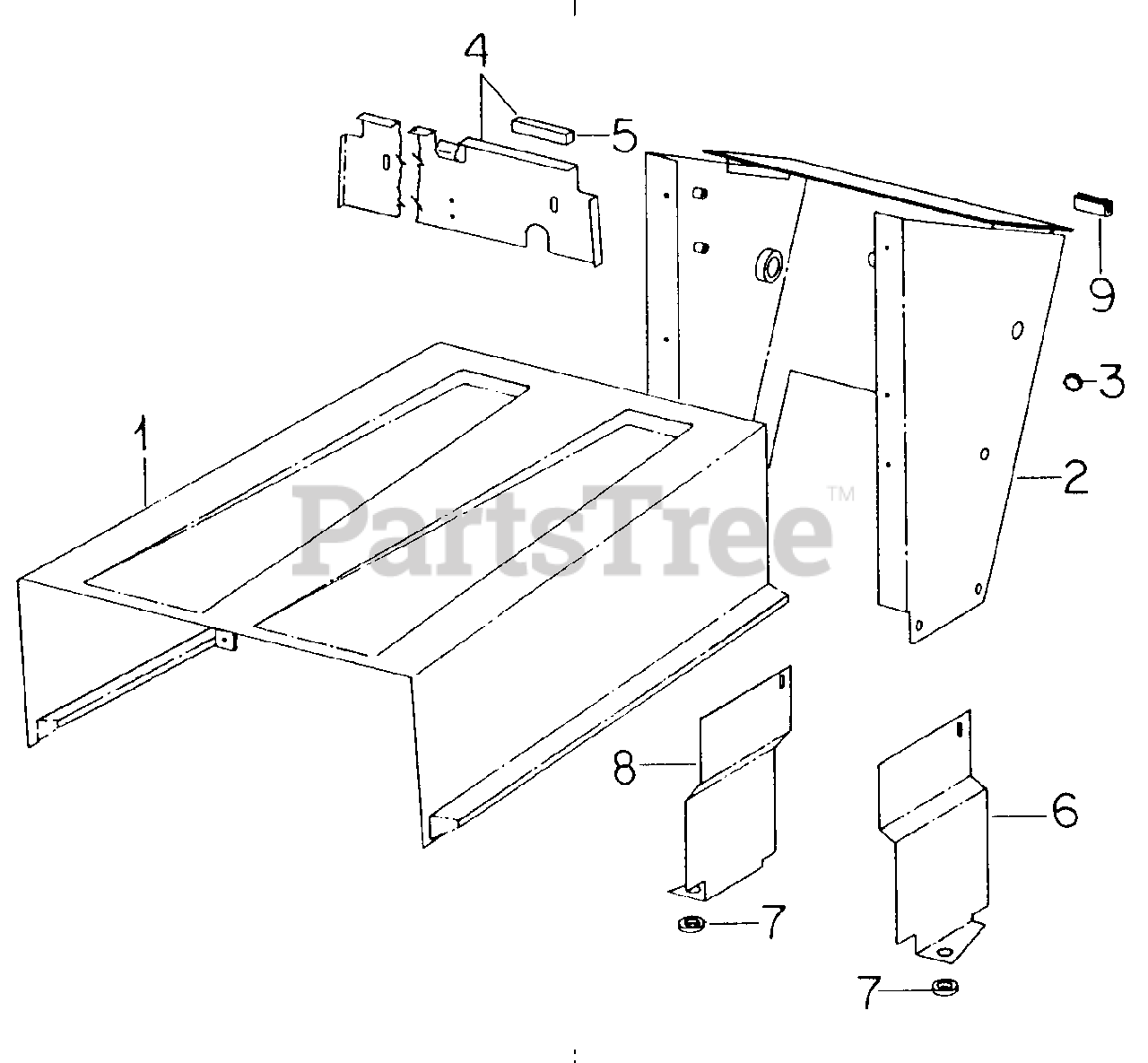

1100 (2050590U) - Cub Cadet Garden Tractor Hood & Pedestal Parts Diagram

Garden Tractor

Hood & Pedestal Parts Diagram

  • Title

1

Cub Cadet IH-61515-C1

Hood Assy

$

$

Not available

2

Cub Cadet IH-61518-C3

Pedestal Assy, Instrument Panel

$

$

Currently unavailable

Cub Cadet 710-3000

Bolt, 3/8 X 3/4 Type 5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 14

0

Cub Cadet 736-0169

Washer, 3/8 Lock

$3.99

$

In Stock, Qty 20+

0

3

~NLA

Plug, 23/32 Button

$

$

Not available

4

Cub Cadet IH-64533-C3

Support Assy, Rear Hood

$

$

Not available

Cub Cadet 710-3039

Bolt, 5/16 X 1/2 Type 5

$

$

Not available

Cub Cadet 736-0275

Washer, .344 X .688 X .051

$6.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 735-3005

Strip, Hood, Bumper

$

$

Currently unavailable

~NLA

Adhesive, Tube, Loctite #495

$

$

Not available

6

Cub Cadet IH-132404-C1

Panel, Extension LH

$

$

Currently unavailable

7

~NLA

Washer, Rubber

$

$

Not available

Bolt, 1/4 X 3/8 Type 5

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet IH-282328-C1

Washer, .281 X 1.125 X .054

$

$

Currently unavailable

8

Cub Cadet IH-132405-C1

Panel, Extension RH

$

$

Currently unavailable

Bolt, 1/4 X 3/8 Type 5

Note: (Common Hardware, Purchase Locally)

$

$

Not available

9

~NLA

Grommet, Edge

$

$

Not available
