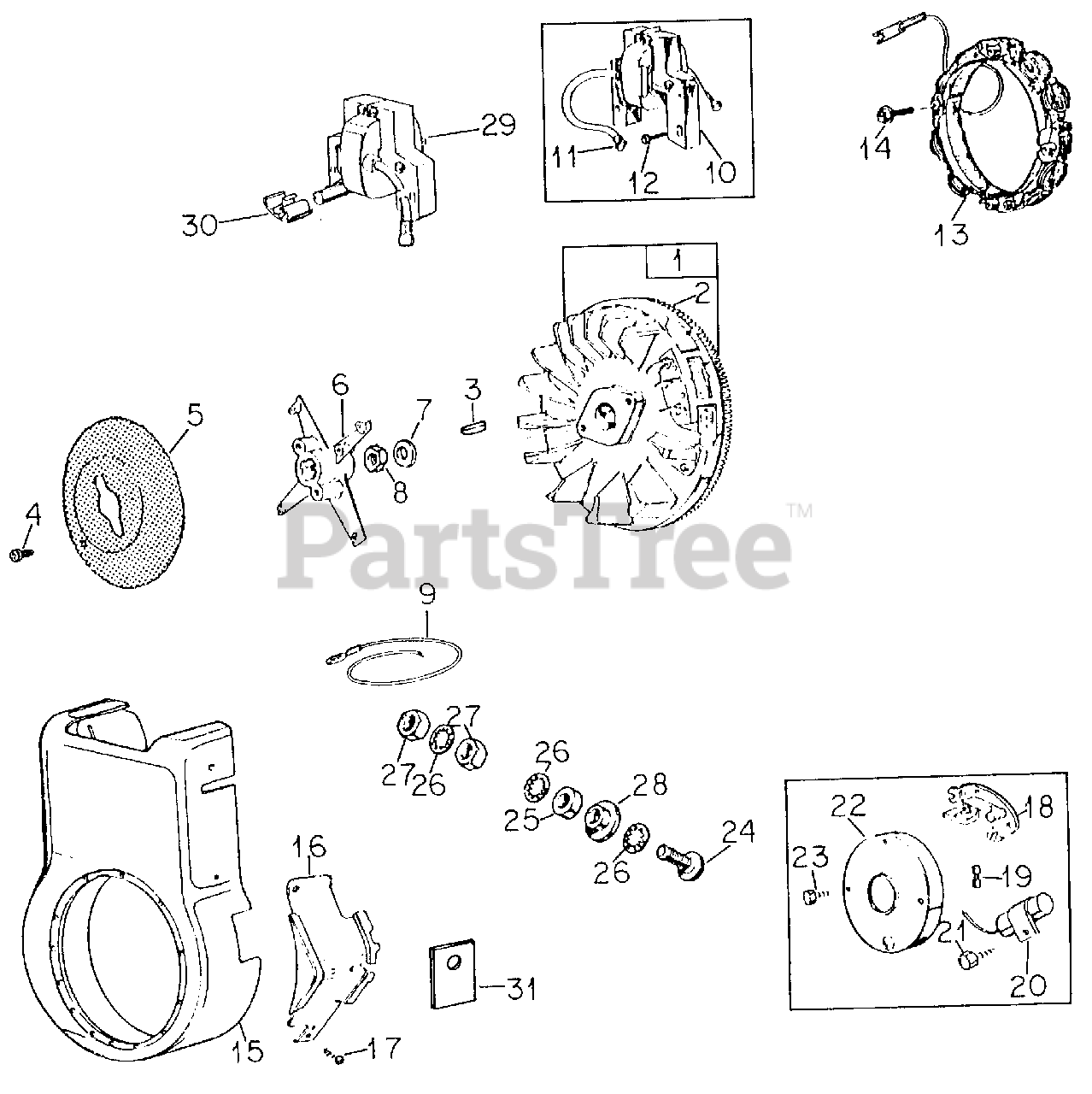

1100 (2050590U) - Cub Cadet Garden Tractor Flywheel Magneto & Points Parts Diagram

Garden Tractor

Flywheel Magneto & Points Parts Diagram

  • Title

1

Cub Cadet BS-391988

Flywheel w/Ring Gear Assy, Magneto

Note: (Tractor w/Serial No. 646219 & below)

$

$

Not available

Cub Cadet BS-392406

Flywheel w/Ring Gear Assy, Magneto

Note: (Tractor w/Serial No. 646220 & above)

$

$

Currently unavailable

2

Cub Cadet BS-392134

Gear, Flywheel Ring
(Superseded to BS-696537)

$50.99

$

Usually ships in 2-12 days

0

3

Cub Cadet BS-222698

Key, Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

4

Cub Cadet BS-93808

Screw, Flywheel Screen
(Superseded to BS-691655)

$3.99

$

Usually ships in 2-12 days

0

5

Cub Cadet IH-76594-C1

Screen, Flywheel

$

$

Not available

6

Cub Cadet BS-212159

Fan, Booster

$86.99

$

Usually ships in 2-12 days

0

Cub Cadet 710-3103

Bolt, 5/16 X 2 Type 5

$4.49

$

In Stock, only 4 left!

0

Cub Cadet 736-0119

Washer, 5/16 Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet BS-220865

Washer, Spring

$

$

Currently unavailable

8

Cub Cadet 712-3056

Nut, 5/8-NF Jam Type 5

$4.99

$

In Stock, only 3 left!

0

9

Cub Cadet BS-398808

Wire, Ground

$11.99

$

In Stock, only 1 left!

0

10

Cub Cadet BS-298968

Armature Assy, Magneto

Note: (Tractor w/Serial No. 646219 & below)

$

$

Not available

11

Cub Cadet BS-221798

Terminal, Magneto Cable
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

12

Cub Cadet BS-93381

Screw, Armature Mounting

$

$

Not available

13

Cub Cadet BS-392595

Stator, Alternator
(Superseded to BS-592829)

$102.99

$

Usually ships in 2-12 days

0

14

Cub Cadet BS-93621

Screw, Stator Mounting
(Superseded to BS-691183)

$

$

Not available

15

Cub Cadet IH-76579-C1

Housing, Blower

$

$

Currently unavailable

16

Cub Cadet BS-395405

Cover, Starter Shield

$

$

Not available

17

Cub Cadet BS-93410

Screw, Starter Shield

$7.99

$

In Stock, only 1 left!

0

18

Cub Cadet BS-391284

Breaker Assy, Ignition Points

Note: (Tractor w/Serial No. 646219 & below)

$44.99

$

Usually ships in 2-12 days

0

19

Cub Cadet BS-65704

Plunger, Breaker Points

Note: (Tractor w/Serial No. 646219 & below)

$

$

Not available

~NLA

Screw, No. 8 X 5/16 Znp H/Hds L/W Mach

$

$

Not available

20

Cub Cadet BS-29861

Condenser

Note: (Tractor w/Serial No. 646219 & below)

$25.99

$

Usually ships in 2-12 days

0

21

Cub Cadet BS-93042

Screw, Condenser Mounting

Note: (Tractor w/Serial No. 646219 & below)

$

$

Currently unavailable

22

Cub Cadet IH-76598-C1

Cover, Points & Condenser

Note: (Tractor w/Serial No. 646219 & below)

$

$

Currently unavailable

23

Cub Cadet BS-93705

Screw, Cover Mounting
(Superseded to BS-690661)

Note: (Tractor w/Serial No. 646219 & below)

$3.49

$

In Stock, Qty 9

0

24

~NLA

Screw, Terminal Mounting

$

$

Not available

25

Cub Cadet BS-66068

Washer, Insulating

$

$

Currently unavailable

26

Cub Cadet BS-92791

Washer, No. 8 Int Tooth Lock
(Superseded to BS-691077)

$3.49

$

In Stock, only 2 left!

0

27

Cub Cadet 712-0142

Nut, No. 8-32 Hex Mach Screw Terminal

$4.49

$

In Stock, Qty 9

0

28

Cub Cadet BS-66554

Collar, Insulating

$

$

Currently unavailable

29

Cub Cadet BS-398811

Armature Assy

Note: (Tractor w/Serial No. 646220 & above)

$63.99

$

In Stock, Qty 20+

0

30

Cub Cadet BS-280186

Shield, Capsule

Note: (Tractor w/Serial No. 646220 & above)

$5.99

$

Usually ships in 2-12 days

0

31

Cub Cadet BS-222095

Retainer, Wire

Note: (Tractor w/Serial No. 646220 & above)

$

$

Currently unavailable

Cub Cadet BS-93705

Screw, Retainer
(Superseded to BS-690661)

$3.49

$

In Stock, Qty 9

0
