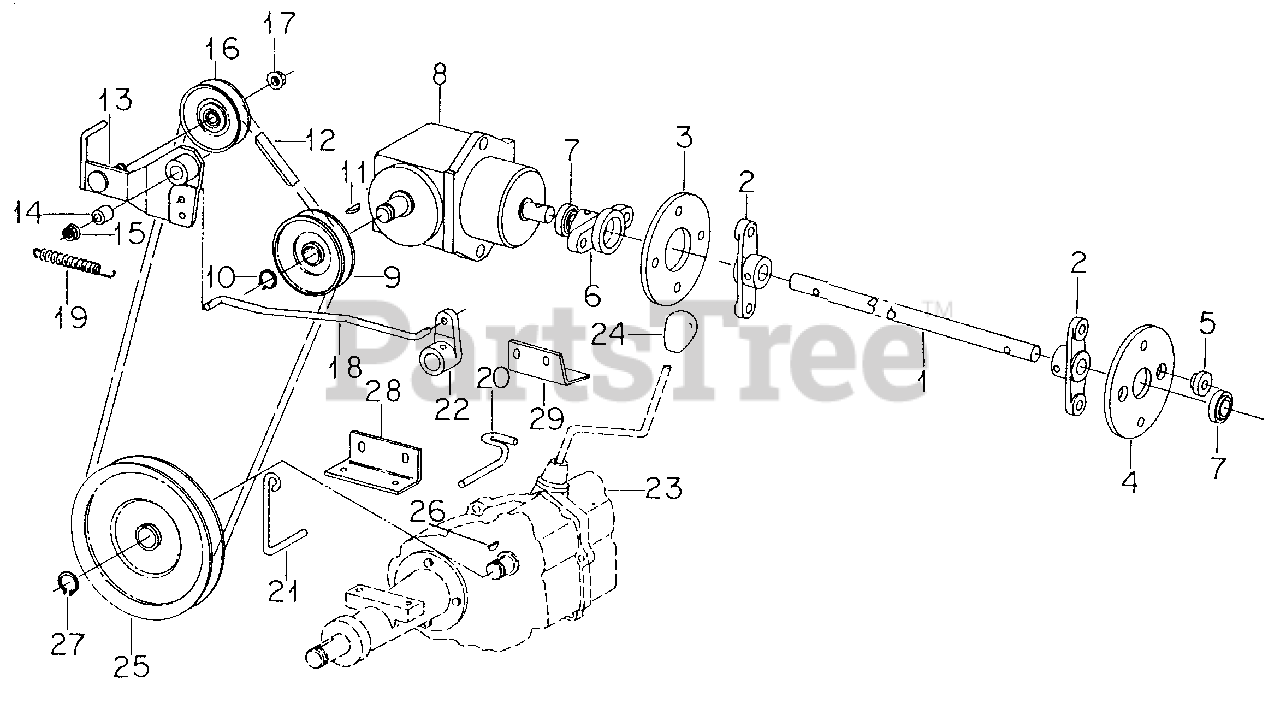

1100 (2050590U) - Cub Cadet Garden Tractor Clutch & Controls Parts Diagram

Garden Tractor

Clutch & Controls Parts Diagram

  • Title

1

Cub Cadet IH-132444-C1

Shaft, Drive

$

$

Not available

2

Cub Cadet 748-3001

Arm, Coupling

$

$

Not available

3

Cub Cadet 722-3000

Disc, Flexible Coupling

$28.99

$

In Stock, only 2 left!

0

4

Cub Cadet 722-3001

Disc, Flexible Coupling
(Superseded to 922-3001)

$

$

Not available

5

Cub Cadet 711-3001

Bushing

$

$

Not available

Cub Cadet 710-3005

Bolt, 3/8 X 1-1/4 Type 5

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 710-0520

Bolt, 3/8 X 1-1/2 Type 5

$4.49

$

In Stock, Qty 6

0

Cub Cadet 736-0140

Washer, .406 X .812 X .051

$7.49

$

In Stock, Qty 7

0

Cub Cadet 712-3000

Nut, 3/8 Cad P/T Lock Type 5

$4.49

$

In Stock, Qty 9

0

Cub Cadet 715-3000

Pin, 1/4 X 1-3/8 Hvy Cld Spr

$5.49

$

In Stock, Qty 20+

0

6

Cub Cadet 703-0794

Coupler, Driveshaft
(Superseded to 903-0794)

$244.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 741-3004

Bushing, Self Aligning Ball
(Superseded to 941-3004)

$51.99

$

In Stock, Qty 7

0

8

Cub Cadet TC-794233

Drive, Right Angle

Note: (Refer to right angle drive for list of components)

$

$

Currently unavailable

Cub Cadet 710-3005

Bolt, 3/8 X 1 Type 5

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 712-0798

Nut, 3/8 Type 5

$4.49

$

In Stock, Qty 12

0

9

Cub Cadet 756-3000

Pulley, Drive

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 710-3006

Screw, Set

$4.49

$

In Stock, only 1 left!

0

10

Cub Cadet 716-0115

Ring, Retaining
(Superseded to 916-0115)

$

$

Not available

11

Cub Cadet 714-0868

Key, 3/16 X 3/4 Woodruff 9
(Superseded to 914-0868)

$3.99

$

In Stock, only 4 left!

0

12

Cub Cadet 754-3000

Belt, Clutching
(Superseded to 954-3000)

$31.99

$

In Stock, only 1 left!

0

13

Cub Cadet 703-0011

Arm Assy, Clutch

$

$

Not available

14

Cub Cadet 750-3001

Bushing, Clutch Arm

$

$

Currently unavailable

Cub Cadet 710-0805

Bolt, 5/16 X 1-1/2 Type 5
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-3004

Nut, 5/16 Flange Lock
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet IH-61176-C92

Pulley, Drive Idler

$38.99

$

In Stock, only 2 left!

0

Cub Cadet 736-0140

Washer, .406 X .812 X .051

$7.49

$

In Stock, Qty 7

0

17

Cub Cadet 712-3005

Nut, 3/8 Flange Lock

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet 736-0275

Washer, .344 X .688 X .051

$6.99

$

Usually ships in 3-6 days

0

18

Cub Cadet IH-132005-C1

Rod, Clutch
(Superseded to 747-3003)

$

$

Not available

Cub Cadet 714-0474

Pin, 1/8 X 3/4 Pln Cot

$4.99

$

In Stock, Qty 13

0

Cub Cadet 736-0275

Washer, .344 X .688 X .051

$6.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 732-3003

Spring, Clutch

$

$

Not available

Cub Cadet 712-0798

Nut, 3/8 Type 5

$4.49

$

In Stock, Qty 12

0

Cub Cadet 736-0140

Washer, .406 X .812 X .051

$7.49

$

In Stock, Qty 7

0

Cub Cadet 710-3000

Bolt, 3/8 X 3/4 Type 5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

20

Cub Cadet 747-3004

Guide, Belt

$

$

Not available

21

Cub Cadet 747-3005

Guide, Belt

$

$

Not available

Cub Cadet 710-3000

Bolt, 3/8 X 3/4 Type 5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

Cub Cadet 736-0140

Washer, .406 X .812 X .051

$7.49

$

In Stock, Qty 7

0

Cub Cadet 712-0798

Nut, 3/8 Type 5

$4.49

$

In Stock, Qty 12

0

22

Cub Cadet 719-3001

Lever, Neutral Return

$

$

Not available

23

Cub Cadet 717-3001

Transaxle

Note: (Refer to tranaxle for list of components)

$

$

Not available

24

Cub Cadet 720-3000

Knob, Shifter
(Superseded to 920-3000)

$11.99

$

In Stock, only 3 left!

0

25

Cub Cadet 756-3002

Pulley, Transaxle

$

$

Not available

26

Cub Cadet 714-0868

Key, 3/16 X 3/4 Woodruff 9
(Superseded to 914-0868)

$3.99

$

In Stock, only 4 left!

0

27

Cub Cadet 716-0101

Ring, Ret

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 710-3006

Screw, Set

$4.49

$

In Stock, only 1 left!

0

28

Cub Cadet IH-132008-C1

Bracket, Trans Mtg

$

$

Currently unavailable

Cub Cadet 710-0520

Bolt, 3/8 X 1-1/2 Type 5

$4.49

$

In Stock, Qty 6

0

Cub Cadet 710-3000

Bolt, 3/8 X 3/4 Type 5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

Cub Cadet 712-3000

Nut, 3/8 Cad P/T Lock Type 5

$4.49

$

In Stock, Qty 9

0

29

Cub Cadet IH-132292-C1

Bracket, Trans LH

$

$

Currently unavailable

Cub Cadet 736-0140

Washer, .406 X .812 X .051

$7.49

$

In Stock, Qty 7
