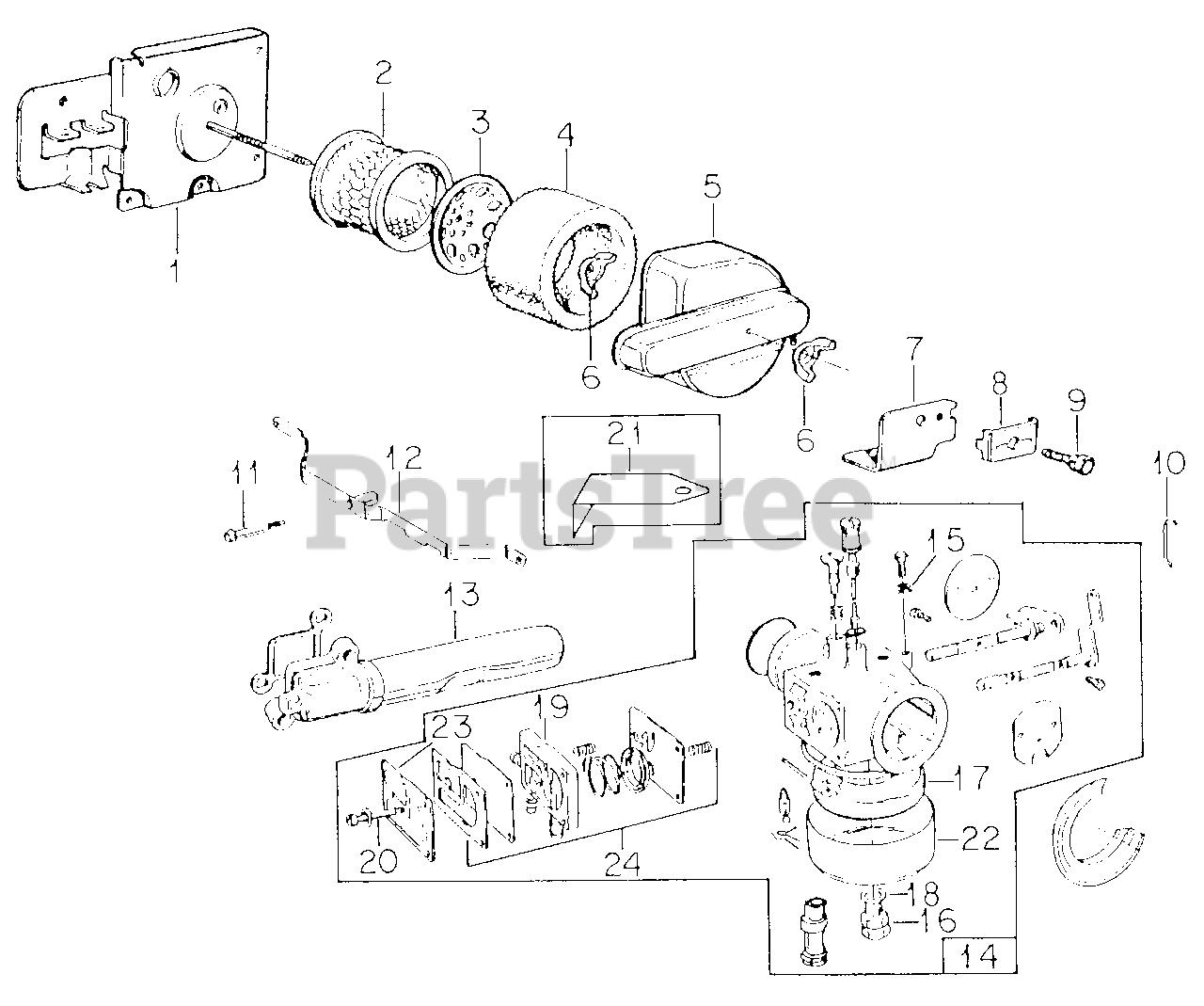

1100 (2050590U) - Cub Cadet Garden Tractor Air Cleaner & Carburetor Parts Diagram

Garden Tractor

Air Cleaner & Carburetor Parts Diagram

  • Title

1

Cub Cadet IH-76632-C1

Plate Assy, Air Cleaner Mounting

$

$

Not available

Cub Cadet 710-0118

Bolt, 5/16 X 3/4 Type 5
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 710-3049

Bolt, 1/4 X 9/16 Type 5

$

$

Not available

2

Cub Cadet BS-392286

Cartridge, Air Cleaner

$22.99

$

Usually ships in 2-12 days

0

3

Cub Cadet IH-76620-C1

Cup, Air Cleaner

$

$

Currently unavailable

4

Cub Cadet BS-270973

Element, Air Cleaner

$5.99

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-392288

Cover, Air Cleaner

$

$

Currently unavailable

6

Cub Cadet 712-3044

Nut, 1/4-20 Znp Wing

$

$

Not available

7

Cub Cadet IH-76587-C1

Bracket, Choke Control

$

$

Not available

8

Cub Cadet BS-221535

Clamp, Casing
(Superseded to BS-691024)

$3.99

$

In Stock, Qty 7

0

9

Cub Cadet BS-93496

Screw, Clamp
(Superseded to BS-690804)

$

$

Not available

10

Cub Cadet BS-261339

Link, Throttle

$7.49

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-93838

Bolt, Shoulder

$

$

Not available

12

Cub Cadet BS-392292

Lever, Linkage

$10.99

$

Usually ships in 2-12 days

0

13

Cub Cadet IH-76618-C1

Manifold, Intake

$

$

Currently unavailable

Screw, 1/4 X 1-1/4 Znp Fil/Hdcr Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

14

Cub Cadet BS-392690

Carburetor Assy

$

$

Not available

15

Cub Cadet BS-260575

Spring, Throttle Adjusting

$

$

Currently unavailable

16

Cub Cadet IH-76573-C1

Screw, Float Bowl Mounting

$

$

Not available

17

Cub Cadet BS-299707

Float Assy

$

$

Not available

18

Cub Cadet BS-222014

Washer, Float Bowl
(Superseded to BS-690618)

$4.99

$

In Stock, Qty 9

0

19

Cub Cadet BS-280162

Pump, Body

$

$

Not available

20

Cub Cadet BS-93829

Screw, Pump Cover

$

$

Currently unavailable

21

Cub Cadet IH-140233-C1

Bracket, Carburetor Support

Note: (Tractor w/Serial No. 646219 & below)

$

$

Currently unavailable

22

Cub Cadet BS-221995

Bowl, Float

$8.99

$

In Stock, Qty 6

0

23

Cub Cadet BS-222615

Cover, Pump

$2.49

$

Usually ships in 2-12 days

0

24

Cub Cadet BS-393397

Kit, Pump Repair

$

$

Not available

Cub Cadet BS-393544

Kit, Carburetor Overhaul

Note: (Consists of Ref No. 24, gaskets, valves & jet screws)

$170.99

$

Usually ships in 2-12 days

0
