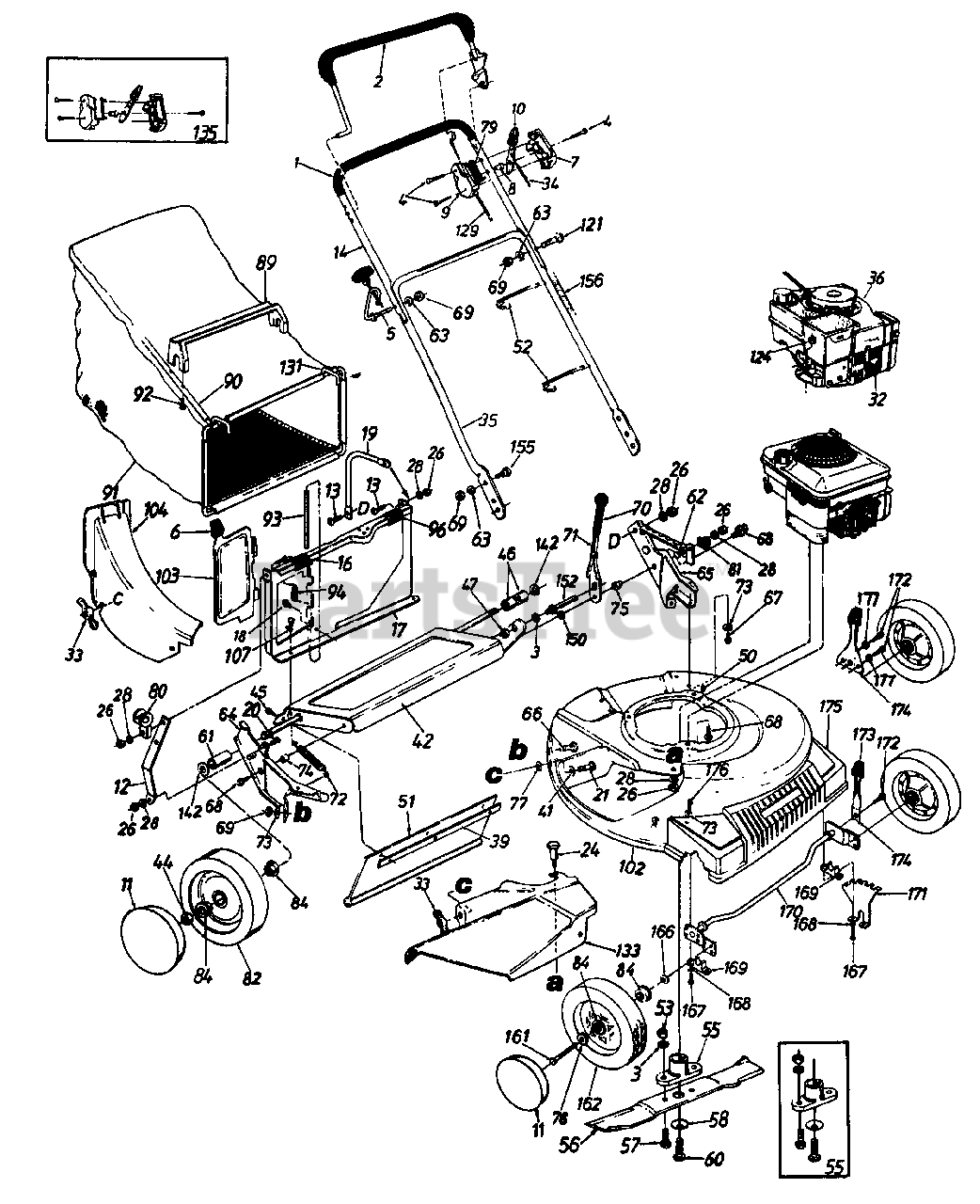

110-868R - MTD Walk-Behind Mower (1990) 21" Parts Diagram

Walk-Behind Mower

21" Parts Diagram

  • Title

1

MTD 720-0226

Foam Grip
(Superseded to 720-0295)

$33.99

$

Usually ships in 3-6 days

0

2

MTD 731-0609

Control Handle Ass'y. L.H.

$

$

Not available

3

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-0796

Truss Mach. Scr. #12 x 1.5"

$5.49

$

In Stock, only 1 left!

0

5

MTD 710-0842B

Rope Guide Bolt

$

$

Not available

6

MTD 720-0190

Door Grip
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

7

MTD 731-0817

Control Panel Half

$

$

Not available

8

MTD 731-0524

Control Disc Pin

$

$

Not available

9

MTD 731-0816

Clutch Panel Half

$

$

Not available

10

MTD 731-0528A

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

11

MTD 731-0982A

Hub Cap
(Superseded to 731-0982C)

$11.99

$

In Stock, Qty 18

0

12

MTD 16129A

Panel Support Brkt.
(Superseded to 16129A-0637)

Variations

MTD 16129A-0637

BRACKET-PANEL SUP - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

13

MTD 710-0946

Truss Mach. Scr. 1/4-20 x .62"

$3.99

$

Usually ships in 3-6 days

0

14

MTD 749-0438A

Upper Handle
(Superseded to 749-0438D-0637)

$

$

Not available

MTD 722-0139

Foam Strip 1" Lg.

$

$

Not available

16

MTD 710-0225

Truss Mach. Scr. 1/4-20 x .75"

$

$

Currently unavailable

17

MTD 16862

Top Catcher Panel Ass'y.

Variations

MTD 16862-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 16862-0637

No Longer Available PANEL ASM - POWDER BLACK (0637)

$

$

Not available

MTD 16862-0638

No Longer Available PANEL ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16862-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 16862-0662

No Longer Available PANEL ASM - OYSTER GRAY (0662)

$

$

Not available

MTD 16862-0665

No Longer Available PANEL ASM - YARDMAN GREEN (0665)

$

$

Not available

$

$

18

MTD 710-0429

Hex B-Tap Scr. #10 x .38"
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

19

MTD 749-0778

Catcher Panel Support Arm

$

$

Not available

20

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

21

MTD 710-0134

Carriage Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

24

MTD 738-0704

Shoulder Bolt .312 Dia. x .18 Lg. Special

$17.99

$

Usually ships in 3-6 days

0

26

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

28

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

32

MTD 735-0639

Spark Plug Insulator

$

$

Not available

33

MTD 712-0388

Wing Nut w/Washer
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

34

MTD 746-0674

Throttle Control Ass'y. Comp. 61"
(Superseded to 946-0674A)

Note: (110864R, 110868R)

$18.99

$

In Stock, only 1 left!

0

MTD 746-0672

Throttle Control Ass'y. Comp. 58"
(Superseded to 946-0674A)

Note: (110867R)

$18.99

$

In Stock, only 1 left!

0

MTD 746-0640

Throttle Control Ass'y. Comp. 45"
(Superseded to 946-1115)

Note: (110869R)

$28.99

$

In Stock, only 1 left!

0

35

MTD 749-0725

Lower Handle
(Superseded to 749-0907B)

$50.99

$

In Stock, only 1 left!

0

36

Engine

$

$

Not available

39

MTD 14835

Retaining Strip

$

$

Not available

41

MTD 736-0204

Fl-Wash. .344" I.D. x .62"

$4.49

$

In Stock, Qty 20+

0

42

MTD 16131A

Rear Axle Ass'y.

Variations

MTD 16131A-0483

No Longer Available Axle ASM- - CHARCOAL GRAY (0483)

$

$

Not available

MTD 16131A-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 16131A-0629

No Longer Available axle - SILVER FLAKE (0629)

$

$

Not available

MTD 16131A-0637

No Longer Available Axle - POWDER BLACK (0637)

$

$

Not available

MTD 16131A-0638

No Longer Available Axle - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16131A-0662

No Longer Available axle - OYSTER GRAY (0662)

$

$

Not available

MTD 16131A-0665

No Longer Available Axle - YARDMAN GREEN (0665)

$

$

Not available

$

$

44

MTD 712-0346

Hex L-Nut 1/2-20 Thd.

$4.99

$

In Stock, Qty 6

0

45

MTD 710-0776A

Hex AB-Tap Scr. 1/4 X .62"
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

46

MTD 711-0500

Spacer.526" I.D.

$

$

Not available

47

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

50

MTD 731-0564

Plug

$

$

Not available

51

MTD 731-0671A

Rear Flap
(Superseded to 731-1484)

$

$

Not available

52

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

53

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

55

MTD 753-0485

Blade Adapter Kit

$46.99

$

Usually ships in 3-6 days

0

56

MTD 742-0306A

21" Blade
(Superseded to 942-0621)

$29.99

$

In Stock, only 1 left!

0

57

MTD 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$4.99

$

Usually ships in 3-6 days

0

58

MTD 736-0453

Bell-Wash. .46" I.D. x 1.12"
(Superseded to 936-0453)

$3.49

$

Usually ships in 3-6 days

0

60

MTD 710-0757

Hex Bolt 7/16-20 x 1.5" Grade 5

$9.99

$

In Stock, only 1 left!

0

61

MTD 711-0313

Sleeve.526" I.D.

$

$

Not available

62

MTD 710-0255

Truss Mach. Scr. 1/4-20 x .75" Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

63

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

64

MTD 16136A

R.H. Handle Wheel Brkt. Ass'y.
(Superseded to 16136C-0637)

$

$

Not available

65

MTD 16137B

L.H. Handle Wheel Brkt. Ass'y.
(Superseded to 16137C-0637)

$

$

Not available

66

MTD 710-0260

Carriage Bolt 5/16-18 x .62"
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

67

MTD 710-0603

Hex B-Tap Scr. 5/16-18

$4.99

$

Usually ships in 3-6 days

0

68

MTD 710-0654A

Hex TT-Tap Scr. 3/8-16

$4.49

$

In Stock, Qty 20+

0

69

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

70

MTD 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

71

MTD 732-0606

Height Adj. Lever

$

$

Not available

72

MTD 732-0481

Extension Spring 3.80" Lg.
(Superseded to 932-0481)

$

$

Not available

73

MTD 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

74

MTD 750-0736

Spacer.383" I.D.
(Superseded to 950-0736)

$5.49

$

Usually ships in 3-6 days

0

75

MTD 750-0624

Shld. Spacer.5" Dia.

$

$

Not available

76

MTD 736-0232

Wave Wash. .53" I.D. x .78"

$4.99

$

In Stock, Qty 12

0

77

MTD 726-0233

Bolt Retainer 1/4 x .50" O.D.

$4.49

$

In Stock, Qty 20+

0

79

MTD 777-5814

Control Label

$

$

Not available

80

MTD 719-0279

Rope Guide

$15.99

$

Usually ships in 3-6 days

0

81

MTD 726-0175

Clamp

$

$

Not available

82

MTD 734-1517A

Wheel Ass'y. Comp.
(Superseded to 734-1517B)

$68.99

$

Usually ships in 3-6 days

0

84

MTD 741-0180

Flange Ball Bearing 1/2" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

89

MTD 731-0801

Bag Handle

$

$

Not available

90

MTD 749-0764A

Rear Catcher Frame
(Superseded to 749-0764A-0637)

Variations

MTD 749-0764A-0637

FRAME-CATCHER-RR - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

91

MTD 764-0262

Grass Bag
(Superseded to 964-0082)

$

$

Not available

92

MTD 710-1025

Hex AB-Tap Scr. #12 x 1.25" Lg.

$6.49

$

Usually ships in 3-6 days

0

93

MTD 747-0514

Chute Rod .188" Dia.

$

$

Not available

94

MTD 732-0483A

Torsion Spring

$10.99

$

Usually ships in 3-6 days

0

96

MTD 731-0880

Panel Clip

$3.99

$

Usually ships in 3-6 days

0

102

MTD 17050

21" DeckAss'y.

Variations

MTD 17050-0638

No Longer Available DECK ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

103

MTD 17095

Top Discharge Door

$

$

Not available

104

MTD 731-1024

Top Discharge Chute Ass'y.
(Superseded to 731-1023)

$

$

Not available

107

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

121

MTD 710-0405

Curved Carr. Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

124

MTD 712-0798

Hex Nut 3/8 x 16 Thd.

Note: (110867R)

$4.49

$

In Stock, Qty 12

0

129

MTD 746-0480A

Control Cable 46"

Note: (110864R & 110868R)

$

$

Not available

MTD 746-0479A

Control Cable 55"
(Superseded to 946-0479A)

Note: (110867R)

$

$

Not available

MTD 746-0482

Control Cable 58"

Note: (110869R)

$

$

Not available

131

MTD 747-0705

Front Catcher Frame
(Superseded to 747-0705-0637)

Variations

MTD 747-0705-0637

FRAME-CATCHER-FR - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

133

MTD 731-0885

Side Chute Deflector Ass'y.

$

$

Not available

135

MTD 753-0430

Kit Control Housing Comp.

$

$

Not available

142

MTD 736-0108

Fl-Wash. .510" I.D. x .75"

$6.99

$

Usually ships in 3-6 days

0

150

MTD 736-0258

Fl-Wash. 3/8" I.D. x 1.0"

$4.49

$

In Stock, only 2 left!

0

152

MTD 711-0805

Shld. Pin 3/8-24 x 1.43" Lg.

$

$

Not available

155

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75"

$4.99

$

In Stock, only 2 left!

0

156

MTD 731-0759

Plastic Tubing 24" Lg.

$

$

Not available

161

MTD 738-0102

Front Axle Bolt

$9.99

$

In Stock, Qty 10

0

162

MTD 734-1517A

Wheel Ass'y. Comp.
(Superseded to 734-1517B)

$68.99

$

Usually ships in 3-6 days

0

166

MTD 736-0105

Bell-Wash. .400" I.D. x .88

$4.49

$

In Stock, Qty 20+

0

167

MTD 710-0588

Hex B-Tap Scr. 1/4-20
(Superseded to 710-0788)

$7.49

$

In Stock, only 2 left!

0

168

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

169

MTD 741-0492

Block Bushing
(Superseded to 741-0492A)

$6.49

$

In Stock, Qty 9

0

MTD 741-0492A

Block Bushing

$6.49

$

In Stock, Qty 9

0

170

MTD 17060

Axle Ass'y.

$

$

Not available

MTD 17733

Axle Ass'y.

Variations

MTD 17733-0637

Front Axle Ass'y. - POWDER BLACK (0637)

$

$

Not available

$

$

171

MTD 17059

Height Adj. Bracket

$

$

Not available

172

MTD 710-0599

Hex TT-Tap Scr. 1/4-20 x .50"

$4.49

$

In Stock, Qty 20+

0

MTD 710-0653

Hex TT-Tap Scr. 1/4-20 x .38'

$4.49

$

In Stock, Qty 8

0

173

MTD 720-0190

Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

174

MTD 732-0553

Spring Lever (With 1 hole only)

$

$

Currently unavailable

MTD 732-0639

Spring Lever (With 3 holes)

$

$

Not available

175

MTD 731-0865

Plastic Front End
(Superseded to 931-0865C)

$

$

Not available

176

MTD 710-1001

Truss B-Tap Scr. 5/16 x .75"
(Superseded to 710-1242)

$4.99

$

In Stock, Qty 19

0

177

MTD 736-0322

Ext. L-Wash. 1/4" I.D.

$9.49

$

In Stock, Qty 8

0
