110-504R098 - MTD Walk-Behind Mower (1990) 504R098 Parts Diagram

Walk-Behind Mower

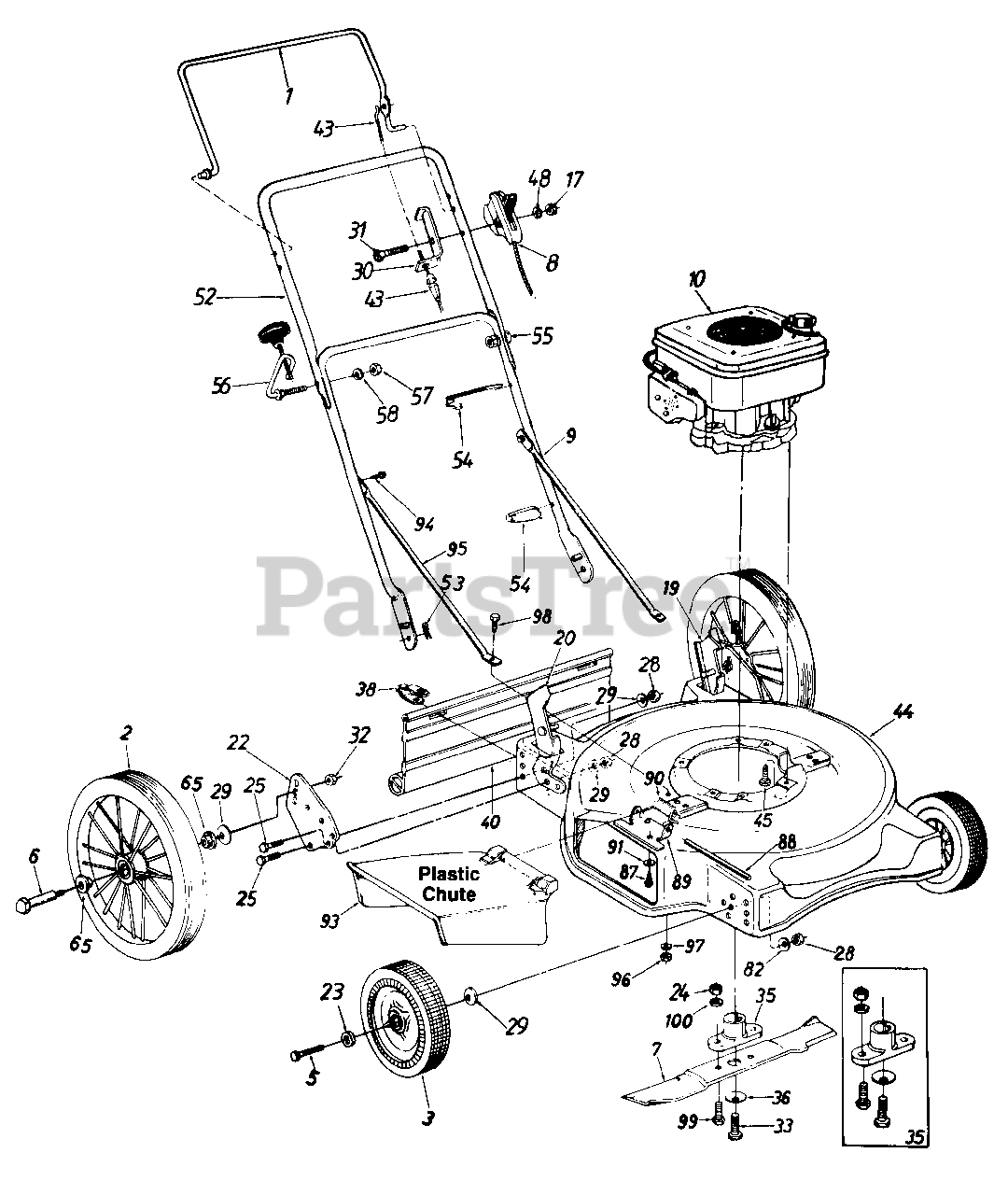

504R098 Parts Diagram

  • Title

1

MTD 747-0748

Control Handle Ass'y.

$

$

Not available

2

MTD 734-0244

Rear Wheel Ass'y. Comp.

$

$

Not available

3

MTD 734-1161A

Front Wheel Ass'y. Comp.

$

$

Not available

5

MTD 738-0213

Front Axle Bolt

$7.99

$

In Stock, only 2 left!

0

6

MTD 738-0481

Rear Axle Bolt
(Superseded to 938-0481A)

$6.99

$

In Stock, Qty 18

0

7

MTD 742-0522

22" Blade
(Superseded to 942-0622)

$

$

Not available

8

MTD 746-0810

Throttle Control Ass'y. Comp.- 36"
(Superseded to 946-0645A)

$46.99

$

Usually ships in 3-6 days

0

9

MTD 749-0372B

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, only 2 left!

0

10

3.5 H.P. Engine-See Breakdown

$

$

Not available

17

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

19

MTD 17189

Handle Mount Brkt.-L.H.

$

$

Not available

20

MTD 17188

Handle Mount Brkt.-R.H.

$

$

Not available

22

MTD 16645C

Mounting Plate

$

$

Not available

23

MTD 736-0232

Wave Wash. .53" I.D.

$4.99

$

In Stock, Qty 12

0

24

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

25

MTD 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 15

0

28

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

29

MTD 736-0105

Bell-Wash. .400" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

30

MTD 17174

Cable Brkt.

$

$

Not available

31

MTD 710-0501

Hex Bolt 1/4-20 x 2.0" Lg.

$7.49

$

Usually ships in 3-6 days

0

32

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

33

MTD 710-0757

Hex Bolt 7/16-20 x 1.5" Lg. (Grade 5)

$9.99

$

In Stock, only 1 left!

0

35

MTD 753-0485

Blade Adapter Kit

$46.99

$

Usually ships in 3-6 days

0

36

MTD 736-0453

Bell-Wash...46" I.D.
(Superseded to 936-0453)

$3.49

$

Usually ships in 3-6 days

0

38

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

40

MTD 731-1026

Rear Flap Ass'y.

$

$

Not available

43

MTD 746-0734

Control Cable-43"

$

$

Not available

44

MTD 17046

22" Deck Ass'y.
(Superseded to 97046)

$197.99

$

Usually ships in 3-6 days

0

45

MTD 710-0654A

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg.

$4.49

$

In Stock, only 4 left!

0

MTD 710-0428

Hex Bolt 1/4-28 x 1.25" Lg.

$2.49

$

In Stock, only 1 left!

0

MTD 736-0175

Spr. Wash. .265" I.D. x .562" O.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

48

MTD 736-0175

Spr. Wash. .265" I.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

52

MTD 749-0755

Upper Handle
(Superseded to 749-0756A)

$

$

Not available

53

MTD 714-0104

Intern. Cot. Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

54

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

55

MTD 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

56

MTD 710-0842B

Rope Guide Bolt

$

$

Not available

57

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

58

MTD 736-0119

L-Wash. 5/16 I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

65

MTD 748-0147

Bearing 1/2" I.D.

$

$

Not available

82

MTD 736-0356

Bell-Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

87

MTD 710-0599

Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

88

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

89

MTD 17032

Adapter Plate
(Superseded to 17032A)

$10.99

$

In Stock, only 2 left!

0

90

MTD 732-0593

Torsion Spring
(Superseded to 932-0593)

$4.99

$

In Stock, only 3 left!

0

91

MTD 736-0270

Bell-Wash. .265" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

93

MTD 731-1034

Chute Deflector Ass'y. Comp.
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

94

MTD 710-0726

Hex Wash. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

95

MTD 749-0771

Strut Bar

$

$

Not available

96

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

97

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

98

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

99

MTD 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$4.99

$

Usually ships in 3-6 days

0

100

MTD 710-0169

L-Wash. 3/8" I.D.
(Superseded to 711-0577)

$

$

Not available
