110-4996 - Toro Kawasaki Engine Conversion Kit AIR FILTER AND MUFFLER ASSEMBLY Parts Diagram

Kawasaki Engine Conversion Kit

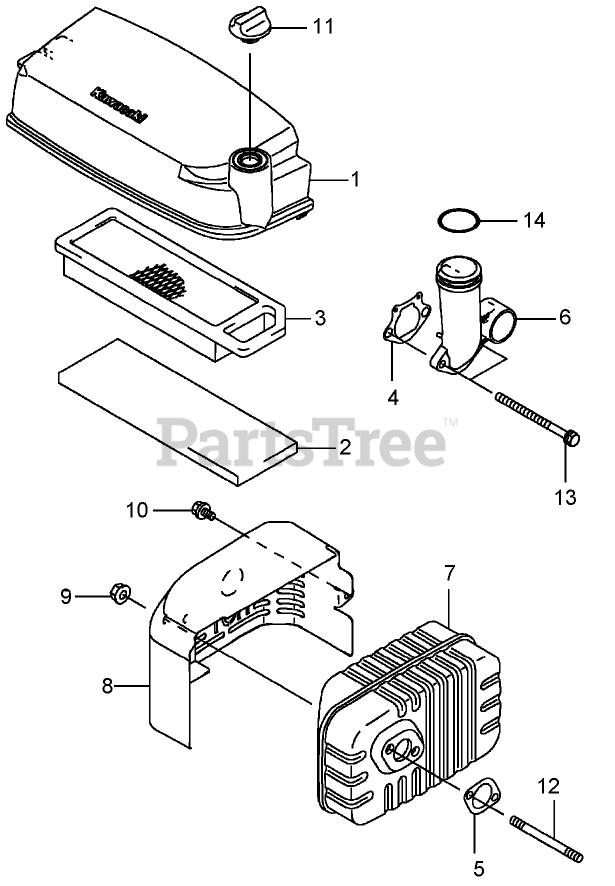

AIR FILTER AND MUFFLER ASSEMBLY Parts Diagram

  • Title

1

Toro 108-2602

CASE-FILTER, AIR

$20.99

$

Usually ships in 3-6 days

0

2

Toro 108-2603

ELEMENT-FILTER, AIR

$4.99

$

In Stock, Qty 20+

0

3

Toro 108-2604

AIR FILTER ELEMENT ASM

$26.99

$

Usually ships in 3-6 days

0

4

Toro 108-2605

GASKET-PIPE, INTAKE

$

$

Not available

5

Toro 108-2606

GASKET-MUFFLER

$8.99

$

Usually ships in 3-6 days

0

6

Toro 108-2607

PIPE-INTAKE

$11.99

$

Usually ships in 3-6 days

0

7

Toro 108-2608

MUFFLER

$133.99

$

Usually ships in 3-6 days

0

8

Toro 108-2609

COVER-MUFFLER

$47.99

$

Usually ships in 3-6 days

0

9

Toro 108-2610

NUT
(Superseded to 108-2571)

$1.49

$

Usually ships in 3-6 days

0

10

Toro 108-2611

BOLT (6X10)

$1.99

$

Usually ships in 3-6 days

0

11

Toro 108-2612

NUT

$24.99

$

In Stock, only 1 left!

0

12

Toro 100-2761

BOLT-STUD

$

$

Not available

13

Toro 100-2762

BOLT

$

$

Not available

14

Toro 108-2613

O-RING (32MM)

$3.99

$

Usually ships in 3-6 days

0
