110-412R - MTD Walk-Behind Mower (1990) Rotary Parts Diagram

Walk-Behind Mower

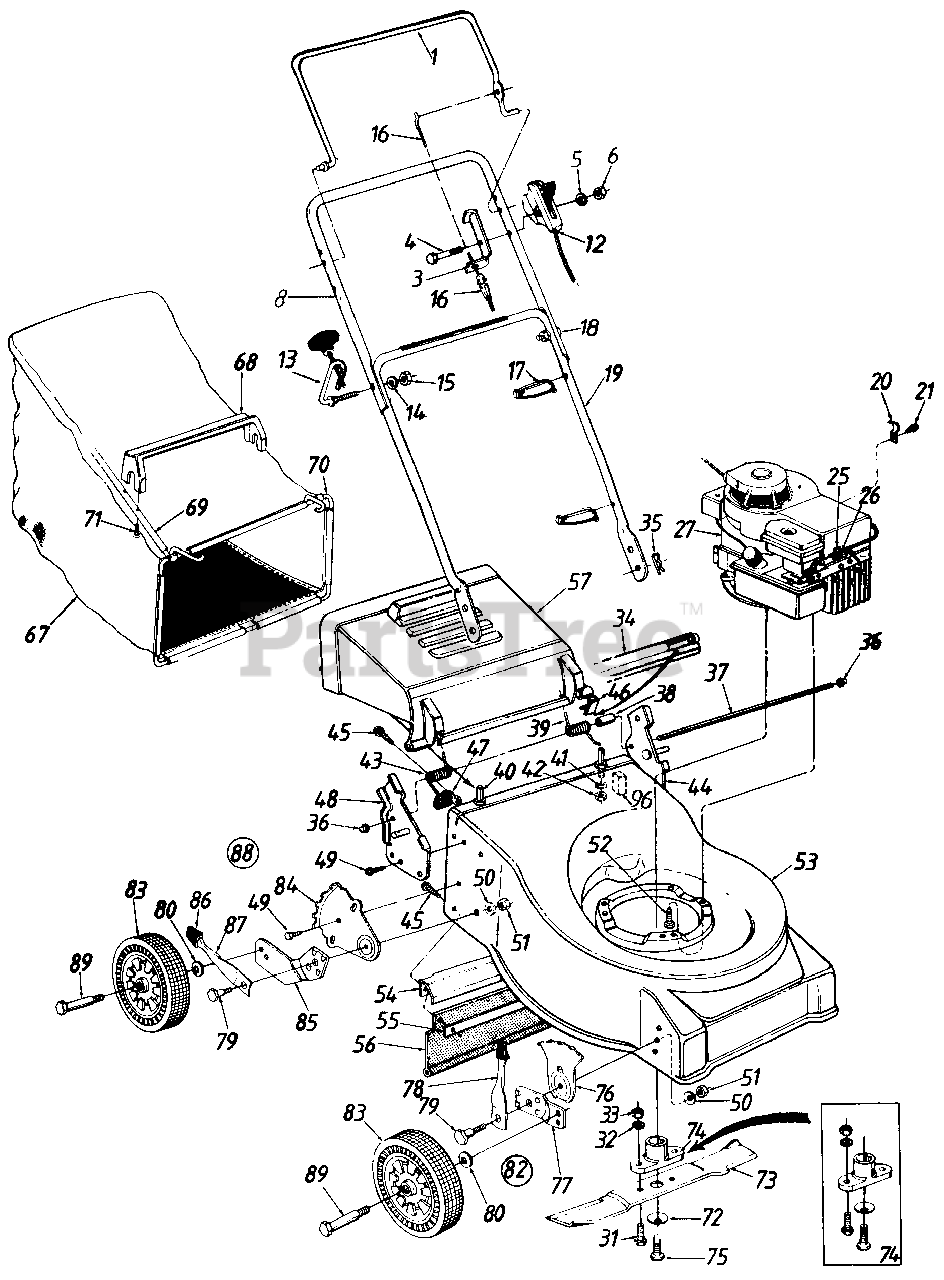

Rotary Parts Diagram

  • Title

1

MTD 747-0748

Control Handle Ass'y.

Note: (Std.)

$

$

Not available

3

MTD 17174

Cable Brkt.

$

$

Not available

4

MTD 710-0136

Hex Bolt 1/4-20 x 1.75" Lg.

$3.99

$

In Stock, Qty 20+

0

5

MTD 736-0175

Spr. Wash. 1/4" I.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

6

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

8

MTD 749-0438B

Upper Handle
(Superseded to 749-0438D-0637)

Variations

MTD 749-0438B-0637

Upper Handle - POWDER BLACK (0637)

$

$

Not available

$

$

12

MTD 746-0802

Throttle Control Ass'y. Comp. 56.62"
(Superseded to 946-0802A)

$60.99

$

In Stock, only 1 left!

0

13

MTD 710-0842B

Rope Guide Bolt

$

$

Not available

14

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

15

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

16

MTD 746-0551

Control Cable 43"
(Superseded to 946-0551)

$24.99

$

In Stock, only 1 left!

0

17

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

18

MTD 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

19

MTD 749-0504C

Lower Handle
(Superseded to 749-0907B)

$50.99

$

In Stock, only 1 left!

0

20

MTD 12894A

Cable Clamp

$

$

Not available

21

MTD 710-0429

Hex B-Tap Scr. #10 x .38" Lg.
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

25

MTD 751-0369

Cable Clamp

$

$

Not available

26

MTD 710-0227

Hex AB-Tap Scr. #8 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

27

Engine

$

$

Not available

31

MTD 710-1055

Hex Bolt 3/8-24 x 1"

$4.99

$

Usually ships in 3-6 days

0

32

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

33

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

34

MTD 731-0858

Seal Extrusion

$

$

Not available

35

MTD 714-0104

Int. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

36

MTD 726-0106

Cap Speed Nut

$3.99

$

Usually ships in 3-6 days

0

37

MTD 747-0698B

Hinge Pin 17.75" Lg.

$

$

Not available

38

MTD 750-0566

Spacer.255" I.D.
(Superseded to 750-0566A)

$9.99

$

In Stock, only 1 left!

0

39

MTD 732-0577A

Torsion Spring L.H.
(Superseded to 932-0577B)

$

$

Not available

40

MTD 711-0805

Shld. Pin 3/8-24 x 1.43" Lg.

$

$

Not available

41

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

42

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

43

MTD 732-0578A

Torsion Spring R.H.
(Superseded to 732-0578B)

$

$

Not available

44

MTD 12297A

Handle Brkt. Ass'y. L.H.

$

$

Not available

45

MTD 710-1017

Torx Mach. AB-Tap Scr. 1/4 X .62" Lg.

$8.49

$

In Stock, Qty 9

0

46

MTD 731-0970B

Deflector Plug

$

$

Not available

47

MTD 731-0931

Corner Plug

$

$

Not available

48

MTD 12296A

Handle Brkt. Ass'y. R.H.
(Superseded to 12296B-0637)

$

$

Not available

49

MTD 710-0892

Hex L-Wash. AB-Tap Scr. 1/4 x.62" Lg.
(Superseded to 910-0892)

$

$

Not available

50

MTD 736-0356

Bell-Wash. .39" I.D.
(Superseded to 936-0356)

$

$

Not available

51

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

52

MTD 710-0654A

Hex L-Wash. Hd. Scr. 3/8-16 x 1" Lg.

$4.49

$

In Stock, only 3 left!

0

53

MTD 16998

21" Deck Ass'y.

Variations

MTD 16998-0499

No Longer Available DECK ASM - CUB BEIGE (0499)

$

$

Not available

MTD 16998-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 16998-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16998-0650

No Longer Available DECK ASM - RED METALLIC (0650)

$

$

Not available

MTD 16998-0662

No Longer Available DECK ASM - OYSTER GRAY (0662)

$

$

Not available

MTD 16998-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

54

MTD 17014

Chute Baffle

$

$

Not available

55

MTD 17003

Retaining Strip 14.25" Lg.

Variations

MTD 17003-0637

No Longer Available STRIP-RETA - POWDER BLACK (0637)

$

$

Not available

$

$

56

MTD 731-0669

Rear Flap 17.30" Lg.

$50.99

$

Usually ships in 3-6 days

0

57

MTD 731-0859

Rear Chute Deflector
(Superseded to 931-0859A)

$120.99

$

Usually ships in 3-6 days

0

67

MTD 764-0246

Grass Bag

$

$

Not available

68

MTD 731-0801

Bag Handle

$

$

Not available

69

MTD 749-0764A

Rear Catcher Frame
(Superseded to 749-0764A-0637)

Variations

MTD 749-0764A-0637

FRAME-CATCHER-RR - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

70

MTD 747-0700B

Front Catcher Frame
(Superseded to 764-0412-0637)

$

$

Not available

71

MTD 710-1025

Hex AB-Tap Scr. #12 x 1.25" Lg.

$6.49

$

Usually ships in 3-6 days

0

72

MTD 736-0452

Bell-Wash..39" I.D.

$4.99

$

In Stock, Qty 5

0

73

MTD 742-0306A

21" Blade
(Superseded to 942-0621)

$29.99

$

In Stock, only 1 left!

0

74

MTD 753-0484

Blade Adapter Kit

$23.99

$

In Stock, only 1 left!

0

75

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

Usually ships in 3-6 days

0

76

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

77

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

78

MTD 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

79

MTD 738-0507B

Shld. Bolt .50" Dia. x .357"

$4.49

$

In Stock, only 4 left!

0

80

MTD 736-0105

Bell-Wash. .38" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

82

MTD 14578

Height Adj. Ass'y. Comp. R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Height Adj. Ass'y. Comp. L.H.
(Superseded to 753-06761)

Note: (Not Shown)

$65.99

$

In Stock, Qty 7

0

83

MTD 734-1169

Wheel Ass'y. Comp.
(Superseded to 734-04585)

$20.99

$

In Stock, only 1 left!

0

84

MTD 14764C

Index Plate

$8.49

$

Usually ships in 3-6 days

0

85

MTD 14765

Pivot Bar R.H.

$19.99

$

Usually ships in 3-6 days

0

MTD 14766

Pivot Bar L.H.

Note: (Not Shown)

$19.99

$

Usually ships in 3-6 days

0

86

MTD 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

87

MTD 732-0417A

Spring Lever

$

$

Not available

88

MTD 16106

Rear Height Adj. Ass'y. Comp. R.H.

$

$

Not available

MTD 16107

Rear Height Adj. Ass'y. Comp. L.H.

Note: (Not Shown)

$

$

Not available

89

MTD 738-0144

Axle Bolt
(Superseded to 938-0144)

$

$

Not available

96

MTD 731-0564

Plug

$

$

Not available
