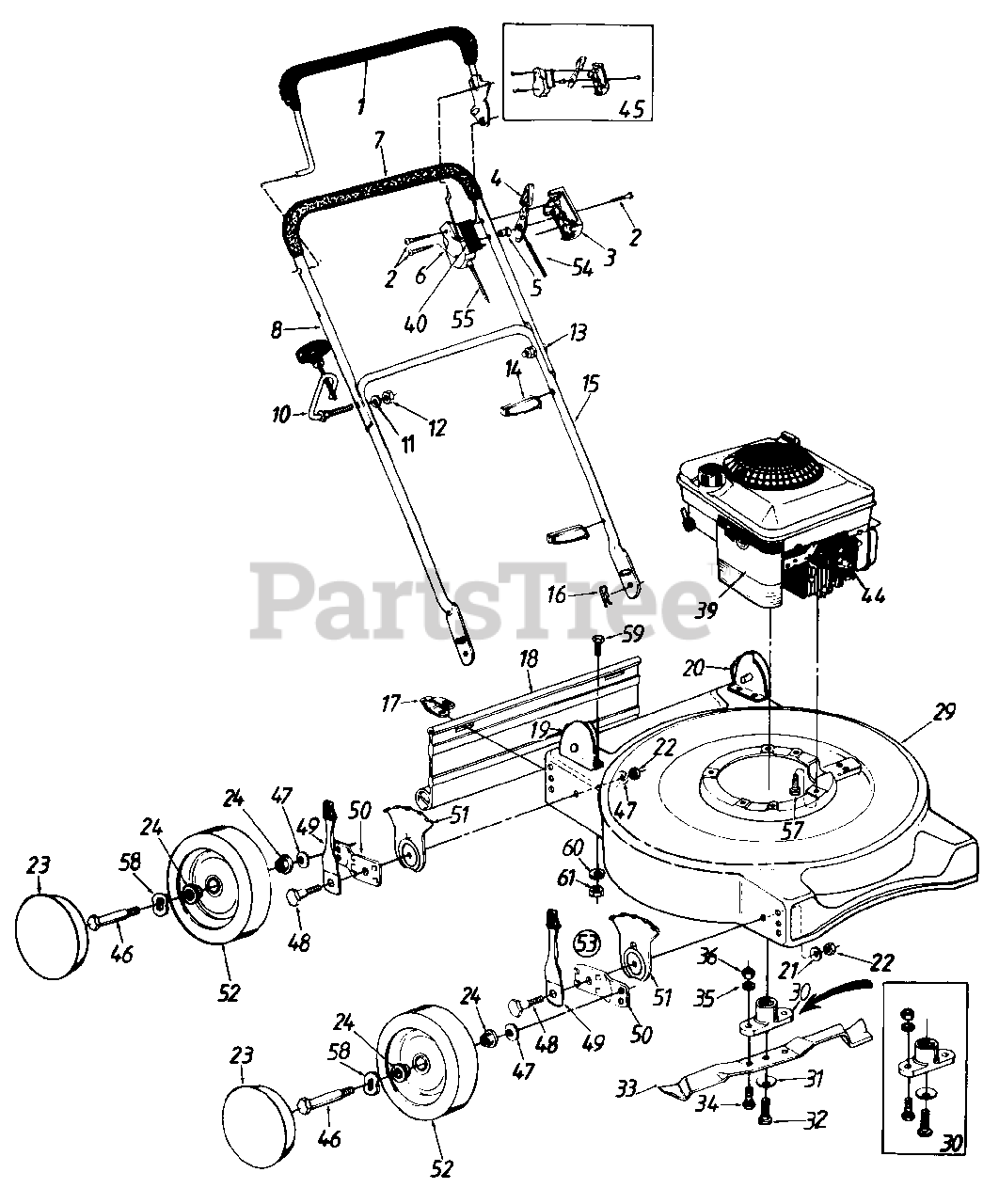

110-098R - MTD Walk-Behind Mower (1990) Mulching Parts Diagram

Walk-Behind Mower

Mulching Parts Diagram

  • Title

1

MTD 731-0609

Control Handle Ass'y.

$

$

Not available

2

MTD 710-0796

Truss Mach. Scr. #12 x 1.5" Lg.

$5.49

$

In Stock, only 1 left!

0

3

MTD 731-0817

Control Panel Half

$

$

Not available

4

MTD 731-0972

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

5

MTD 731-0524

Control Disc Pin

$

$

Not available

6

MTD 731-0816

Clutch Panel Half

$

$

Not available

7

MTD 720-0226

Grip
(Superseded to 720-0295)

$33.99

$

Usually ships in 3-6 days

0

8

MTD 749-0756

Upper Handle
(Superseded to 749-0756A)

$

$

Not available

10

MTD 710-0842B

Rope Guide Bolt

$

$

Not available

11

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

14

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

15

MTD 749-0372B

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, only 2 left!

0

16

MTD 714-0104

Hairpin Cotter

$4.49

$

In Stock, Qty 20+

0

17

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

18

MTD 731-1030

Rear Flap

$

$

Not available

19

MTD 706-10961

Handle Bracket Ass'y. R.H.

$

$

Not available

20

MTD 706-10960

Handle Bracket Ass'y. L-H

$

$

Not available

21

MTD 736-0356

Bell-Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

22

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

23

MTD 731-0982A

Hub Cap
(Superseded to 731-0982C)

$11.99

$

In Stock, Qty 18

0

24

MTD 741-0180

Ball Bearing
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

29

MTD 706-14739

20" Deck Ass'y.

$

$

Currently unavailable

30

MTD 753-0485

Blade Adapter Kit (Splined)

$46.99

$

Usually ships in 3-6 days

0

31

MTD 736-0453

Bell-Wash. .46" I.D.
(Superseded to 936-0453)

$3.49

$

Usually ships in 3-6 days

0

32

MTD 710-0757

Hex Bolt 7/16-20 x 1.5" Lg.

$9.99

$

In Stock, only 1 left!

0

33

MTD 742-0500

20" Mulching Blade
(Superseded to 942-0720)

$31.99

$

In Stock, only 1 left!

0

34

MTD 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$4.99

$

Usually ships in 3-6 days

0

35

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

36

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

39

Engine

$

$

Not available

40

MTD 777-5812

Throttle Label

$

$

Not available

44

MTD 735-0639

Spark Plug Boot

$

$

Not available

45

MTD 753-0430

Kit Control Housing Comp.

$

$

Not available

46

MTD 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

47

MTD 736-0105

Bell-Wash. .400" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

48

MTD 738-0507B

Shld. Bolt .50" Dia. x .357"

$4.49

$

In Stock, Qty 20+

0

49

MTD 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

50

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

51

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

52

MTD 734-1517A

Wheel Ass'y. Comp.
(Superseded to 734-1517B)

$68.99

$

Usually ships in 3-6 days

0

53

MTD 14578

Height Adj. Ass'y. Comp. R.F. & L.R.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Height Adj. Ass'y. Comp. L.F. & R.R.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

54

MTD 746-0642

Throttle Cable 51"
(Superseded to 946-0671A)

$14.99

$

In Stock, only 3 left!

0

55

MTD 746-0475A

Control Cable 35"

$

$

Not available

57

MTD 710-0654A

Hex L-Wash. Hd. Scr. 3/8-16 x 1.0" Lg.

$4.49

$

In Stock, Qty 20+

0

58

MTD 736-0232

Wave Washer .531" I.D.

$4.99

$

In Stock, Qty 12

0

59

MTD 710-0412

Hex Bolt 1/4-28 x .75" Lg. (Grade 5)

$5.99

$

In Stock, Qty 9

0

60

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

61

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0
