110-0891 - Toro Mounting Kit for DFS Vac Collection System for Z593 and Z595 Series Z Master MOUNTING AND DRIVE KIT DFS VAC COLLECTION SYSTEM ASSEMBLY NO. 110-0891 Parts Diagram

Mounting Kit for DFS Vac Collection System for Z593 and Z595 Series Z Master

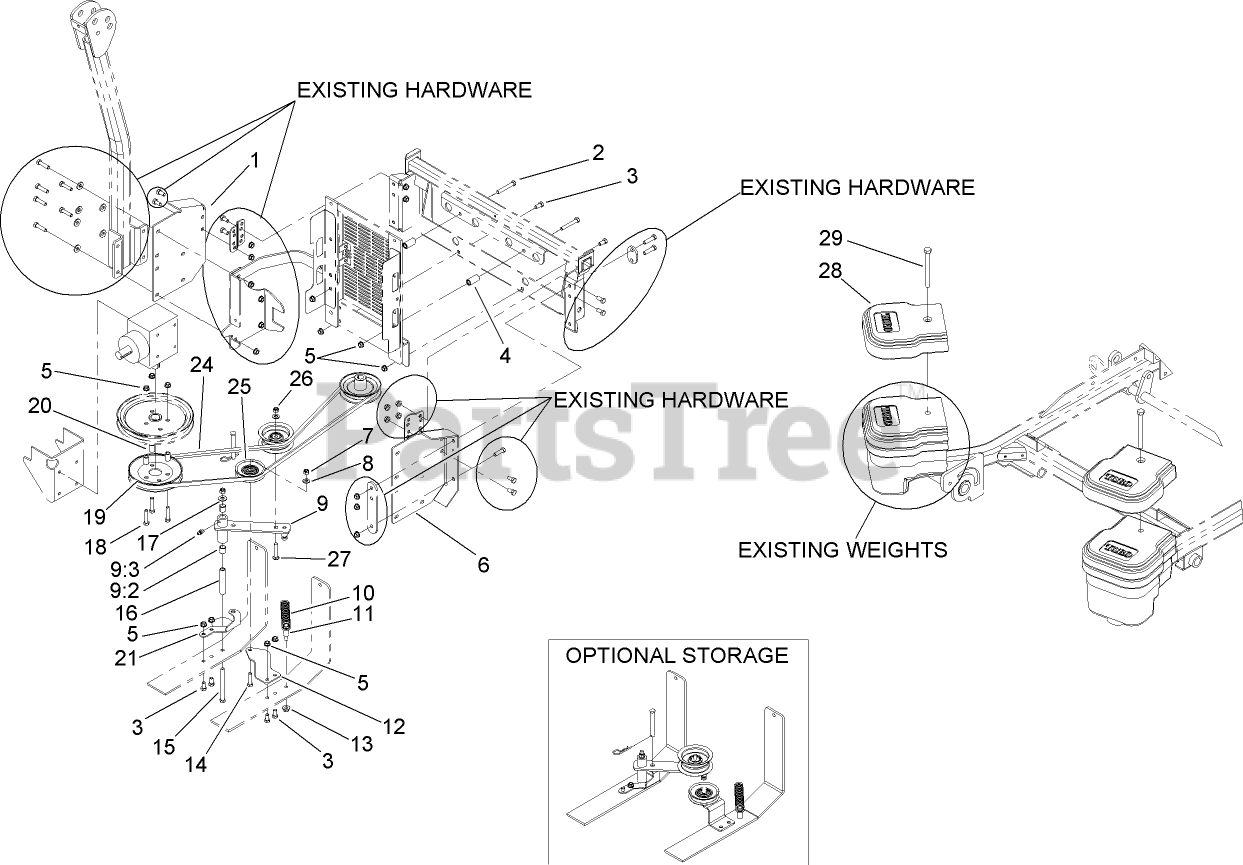

MOUNTING AND DRIVE KIT DFS VAC COLLECTION SYSTEM ASSEMBLY NO. 110-0891 Parts Diagram

  • Title

1

Toro 110-0886-03

BRACKET-MOUNT, BAGGER, RH

$244.99

$

Usually ships in 3-6 days

0

2

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 13

0

3

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

4

Toro 110-3726

SPACER

$22.99

$

Usually ships in 3-6 days

0

5

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

6

Toro 110-0885-03

BRACKET-MOUNT, BAGGER, LH

$244.99

$

Usually ships in 3-6 days

0

7

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 110-0884

IDLER ARM ASM

$152.99

$

Usually ships in 3-6 days

0

9:2

Toro 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

9:3

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

10

Toro 76-9430-03

SPRING-EXTENTION

$31.99

$

Usually ships in 3-6 days

0

11

Toro 110-3841

ANCHOR-SPRING

$144.99

$

Usually ships in 3-6 days

0

12

Toro 110-0855-03

BRACKET-MOUNT, PULLEY

$81.99

$

Usually ships in 3-6 days

0

13

Toro 32128-19

NUT-HF

$1.49

$

In Stock, Qty 20+

0

14

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

16

Toro 103-0040

BUSHING-TIGHTENER, PIVOT

$18.99

$

In Stock, only 4 left!

0

17

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

18

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 110-0896

PULLEY-A

$109.99

$

Usually ships in 3-6 days

0

20

Toro 110-3855

SPACER

$19.99

$

Usually ships in 3-6 days

0

21

Toro 112-2321-03

BRACKET-LOCK, IDLER ARM

$37.99

$

Usually ships in 3-6 days

0

24

Toro 110-0861

BELT-V

$98.99

$

Usually ships in 3-6 days

0

25

Toro 103-0983

SHEAVE

$61.99

$

In Stock, Qty 6

0

26

Toro 88-5630

PULLEY-IDLER, FLAT
(Superseded to 132-4717)

$22.99

$

In Stock, only 4 left!

0

27

Toro 3231-6

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

28

Toro 106-0870

Weight

$506.99

$

Usually ships in 3-6 days

0

29

Toro 325-19

SCREW-HH

$8.49

$

In Stock, only 4 left!

0
