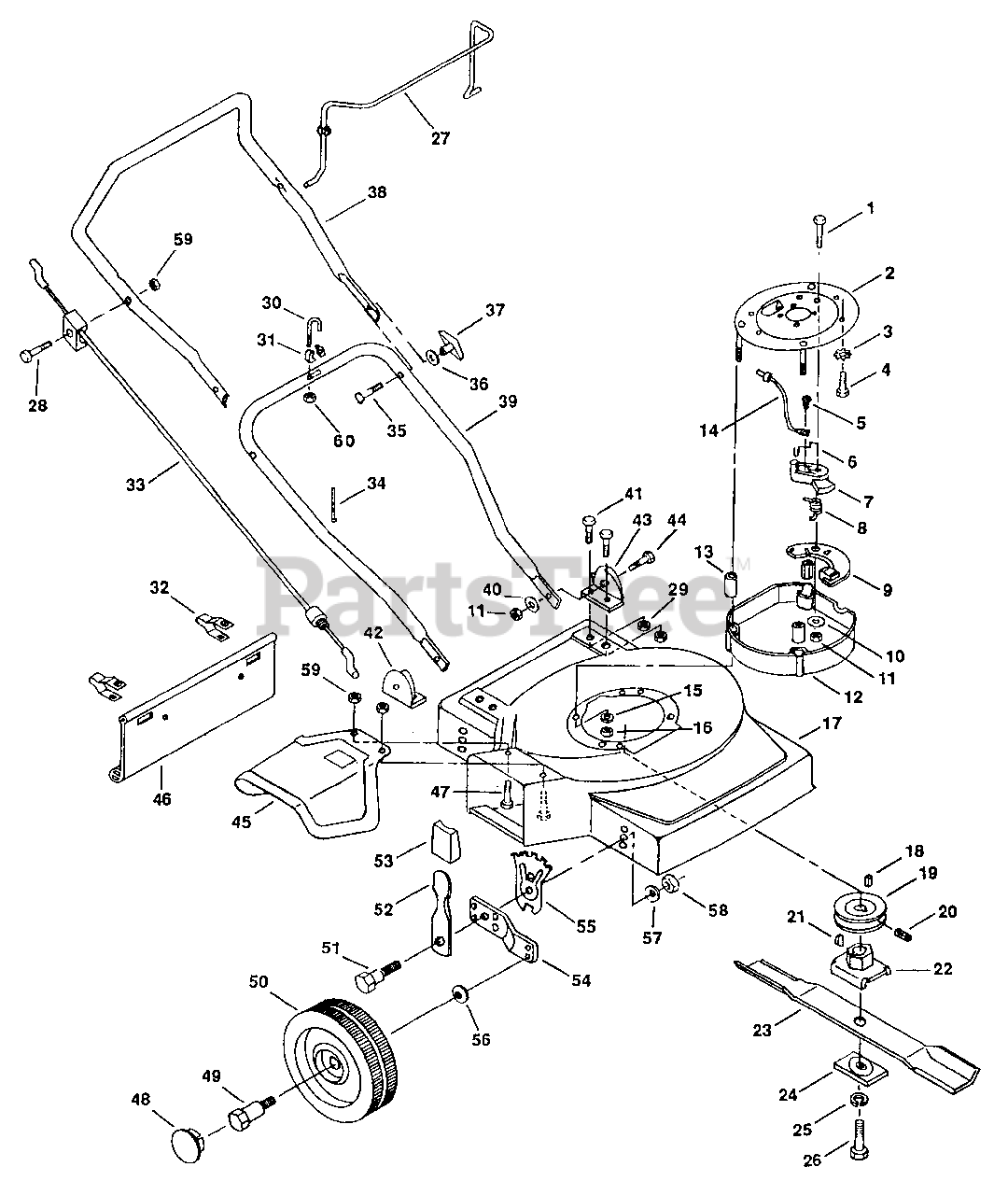

110-017R000 - MTD Walk-Behind Mower (1990) Parts Parts Diagram

Walk-Behind Mower

Parts Parts Diagram

  • Title

1

MTD 706-13897-28

Hex Bolt 3/8-16 x 1-3/4" Lg.
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

2

MTD 706-14499-00-90

Plate Assembly

$

$

Currently unavailable

3

MTD 706-11872-01

Int. L-Wash. 1/4" I.D.
(Superseded to 736-0498)

$4.49

$

Usually ships in 3-6 days

0

4

MTD 710-0258

Hex Bolt 1/4-20 x 5/8" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

5

MTD 706-11785-06

Screw #6-20 x 3/8 Tapping

$

$

Currently unavailable

6

MTD 706-13863-01

Contact-Brake Arm

$

$

Not available

7

MTD 706-13815-01

Housing-Brake Spring

$

$

Not available

8

MTD 706-13865-02

Spring-Brake Arm

$

$

Not available

9

MTD 706-13806-02

Brake Arm & Pad Assembly

$

$

Currently unavailable

10

MTD 706-15829

Fl-Wash. 3/8" I.D.
(Superseded to 936-0101)

$4.99

$

Usually ships in 3-6 days

0

11

MTD 712-0430

L-Nut 3/8-16 Thd.
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

12

MTD 706-10778-01

Spacer Ring

$

$

Not available

13

MTD 706-10777-01

Spacer

$

$

Currently unavailable

14

MTD 706-13915

Wire Assembly-Brake Arm

$

$

Currently unavailable

15

MTD 706-10005

Fl-Wash. 5/16" I.D.

$

$

Not available

16

MTD 712-0429

L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

17

MTD 706-14487-00-14

Deck Assembly-16" Steel

$

$

Currently unavailable

18

MTD 706-13988

Key-Square 5/32 x 1/2"

$

$

Not available

19

MTD 706-13856

Pulley-Brake

$

$

Not available

20

MTD 706-16118

Set Screw 5/16-18 x 3/8"

$

$

Currently unavailable

21

MTD 706-10004

Key-Woodruff #6

$

$

Not available

22

MTD 706-13807-01-05

Adapter Blade Mtg.

$

$

Not available

23

MTD 706-13813-00-08

Blade-16" Gas

$

$

Not available

24

MTD 706-10110-00-05

Plate-Blade Retainer

$

$

Not available

25

MTD 736-0217

L-Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 8

0

26

MTD 710-0152

Blade Bolt
(Superseded to 710-1039)

Note: (Special)

$4.49

$

In Stock, Qty 20+

0

27

MTD 706-13840-00-90

Control-Handle

$

$

Currently unavailable

28

MTD 706-10007-20-09

Hex Bolt 1/4-20 x 1-1/4" Lg.

$

$

Currently unavailable

29

MTD 712-0324

L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

30

MTD 747-0779

J-Bolt

Note: (Rope Guide)

$

$

Not available

31

MTD 706-10786

Rope Guide Half

$

$

Not available

32

MTD 17098

Clip-Trail Shield
(Superseded to 17098P)

$

$

Not available

33

MTD 706-13816

Control Cable-Brake

$

$

Not available

34

MTD 706-10065-01

Plastic Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

35

MTD 706-10072-32-09

Saddle Bolt 5/16-18 x 2
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

36

MTD 706-10057-01

Saddle Washer

$

$

Not available

37

MTD 706-10488

Knob Assembly
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

38

MTD 706-13831-01-91

Upper Handle

$

$

Currently unavailable

39

MTD 706-14486-01-91

Lower Handle

$

$

Not available

40

MTD 706-10067-01

Fl-Wash. 3/8" I.D.

$

$

Currently unavailable

41

MTD 706-10007-10-09

Hex Bolt 1/4-20 x 1/2" Lg.

$

$

Currently unavailable

42

MTD 706-10685-02-90

R.H. Handle Bracket

$

$

Not available

43

MTD 706-10684-02-90

L.H. Handle Bracket

$

$

Currently unavailable

44

MTD 710-0216

Hex Bolt 3/8-16 x 3/4" Lg.

$4.49

$

In Stock, Qty 15

0

45

MTD 706-15491-01-90

Safety Chute Guard

$

$

Not available

46

MTD 731-1027

Safety Trail Shield

$

$

Not available

47

MTD 710-0134

Carriage Bolt 1/4-20 x 3/4"

$4.49

$

In Stock, Qty 20+

0

48

MTD 706-15581-00-90

Hub Cap
(Superseded to 720-0258)

$

$

Not available

49

MTD 738-0102

Wheel Bolt

$9.99

$

In Stock, Qty 10

0

50

MTD 706-15533-09

Front Wheel-6"

$

$

Not available

MTD 706-15533-10

Rear Wheel-7"

$

$

Not available

51

MTD 738-0507B

Pivot Bolt-Adjuster

$4.49

$

In Stock, only 4 left!

0

52

MTD 732-0404

Lever-Adjuster
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

53

MTD 720-0190

Knob-Adjuster Lever
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

54

MTD 15262B

Pivot Arm-Adjuster

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

55

MTD 15261A

Plate-Height Adjuster
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

56

MTD 736-0105

Bell-Wash. 3/8" I.D. x 7/8" O.D.

$4.49

$

In Stock, Qty 20+

0

57

MTD 736-0356

Bell-Wash. 3/8" I.D. x 1.13" O.D.
(Superseded to 936-0356)

$

$

Not available

58

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

59

MTD 706-11909

Flange Lock Nut 1/4-20

$

$

Not available

60

MTD 706-10003-01

Keps Nut 1/4-20
(Superseded to 712-0271)

$4.49

$

In Stock, Qty 20+

0
