11-17KE01 (C-175) - Toro Lawn Tractor (1984) ELECTRICAL SYSTEM-SINGLE CYLINDER MODELS Parts Diagram

Lawn Tractor

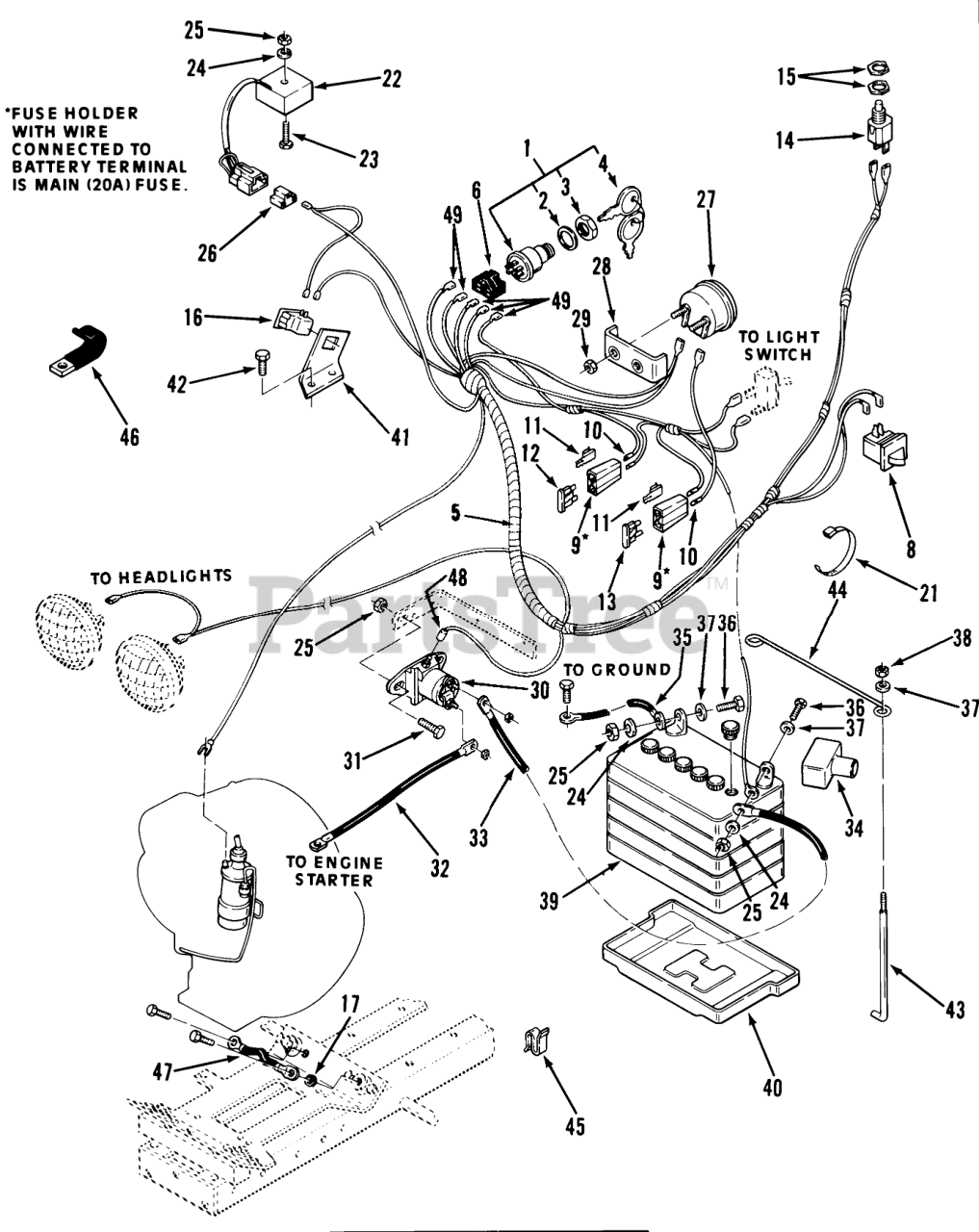

ELECTRICAL SYSTEM-SINGLE CYLINDER MODELS Parts Diagram

  • Title

1

Toro 103990

SWITCH-IGNITION

$28.99

$

In Stock, only 4 left!

0

2

Toro 920160

LOCKWASHER
(Superseded to 9201604)

$0.99

$

In Stock, only 3 left!

0

3

Toro 101884

NUT

$7.49

$

In Stock, only 1 left!

0

4

Toro 7262

Key-EL
(Superseded to 62-7770)

$4.99

$

In Stock, only 1 left!

0

5

Toro 110204

Wiring Harness

$

$

Not available

6

Toro 105302

CONNECTOR-5 WAY-SERV
(Superseded to 32160-014)

$5.99

$

In Stock, only 2 left!

0

8

Toro 103480

SWITCH INTERLOCK

$

$

Not available

9

Toro 109117

AUTO-FUSEBLOCK TERM

$

$

Not available

10

Toro 108995

TERMINAL-FUSE

$

$

Not available

11

Toro 109445

CLIP

$8.49

$

Usually ships in 3-6 days

0

12

Toro 109355

FUSE-BLADE, 15 AMP

$3.49

$

In Stock, only 1 left!

0

13

Toro 109102

FUSE-BLADE, 25 AMP

$5.99

$

In Stock, Qty 8

0

14

Toro 106268

SWITCH

$33.99

$

Usually ships in 3-6 days

0

15

Toro 8786

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

16

Toro 103480

SWITCH INTERLOCK

$

$

Not available

17

Toro 920122

LOCKWASHER

$

$

Not available

21

Toro 100571

PLASTIC TIE

$

$

Not available

22

Toro 109313

RECTIFIER

$250.99

$

Usually ships in 3-6 days

0

23

Toro 908007

Bolt 1/4-20 X 1 1/2
(Superseded to 321-9)

$4.99

$

Usually ships in 3-6 days

0

24

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, only 4 left!

0

25

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

26

Toro 105306

TERMINAL-TAB RCPT

$3.99

$

Usually ships in 3-6 days

0

27

Toro 102046

AMMETER W/CLAMP

$

$

Not available

28

Toro 102047

Clamp
(Superseded to 109604)

$

$

Not available

29

Toro 5924

HEX NUT 10-32 E.S.

$

$

Not available

30

Toro 109605

Solenoid
(Superseded to 110979)

$103.99

$

Usually ships in 3-6 days

0

31

Toro 960152

Screw
(Superseded to 3234-33)

$0.99

$

In Stock, Qty 10

0

32

Toro 100335

WIRE-GROUND

$25.99

$

Usually ships in 3-6 days

0

33

Toro 4432

Cable
(Superseded to 111074)

$27.99

$

Usually ships in 3-6 days

0

34

Toro 109553

Boot
(Superseded to 28-8080)

$23.99

$

Usually ships in 3-6 days

0

35

Toro 3660

Wire
(Superseded to 704057)

$

$

Not available

36

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

37

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

38

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

39

Toro 105842

Battery
(Superseded to 104-8162)

$

$

Not available

40

Toro 110298

TRAY BATTERY

$33.99

$

In Stock, only 1 left!

0

41

Toro 109508

BRACKET-SWITCH (NS)

$

$

Not available

42

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 5

0

43

Toro 109547

HOOK

$10.99

$

In Stock, only 2 left!

0

44

Toro 105504

ROD-HOLD DOWN

$23.99

$

In Stock, only 4 left!

0

45

Toro 3023

SPEED CLIP

$

$

Not available

46

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

47

Toro 100335

WIRE-GROUND

$25.99

$

Usually ships in 3-6 days

0

48

Toro 518246

Terminal Part of 5

$

$

Not available

49

Toro 102651

Terminal

$

$

Not available
