11-16K801 (C-165) - Toro Lawn Tractor (1984) WHEELS AND TIRES Parts Diagram

Lawn Tractor

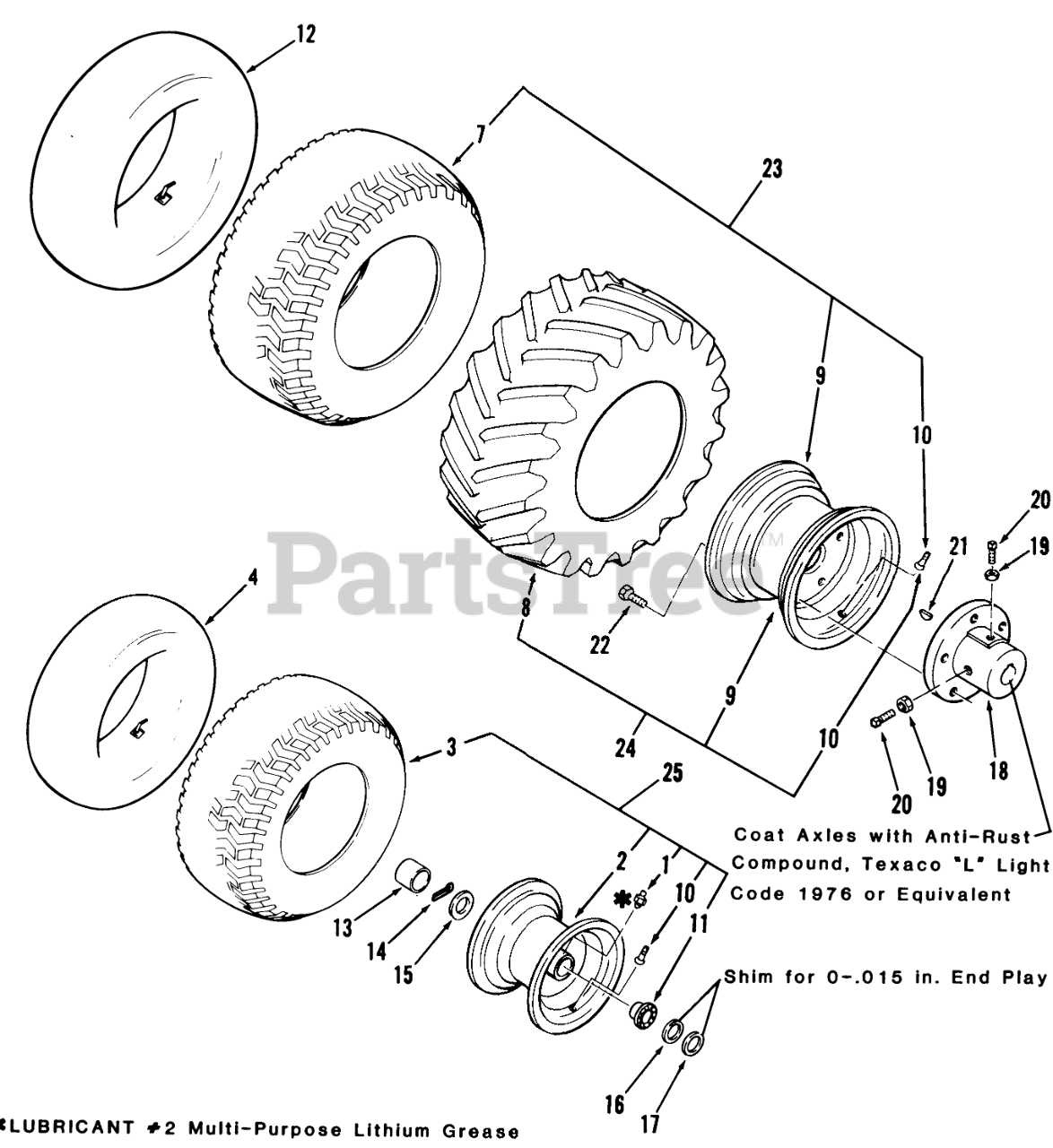

WHEELS AND TIRES Parts Diagram

  • Title
1

Toro 1030

Zerk

$

$

Not available

2

Toro 105882

Front Wheel (includes Item 1, 10, 11)

$

$

Not available

3

Toro 9792

TIRE TURF SAVER 16X6.50-8

$

$

Not available

4

Toro 105293

TUBE-INNER
(Superseded to 11-2819)

$

$

Not available

7

Toro 5434

Tire
(Superseded to 102786)

$

$

Not available

7

Toro 102786

TIRE 9.50 X 12

$

$

Not available

8

Toro 7607

Tire-Cleat, Rear
(Superseded to 110934)

$

$

Not available

9

Toro 5433

Wheel
(Superseded to 110677)

$

$

Not available

10

Toro 5108

VALVE

$6.99

$

In Stock, Qty 17

0

11

Toro 108483

Ball Bearing
(Superseded to 110513)

$21.99

$

In Stock, only 4 left!

0

12

Toro 7007

TUBE-INNER
(Superseded to 231-90)

$110.99

$

Usually ships in 3-6 days

0

13

Toro 109154

HUB CAP-FLAT BLACK

$

$

Not available

14

Toro 932026

COTTER PIN-4

$0.99

$

In Stock, Qty 13

0

15

Toro 109114

WASHER-WHEEL

$3.49

$

In Stock, only 2 left!

0

16

Toro 1278

WASHER

$2.99

$

In Stock, Qty 5

0

17

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 16

0

18

Toro 105763

Hub Rear
(Superseded to 105763-03)

$165.99

$

Usually ships in 3-6 days

0

19

Toro 915236

Nut
(Superseded to 9152366)

$3.49

$

In Stock, only 1 left!

0

20

Toro 909554

Screw-Set
(Superseded to 3243-5)

$2.99

$

In Stock, Qty 13

0

21

Toro 937108

KEY-WOODRUFF

$4.99

$

In Stock, only 3 left!

0

22

Toro 1004

Lug Nut

$

$

Not available

23

Toro 5432

Wheel and Tire

$

$

Not available

23

Toro 102785

Engine

$

$

Not available

24

Toro 106688

Right Rear Wheel and Tire Assy-Cleat
(Superseded to 110933)

$

$

Not available

24

Toro 106689

Left Rear Wheel and Tire Assy-Cleat
(Superseded to 110934)

$

$

Not available

25

Toro 105881

ASSY-WHEEL & TIRE

$

$

Not available

7

Toro 109471

Rear Tire 23 x 10.50-12 GT-1800 Only

$

$

Not available

9

Toro 109963

WHEEL

$354.99

$

Usually ships in 3-6 days

0

23

Toro 109962

Rear Wheel and Tire Assembly-Turf Twin Only

$

$

Not available
