11-10K802 (C-105) - Toro Lawn Tractor (1984) TWIN CYLINDER ENGINE Parts Diagram

Lawn Tractor

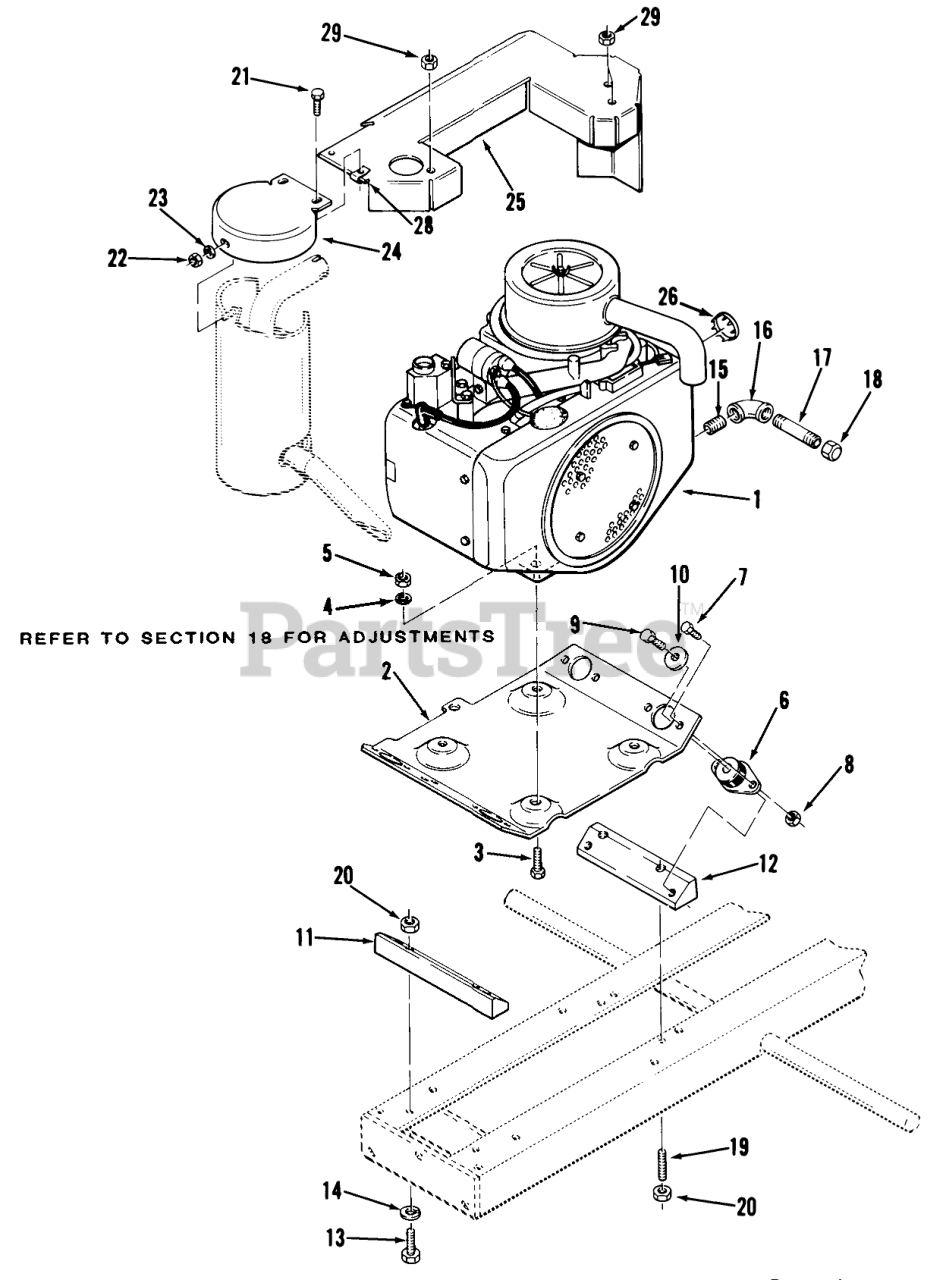

TWIN CYLINDER ENGINE Parts Diagram

  • Title

1

Toro 110089

Engine 17 HP Kohler KT-17S Spec 24223

$

$

Currently unavailable

2

Toro 108914

PLATE

$182.99

$

Usually ships in 3-6 days

0

3

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

4

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

5

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

6

Toro 108309

MOUNT-ISOLATION

$63.99

$

Usually ships in 3-6 days

0

7

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

8

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

9

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

10

Toro 920249

Washer
(Superseded to 9202494)

$5.99

$

In Stock, only 2 left!

0

11

Toro 106504

Engine Mounting Block-Front

$

$

Not available

12

Toro 106503

MOUNT BLOCK-REAR

$

$

Not available

13

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

14

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

15

Toro 943322

Nipple 3/8

$

$

Not available

16

Toro 943023

Elbow 3/8

$

$

Not available

17

Toro 943334

Nipple 3/8 x 4 1/2

$

$

Not available

18

Toro 5224

Cap
(Superseded to 288-4)

$23.99

$

In Stock, only 1 left!

0

19

Toro 909885

SET SRW 3/8X16-1 3/4

$

$

Not available

20

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

21

Toro 960152

Screw
(Superseded to 3234-33)

$0.99

$

In Stock, Qty 10

0

22

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

23

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

24

Toro 106864

CAP-MUFFLER SHIELD

$

$

Not available

25

Toro 110079

ASSY HEAT SHIELD

$

$

Not available

26

Toro 935103

Plug Button

$

$

Not available

28

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

29

Toro 960010

Flanged Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0
