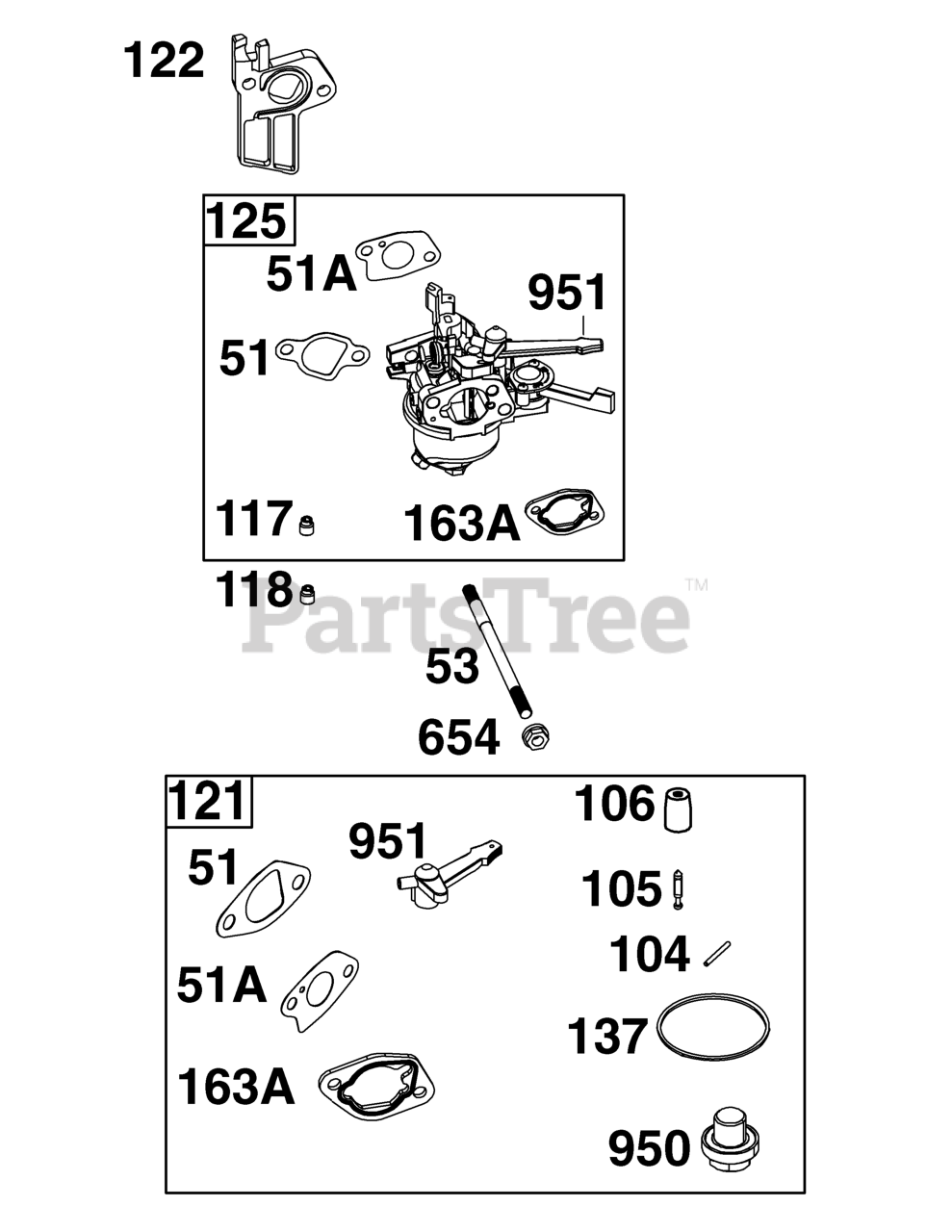

10U232-0021-01 - Briggs & Stratton Horizontal Engine Carburetor Group Parts Diagram

Horizontal Engine

Carburetor Group Parts Diagram

  • Title

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

53

Briggs & Stratton 797278

STUD

Note: (Carburetor)

$7.99

$

Usually ships in 2-12 days

0

104

PIN, Float Hinge

Note: (Not Available Individually)

$

$

Not available

105

VALVE, Float Needle

Note: (Not Available Individually)

$

$

Not available

106

SEAT, Inlet

Note: (Not Available Individually)

$

$

Not available

117

Briggs & Stratton 595720

JET, Main

Note: (Standard)

$16.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 595713

JET, Main

Note: (High Altitude)

$15.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 594133

KIT, Carburetor Overhaul

Note: (Service Kits may include extra parts not specific to this engine.)

$20.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 595722

SPACER, Carburetor

$5.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 594131

CARBURETOR

$53.99

$

Usually ships in 2-12 days

0

137

GASKET, Float Bowl

Note: (Not Available Individually)

$

$

Not available

163A

Briggs & Stratton 797282

GASKET, Air Cleaner

$6.49

$

In Stock, Qty 20+

0

654

Briggs & Stratton 690939

NUT

Note: (Carburetor)

$3.49

$

In Stock, Qty 8

0

950

SCREW, Float Bowl

Note: (Not Available Individually)

$

$

Not available

951

LEVER, Choke

Note: (Not Available Individually)

$

$

Not available
