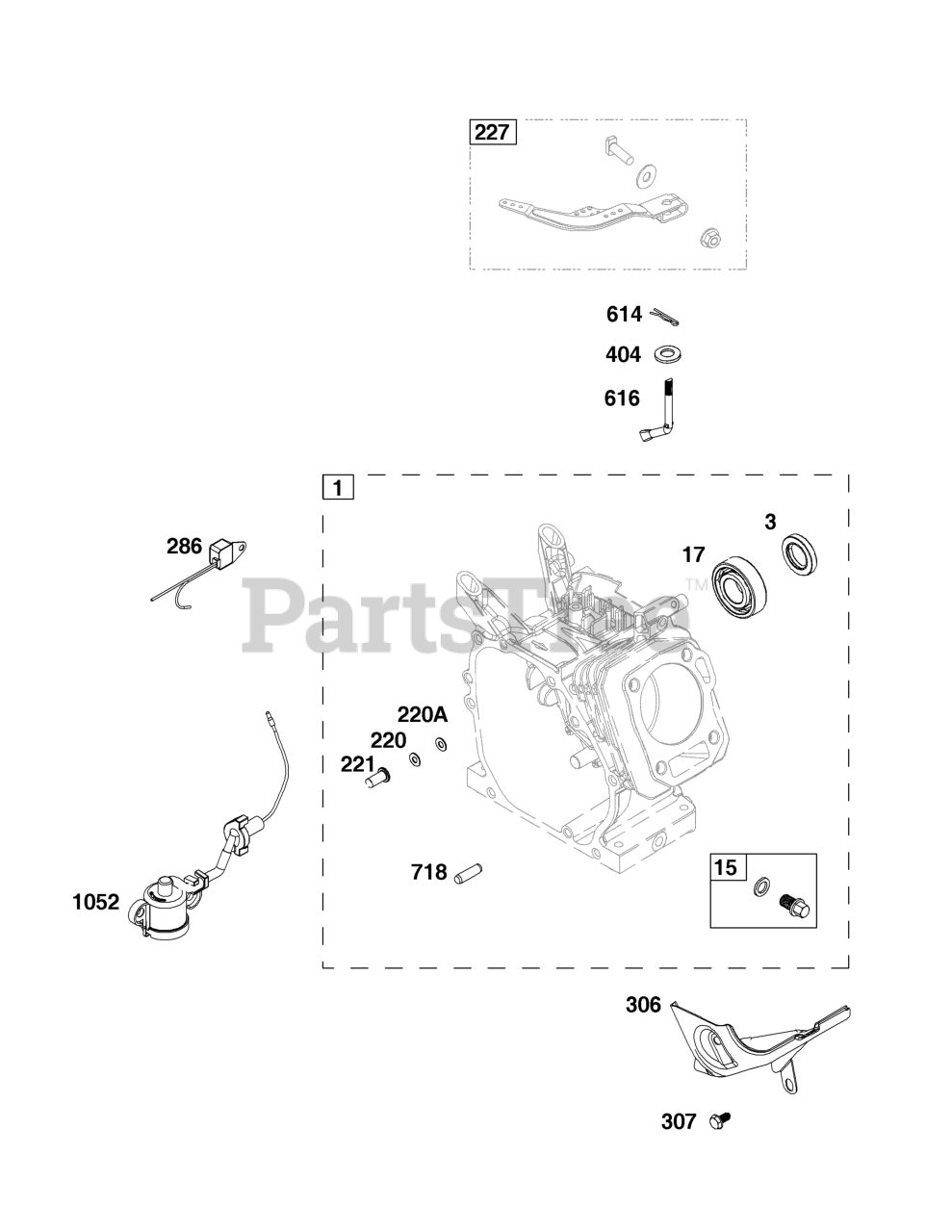

10R232-0014-H1 - Briggs & Stratton Horizontal Engine Cylinder Group Parts Diagram

Horizontal Engine

Cylinder Group Parts Diagram

  • Title

1

CYLINDER ASSEMBLY

Note: (Currently Not Available)

$

$

Not available

3

Briggs & Stratton 590712

SEAL, Oil

Note: (Magneto Side)

$12.99

$

In Stock, only 2 left!

0

15

Briggs & Stratton 590678

PLUG, Oil Drain

$5.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 590715

BEARING, Ball

Note: (Cylinder)

$13.99

$

In Stock, only 1 left!

0

220

Briggs & Stratton 590677

WASHER

Note: (Governor Gear)

$3.49

$

Usually ships in 2-12 days

0

220A

Briggs & Stratton 590675

WASHER

Note: (Governor Gear)

$3.99

$

Usually ships in 2-12 days

0

221

Briggs & Stratton 590676

CUP, Governor

$8.99

$

Usually ships in 2-12 days

0

227

LEVER, Governor Control

Note: (Part information located in Controls Group.)

$

$

Not available

286

Briggs & Stratton 594949

MODULE-OIL SENSOR

$43.99

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 590636

SHIELD, Cylinder

$21.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 590683

SCREW

Note: (Cylinder Shield)

$3.99

$

In Stock, Qty 20+

0

404

Briggs & Stratton 590669

WASHER

Note: (Governor Crank)

$3.49

$

In Stock, only 3 left!

0

614

Briggs & Stratton 590670

PIN, Cotter

$3.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 590668

CRANK, Governor

$13.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 590637

PIN, Locating

$6.99

$

Usually ships in 2-12 days

0

1052

Briggs & Stratton 594950

Sensor-Oil

$26.99

$

Usually ships in 2-12 days
