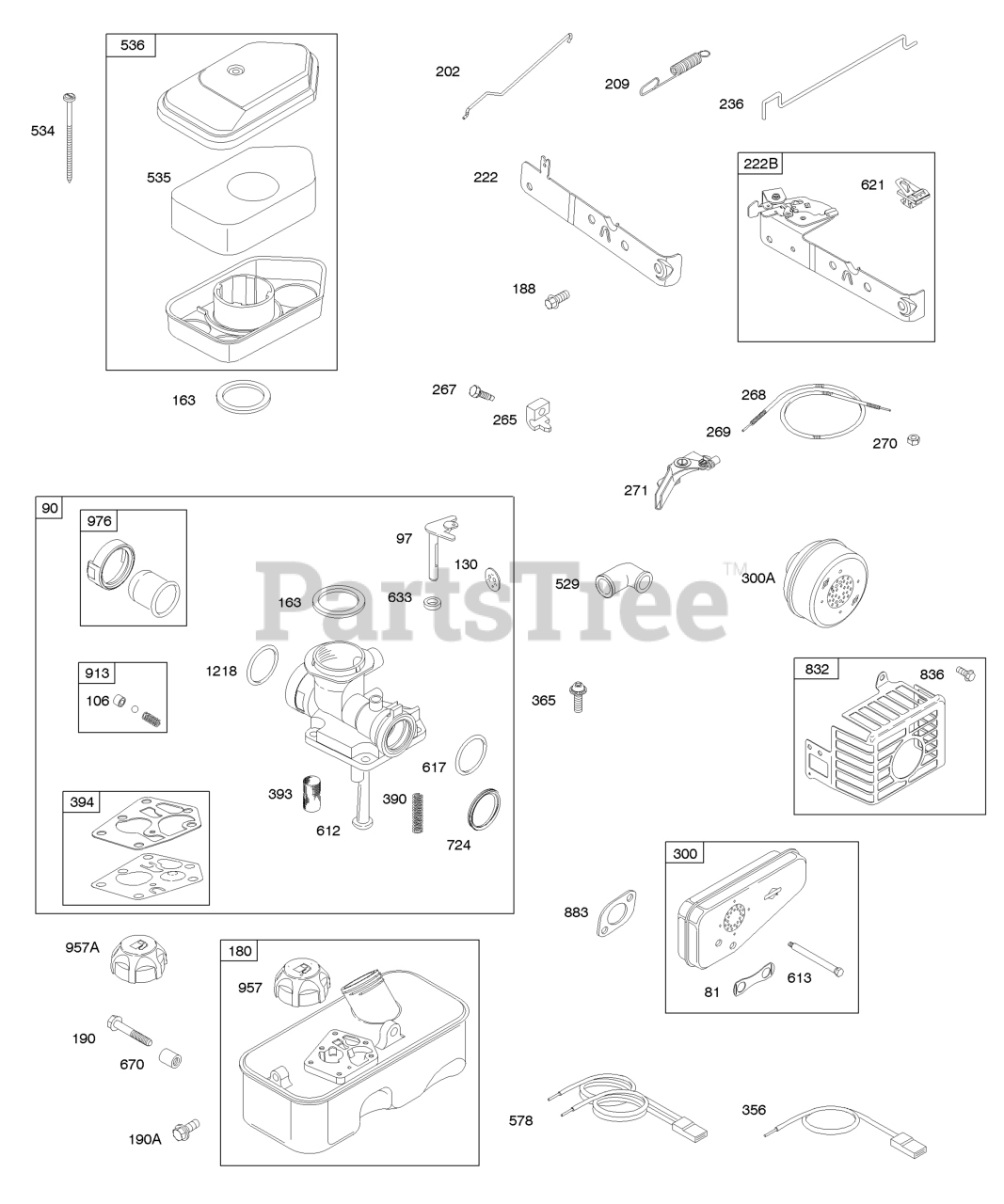

10N902-0018-E1 - Briggs & Stratton Vertical Engine Air Cleaner, Carburetor, Controls, Fuel Supply, Governor Spring, Exhaust System, Ignition Parts Diagram

Vertical Engine

Air Cleaner, Carburetor, Controls, Fuel Supply, Governor Spring, Exhaust System, Ignition Parts Diagram

  • Title

81

Briggs & Stratton 691179

Lock-Muffler Screw

$5.99

$

In Stock, only 1 left!

0

90

Briggs & Stratton 790206

Carburetor
(Superseded to 795475)

$47.99

$

In Stock, only 1 left!

0

97

Briggs & Stratton 697414

Shaft-Throttle

$15.99

$

Usually ships in 2-12 days

0

106

Briggs & Stratton 691901

Seat-Inlet

$8.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 691190

Valve-Throttle

$7.49

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 271139S

Gasket-Air Cleaner

$3.99

$

In Stock, Qty 20+

0

180

Briggs & Stratton 494406

Tank-Fuel

Note: (Metal)

$79.99

$

In Stock, only 4 left!

0

188

Briggs & Stratton 692198

Screw

Note: (Control Bracket)

$5.99

$

In Stock, Qty 11

0

190

Briggs & Stratton 691640

Screw

Note: (Fuel Tank) (1 3/4" Long)

$3.49

$

In Stock, Qty 12

0

190A

Briggs & Stratton 691108

SCREW

Note: (Fuel Tank) (9/16" Long)

$3.49

$

In Stock, Qty 20+

0

202

Briggs & Stratton 698835

Link-Mechanical Governor

$8.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 698719

Spring-Governor

Note: (Light Blue)

$

$

Not available

222B

Briggs & Stratton 699326

Bracket-Control

$41.99

$

Usually ships in 2-12 days

0

236

Briggs & Stratton 691867

Link-Lockout
(Superseded to 591292)

$8.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 690798

Clamp-Casing

$5.49

$

In Stock, only 1 left!

0

267

Briggs & Stratton 691044

SCREW

Note: (Casing Clamp)

$3.99

$

In Stock, only 4 left!

0

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (72" Long)(Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (78" Long)(Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

300

Briggs & Stratton 692307

Muffler

$36.99

$

Usually ships in 2-12 days

0

356

Briggs & Stratton 692390

Wire-Stop

$

$

Not available

365

Briggs & Stratton 790029

Screw

Note: (Carburetor)

$3.99

$

In Stock, only 2 left!

0

390

Briggs & Stratton 691839

Spring-Choke Diaphragm

$5.99

$

In Stock, Qty 5

0

393

Briggs & Stratton 691837

Screen-Carburetor

$7.49

$

In Stock, only 3 left!

0

394

Briggs & Stratton 795083

Diaphragm-Carburetor

$4.49

$

In Stock, Qty 20+

0

529

Briggs & Stratton 692189

Grommet

$4.49

$

In Stock, Qty 13

0

534

Briggs & Stratton 691417

Screw

Note: (Air Cleaner)

$5.99

$

In Stock, only 3 left!

0

535

Briggs & Stratton 698369

Filter-Air Cleaner Foam

$5.99

$

In Stock, Qty 10

0

536

Briggs & Stratton 698472

Cleaner-Air

$

$

Not available

578

Briggs & Stratton 398153

Wire Assembly

$21.99

$

Usually ships in 2-12 days

0

612

Briggs & Stratton 496046S

Tube-Pick Up

$8.99

$

In Stock, only 1 left!

0

613

Briggs & Stratton 691413

Screw

Note: (Muffler)

$5.99

$

Usually ships in 2-12 days

0

617

Briggs & Stratton 270344S

Seal-O Ring

Note: (Intake Manifold)

$3.49

$

In Stock, Qty 20+

0

621

Briggs & Stratton 692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

633

Briggs & Stratton 691321

Seal-Choke/Thr Shaft

Note: (Throttle)

$4.99

$

Usually ships in 2-12 days

0

670

Briggs & Stratton 691633

Spacer-Fuel Tank

$4.99

$

In Stock, only 2 left!

0

724

Briggs & Stratton 697478

Retainer-Seal

$4.99

$

In Stock, Qty 19

0

883

Briggs & Stratton 691880

Gasket-Exhaust

$5.49

$

In Stock, Qty 5

0

913

Briggs & Stratton 494409

Seat-Check Valve

$

$

Not available

957A

Briggs & Stratton 791129

Cap-Fuel Tank

Note: (Plastic)

$10.99

$

Usually ships in 2-12 days

0

976

Briggs & Stratton 694394

Primer-Carburetor

$4.49

$

In Stock, Qty 12

0

1218

Briggs & Stratton 695866

Seal-O Ring

Note: (Carburetor)

$

$

Not available
