10M4 (ST 424) - Ariens 24" Sno-Thro Snow Blower, 4hp Tecumseh (SN: 012101 & Above) TRACTOR PARTS Parts Diagram

24" Sno-Thro Snow Blower, 4hp Tecumseh

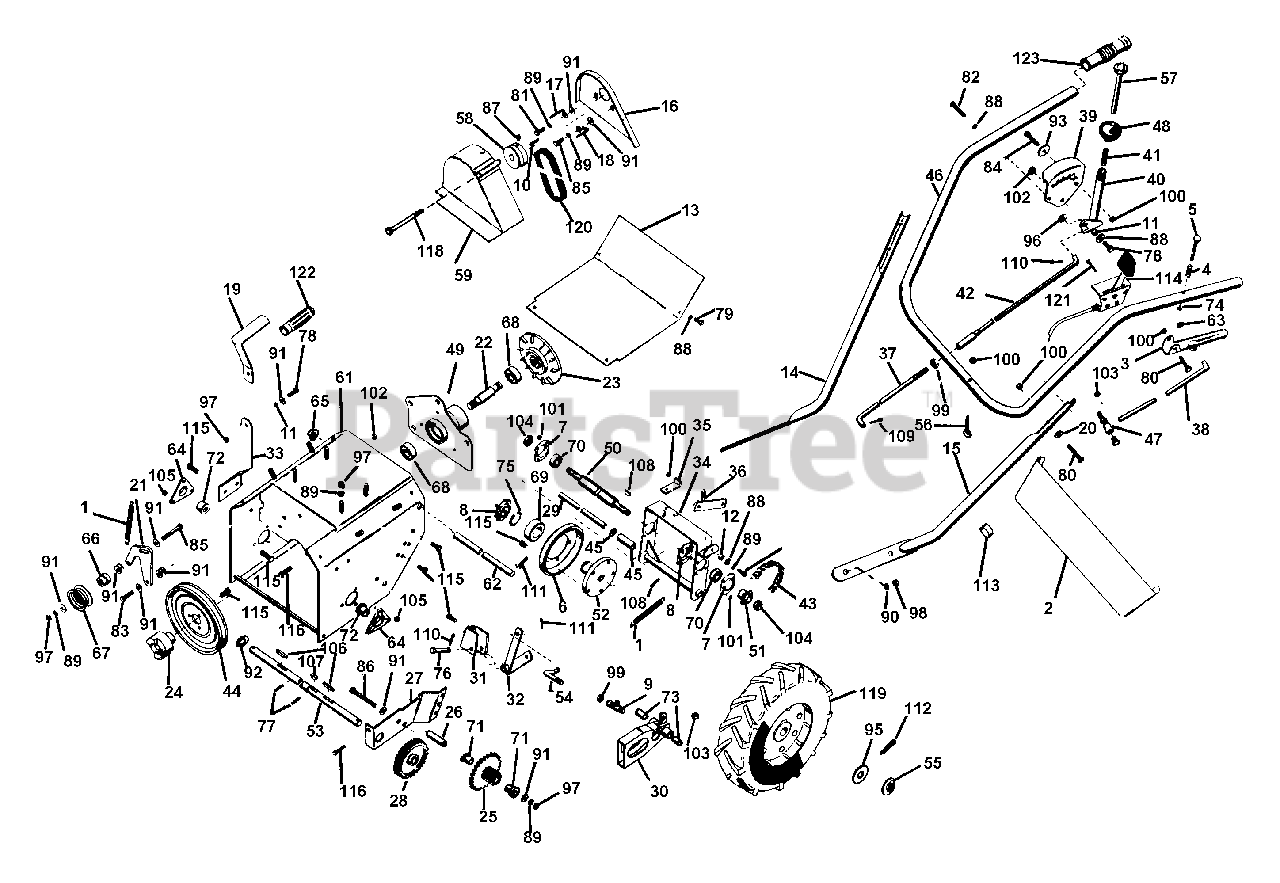

TRACTOR PARTS Parts Diagram

  • Title

1

Ariens 00102700

SPRING
(Superseded to 08300400)

$20.99

$

In Stock, Qty 6

0

2

Ariens 00203300

HANDLE BAR PANEL
(Superseded to 50203400)

$

$

Not available

3

Ariens 00203800

CLUTCH HANDLE
(Superseded to 00203851)

$39.99

$

Usually ships in 4-12 days

0

4

Ariens 08301500

SG-COMP ??X.44X?? WLD 10

$5.99

$

Usually ships in 4-12 days

0

5

Ariens 00204500

CLUTCH LOCK PIN

$

$

Not available

6

Ariens 00300300

FRICTION DISC
(Superseded to 09475300)

$35.99

$

In Stock, Qty 20+

0

7

Ariens 00303100

BEARING FLANGE
(Superseded to 02414100)

$18.99

$

In Stock, only 1 left!

0

8

Ariens 00308500

BEARING FLANGE

$22.99

$

In Stock, only 1 left!

0

9

Ariens 00308600

BALL JOINT
(Superseded to 04110300)

$15.99

$

Usually ships in 4-12 days

0

10

Ariens 00500600

KEY

$

$

Not available

11

Ariens 00607100

SPACER BUSHING .5 X .32 X .21

$14.99

$

Usually ships in 4-12 days

0

12

Ariens 01035800

SPACER BUSHING .5 X .32 X .163

$5.99

$

Usually ships in 4-12 days

0

13

Ariens 01014700

BOTTOM COV

$65.99

$

Usually ships in 4-12 days

0

14

Ariens 01015600

R H LOWER HANDLE BAR

Note: (Painted)

$135.99

$

Usually ships in 4-12 days

0

15

Ariens 01015700

L H LOWER HANDLE BAR

Note: (Painted)

$

$

Not available

16

Ariens 01015900

INNER BELT GUARD

$

$

Not available

17

Ariens 01016000

R H BELT FINGER

$

$

Not available

18

Ariens 01016100

L H BELT FINGER

$64.99

$

Usually ships in 4-12 days

0

19

Ariens 01019400

CLTCH LEVER

$

$

Not available

20

Ariens 01019600

HANDLE BAR WASHER

$

$

Not available

21

Ariens 01020200

IDLER ARM

$

$

Not available

22

Ariens 01020400

SPINDLE

$81.99

$

Usually ships in 4-12 days

0

23

Ariens 01020500

DRIVE PLATE
(Superseded to 01054600)

$163.99

$

Usually ships in 4-12 days

0

24

Ariens 01020600

JAW COUPLING

$190.99

$

In Stock, only 1 left!

0

25

Ariens 01020700

PINION & SPROCKET
(Superseded to 52400200)

$105.99

$

Usually ships in 4-12 days

0

26

Ariens 01020800

PINION STUB SHAFT

$232.99

$

Usually ships in 4-12 days

0

27

Ariens 01020900

SUPPORT BRACKET
(Superseded to 01046200)

$129.99

$

Usually ships in 4-12 days

0

28

Ariens 01021100

SPUR GEAR, FELLOWS 35T .750 ID

$90.99

$

Usually ships in 4-12 days

0

29

Ariens 01021200

BRACKET PIN

$44.99

$

Usually ships in 4-12 days

0

30

Ariens 01021300

SLIDING FORK

$

$

Not available

31

Ariens 01021500

LEVER BRACKET

$

$

Not available

32

Ariens 01021700

TRANSFER LEVER
(Superseded to 01047600)

$

$

Not available

33

Ariens 01022000

CLTCH BRCKT

$

$

Not available

34

Ariens 01022200

DISC BRCKT

$6.99

$

Usually ships in 4-12 days

0

35

Ariens 01022600

NEUTRAL CATCH

$

$

Not available

36

Ariens 01022700

THROWOUT LEVER

$

$

Not available

37

Ariens 01022800

LOWER SHIFT ROD
(Superseded to 02424700)

$77.99

$

In Stock, only 1 left!

0

38

Ariens 01023000

CLTCH ROD

$30.99

$

Usually ships in 4-12 days

0

39

Ariens 01023100

SHIFT QUADRANT

$

$

Not available

40

Ariens 01023200

SHIFT HANDLE

$

$

Not available

41

Ariens 01023300

SPRING
(Superseded to 08301500)

$5.99

$

Usually ships in 4-12 days

0

42

Ariens 01023500

SHIFT ROD

$

$

Not available

43

Ariens 01023700

ROLLER CHAIN

$35.99

$

Usually ships in 4-12 days

0

44

Ariens 01023900

SHEAVE

$

$

Not available

45

Ariens 01024000

SPACER

$

$

Not available

46

Ariens 01024100

UPPER HANDLE BAR
(Superseded to 01035700)

Note: (Painted)

$

$

Not available

47

Ariens 01024700

BALL JOINT

$

$

Not available

48

Ariens 01024800

SHIFT BALL

$

$

Not available

49

Ariens 01026700

BEARING HOUSING

$232.99

$

Usually ships in 4-12 days

0

50

Ariens 01027500

HEX SHAFT

$40.99

$

In Stock, only 1 left!

0

51

Ariens 01027600

9 TOOTH SPROCKET

$41.99

$

Usually ships in 4-12 days

0

52

Ariens 01027700

FRICTION DISC HUB
(Superseded to 01218300)

$

$

Not available

53

Ariens 01027900

AXLE SHAFT

$119.99

$

Usually ships in 4-12 days

0

54

Ariens 01028500

CONNECTING LINK

$

$

Not available

55

Ariens 01028800

HUB CAP

$

$

Not available

56

Ariens 01028900

ROD HANGER EYEBOLT
(Superseded to 00247500)

$9.99

$

Usually ships in 4-12 days

0

57

Ariens 01029300

SHIFT RELEASE HANDLE

$

$

Not available

58

Ariens 01029400

ENGINE SHEAVE

$

$

Not available

59

Ariens 01030000

OUTER BELT GUARD
(Superseded to 51003300)

$67.99

$

In Stock, only 1 left!

0

60

Ariens 01036400

CARB COV

$

$

Not available

61

Ariens 01036700

TRACTOR FRAME

$

$

Not available

62

Ariens 01036800

FORK SHFT

$

$

Not available

63

Ariens 01037600

RATCHET PLATE

$

$

Not available

64

Ariens 01202300

SUPPORT, BEARING

$67.99

$

In Stock, only 4 left!

0

65

Ariens 01208600

CAP, .50 ROD YWZC

$2.99

$

Usually ships in 4-12 days

0

66

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.49

$

In Stock, only 4 left!

0

67

Ariens 01213200

IDLER
(Superseded to 52007000)

$39.99

$

In Stock, Qty 20+

0

68

Ariens 05406300

BRG-BALL .750X1.750X.50

$25.99

$

In Stock, Qty 20+

0

69

Ariens 05408300

BRG-BALL 1.25X2.18X.63

$

$

Not available

70

Ariens 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, Qty 20+

0

71

Ariens 05502600

BSHG-FLG .625X.750X.500X.875BR
(Superseded to 05500111)

$1.49

$

In Stock, Qty 20+

0

72

Ariens 05503900

BSHG-FLG .750X1.000X.625X1.250

$12.99

$

In Stock, Qty 7

0

73

Ariens 05504000

BSHG-SLV .500X.625X.500 BR

$13.99

$

In Stock, only 2 left!

0

74

Ariens 05703700

RG-RTNG-EXT .250X.031

$6.99

$

Usually ships in 4-12 days

0

75

Ariens 05704300

RG-RTNG-EXT 1.250X.050

$3.99

$

In Stock, only 3 left!

0

76

Ariens 01014400

CLEVIS PIN
(Superseded to 03105100)

$

$

Not available

77

Ariens 05800700

PIN-ROLL .250X1.25

$0.99

$

In Stock, Qty 20+

0

78

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$

$

Not available

79

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$

$

Not available

80

Ariens 05900500

BLT-HEX .38-16X1.25 PL GR 2
(Superseded to 05958000)

$1.49

$

In Stock, Qty 20+

0

81

Ariens 05900500

BLT-HEX .38-16X1.25 PL GR 2
(Superseded to 05958000)

$1.49

$

In Stock, Qty 20+

0

82

Ariens 05900500

BLT-HEX .38-16X1.25 PL GR 2
(Superseded to 05958000)

$1.49

$

In Stock, Qty 20+

0

83

Ariens 05900600

BLT-HEX .38-16X1.50 PL GR2
(Superseded to 05957900)

$1.49

$

In Stock, Qty 14

0

84

Ariens 05900700

BLT-HEX .44-14X1.25 PL GR2
(Superseded to 05963800)

$2.99

$

Usually ships in 4-12 days

0

85

Ariens 05900700

BLT-HEX .44-14X1.25 PL GR2
(Superseded to 05963800)

$2.99

$

Usually ships in 4-12 days

0

86

Ariens 05900700

BLT-HEX .44-14X1.25 PL GR2
(Superseded to 05963800)

$2.99

$

Usually ships in 4-12 days

0

87

Ariens 06000100

SCR-SET .38-16X.50 SKHCUP OH

$

$

Not available

88

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$

$

Not available

89

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

90

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 1 left!

0

91

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

92

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

93

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

94

Ariens 05403800

BRG-NEEDLE .625X.812X.50

$23.99

$

Usually ships in 4-12 days

0

95

Ariens 06404200

WSHR-FL-STL .755X2.000X.125
(Superseded to 06444800)

$4.99

$

Usually ships in 4-12 days

0

96

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

97

Ariens 06500100

NUT-JAM .375-16 PL
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

98

Ariens 06500100

NUT-JAM .375-16 PL
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

99

Ariens 06503100

NUT-HEX .312-24 PL
(Superseded to 06529500)

$1.99

$

Usually ships in 4-12 days

0

100

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

101

Ariens 06504100

NUT-LK TOP 10-24 PL

$1.99

$

Usually ships in 4-12 days

0

102

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

103

Ariens 06504300

NUT-LK-CTR .312-24 PL
(Superseded to 06537000)

$

$

Not available

104

Ariens 06505400

NUT-LK-CTR .50-20 PL
(Superseded to 06530000)

$2.49

$

Usually ships in 4-12 days

0

105

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 20+

0

106

Ariens 06600100

KEY-WDRF .188X.875X.375 SAE11

$2.99

$

In Stock, Qty 10

0

107

Ariens 06600100

KEY-WDRF .188X.875X.375 SAE11

$2.99

$

In Stock, Qty 10

0

108

Ariens 06600100

KEY-WDRF .188X.875X.375 SAE11

$2.99

$

In Stock, Qty 10

0

109

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

110

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

111

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

112

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

113

Ariens 06900100

THROTTLE CONTROL

$

$

Not available

114

Ariens 06903200

THROTTLE CONTROL

$

$

Not available

115

Ariens 07000900

BLT-SERHFWH .31-18X.50 PL

$2.99

$

Usually ships in 4-12 days

0

116

Ariens 07001000

BLT-SCRHFWH .38-16X.50 PL

$3.99

$

Usually ships in 4-12 days

0

117

Ariens 07001100

SCR-SLTR-SERNK .25-20X.62 PL
(Superseded to 07028600)

$3.99

$

In Stock, Qty 20+

0

118

Ariens 07001300

BLT-HFWH .31-24X3.62 PL

$

$

Not available

119

Ariens 07106200

WHL

$

$

Not available

120

Ariens 07208900

V-BELT, 4L-WRAPPED

$

$

Not available

121

Ariens 07400100

SCR-TAP 10-12X.50 CRPH PL A

$

$

Not available

122

Ariens 07500500

GRIP

$

$

Not available

123

Ariens 07500600

GRIP
(Superseded to 07500113)

$

$

Not available

124

Ariens 07802800

DISCHARGE CAUTION LABEL
(Superseded to 07729600)

$25.99

$

Usually ships in 4-12 days

0

125

Ariens 07802800

DISCHARGE CAUTION LABEL
(Superseded to 07729600)

$25.99

$

Usually ships in 4-12 days

0

126

Ariens 07802800

DISCHARGE CAUTION LABEL
(Superseded to 07729600)

$25.99

$

Usually ships in 4-12 days

0

127

Ariens 07802800

DISCHARGE CAUTION LABEL
(Superseded to 07729600)

$25.99

$

Usually ships in 4-12 days

0

128

Ariens 07800300

MOWER IN-OUT LABEL

$

$

Not available
