10K902-0111-E1 - Briggs & Stratton Vertical Engine Carburetor, Controls, Fuel Supply, Governor Spring, Ignition Parts Diagram

Vertical Engine

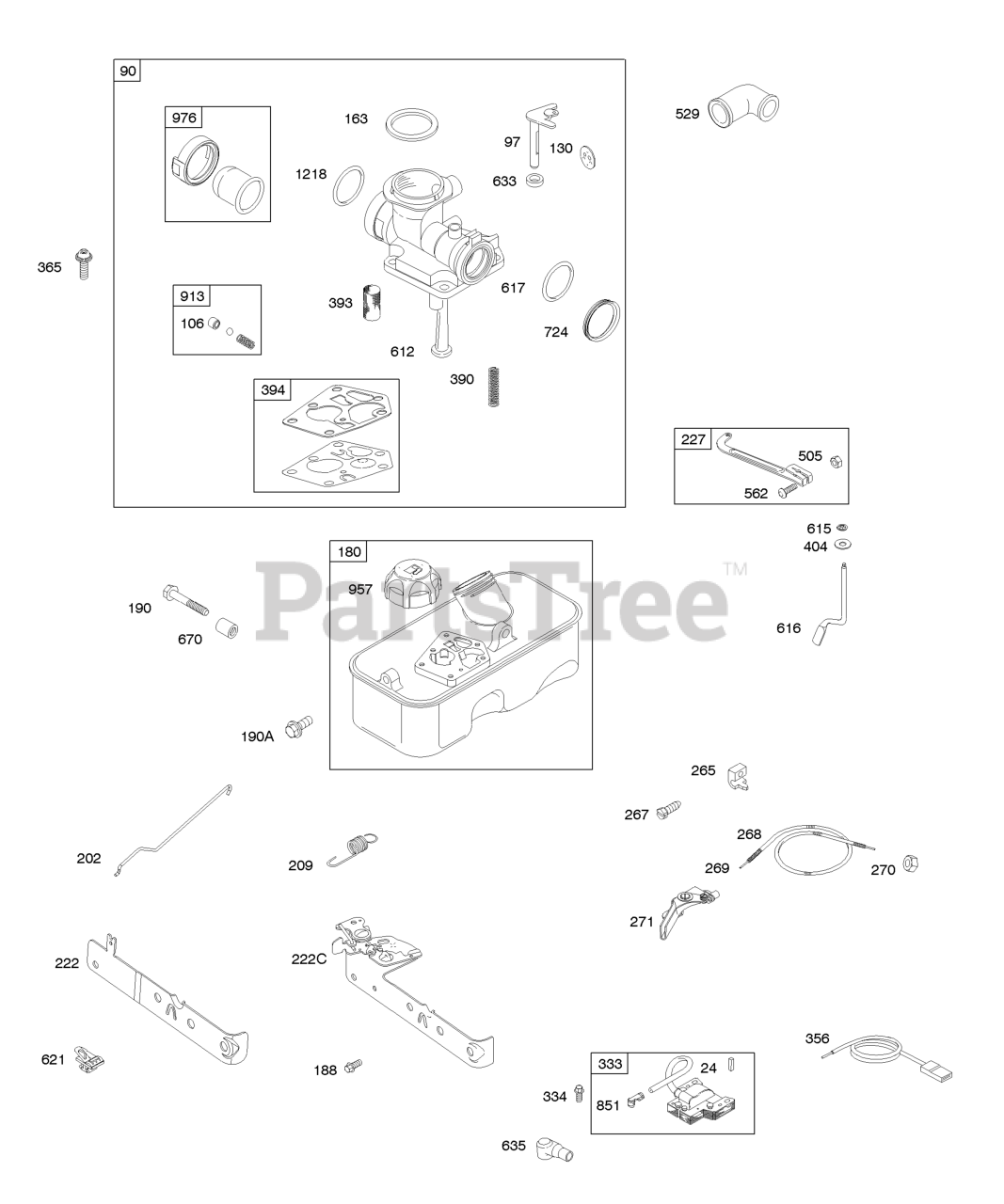

Carburetor, Controls, Fuel Supply, Governor Spring, Ignition Parts Diagram

  • Title

24

Briggs & Stratton 222698S

KEY, Flywheel

$2.99

$

In Stock, Qty 20+

0

90

Briggs & Stratton 790206

Carburetor
(Superseded to 795475)

$47.99

$

In Stock, only 1 left!

0

97

Briggs & Stratton 697414

Shaft-Throttle

$15.99

$

Usually ships in 2-12 days

0

106

Briggs & Stratton 691901

Seat-Inlet

$8.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 691190

Valve-Throttle

$7.49

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 271139S

Gasket-Air Cleaner

$3.99

$

In Stock, Qty 20+

0

180

Briggs & Stratton 494406

Tank-Fuel

Note: (Metal)

$79.99

$

In Stock, only 4 left!

0

188

Briggs & Stratton 692198

Screw

Note: (Control Bracket)

$5.99

$

In Stock, Qty 11

0

190

Briggs & Stratton 691640

Screw

Note: (Fuel Tank)

$3.49

$

In Stock, Qty 11

0

190A

Briggs & Stratton 691108

SCREW

Note: (Fuel Tank) (9/16" Long)

$3.49

$

In Stock, Qty 20+

0

202

Briggs & Stratton 698835

Link-Mechanical Governor

$8.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 698719

Spring-Governor

Note: (Light Blue)

$

$

Not available

222C

Briggs & Stratton 697410

Bracket-Control

$36.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 697402

Lever-Governor Control

$15.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 690798

Clamp-Casing

$5.49

$

In Stock, only 1 left!

0

267

Briggs & Stratton 691044

SCREW

Note: (Casing Clamp)

$3.99

$

In Stock, only 4 left!

0

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 793281

Armature-Magneto
(Superseded to 591420)

$53.99

$

Usually ships in 2-12 days

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 692390

Wire-Stop

$

$

Not available

365

Briggs & Stratton 790029

Screw

Note: (Carburetor)

$3.99

$

In Stock, only 2 left!

0

390

Briggs & Stratton 691839

Spring-Choke Diaphragm

$5.99

$

In Stock, Qty 5

0

393

Briggs & Stratton 691837

Screen-Carburetor

$7.49

$

In Stock, only 3 left!

0

394

Briggs & Stratton 495770

Diaphragm-Carburetor
(Superseded to 795083)

Note: Used Before Code Date 07080900

$4.49

$

In Stock, Qty 20+

0

394

Briggs & Stratton 795083

Diaphragm-Carburetor

Note: Used After Code Date 07080800

$4.49

$

In Stock, Qty 20+

0

404

Briggs & Stratton 690272

WASHER

Note: (Governor Crank)

$3.99

$

In Stock, only 2 left!

0

505

Briggs & Stratton 691251

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, Qty 9

0

529

Briggs & Stratton 692189

Grommet

$4.49

$

In Stock, Qty 10

0

562

Briggs & Stratton 92613

Bolt

Note: (Governor Control Lever)

$

$

Not available

612

Briggs & Stratton 496046S

Tube-Pick Up

$8.99

$

In Stock, only 1 left!

0

615

Briggs & Stratton 690340

RETAINER, Governor Shaft

$4.49

$

In Stock, Qty 10

0

616

Briggs & Stratton 697405

Crank-Governor

$10.99

$

Usually ships in 2-12 days

0

617

Briggs & Stratton 270344S

Seal-O Ring

Note: (Intake Manifold)

$3.49

$

In Stock, Qty 20+

0

621

Briggs & Stratton 692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

633

Briggs & Stratton 691321

Seal-Choke/Thr Shaft

$4.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 66538S

BOOT, Spark Plug

$3.99

$

In Stock, Qty 7

0

670

Briggs & Stratton 691633

Spacer-Fuel Tank

$4.99

$

In Stock, only 1 left!

0

724

Briggs & Stratton 697478

Retainer-Seal

$4.99

$

In Stock, Qty 19

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

913

Briggs & Stratton 494409

Seat-Check Valve

$

$

Not available

957

Briggs & Stratton 497929S

Cap-Fuel Tank

Note: (Plastic)

$5.49

$

In Stock, Qty 8

0

976

Briggs & Stratton 694394

Primer-Carburetor

$4.49

$

In Stock, Qty 12

0

1218

Briggs & Stratton 695866

Seal-O Ring

Note: (Carburetor)

$

$

Not available
