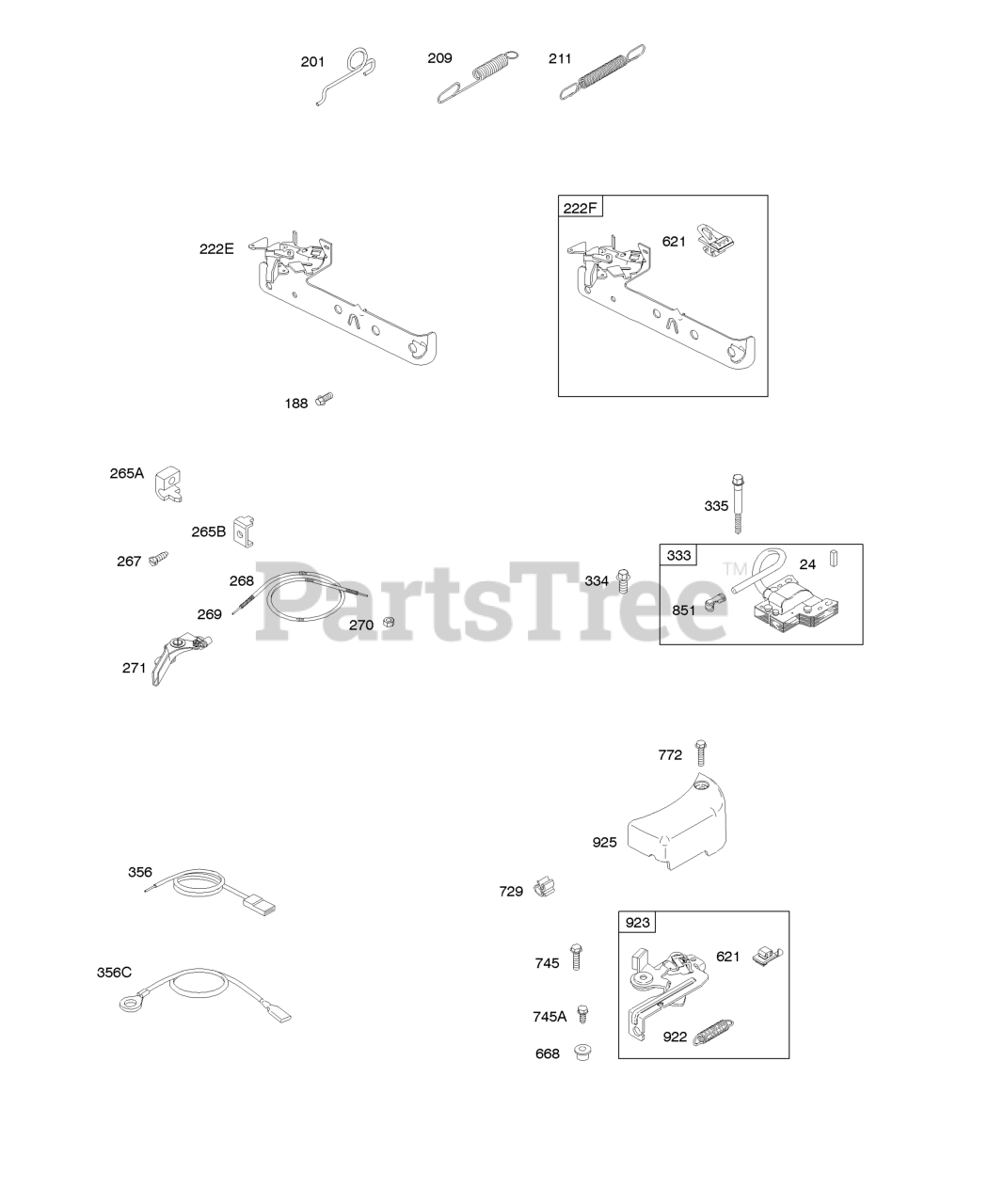

10J902-0139-E1 - Briggs & Stratton Vertical Engine Brake, Controls, Governor Spring, Ignition Parts Diagram

Vertical Engine

Brake, Controls, Governor Spring, Ignition Parts Diagram

  • Title

24

Briggs & Stratton 222698S

KEY, Flywheel

$2.99

$

In Stock, Qty 20+

0

188

Briggs & Stratton 692198

Screw

Note: (Control Bracket)

$5.99

$

In Stock, Qty 11

0

201

Briggs & Stratton 690347

Link-Air Vane

$5.99

$

In Stock, Qty 10

0

209

Briggs & Stratton 691862

Spring-Governor

Note: (Dark Green)

$9.49

$

In Stock, only 4 left!

0

211

Briggs & Stratton 691859

Spring-Governed Idle

$6.99

$

In Stock, Qty 20+

0

222F

Briggs & Stratton 691445

Bracket-Control

$39.99

$

Usually ships in 2-12 days

0

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (72" Long)(Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 793281

Armature-Magneto
(Superseded to 591420)

$53.99

$

In Stock, only 2 left!

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature) (1" Long)

$3.49

$

In Stock, Qty 20+

0

335

Briggs & Stratton 691107

Screw

Note: (Magneto Armature With Air Vane) (1 15/16" Long)

$3.99

$

Usually ships in 2-12 days

0

356

Briggs & Stratton 692390

Wire-Stop

$

$

Not available

621

Briggs & Stratton 692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

668

Briggs & Stratton 692889

Spacer

$8.49

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 690586

Clip-Wire

$3.99

$

In Stock, only 3 left!

0

745

Briggs & Stratton 691146

Screw

Note: (Brake) (7/8" Long)

$3.99

$

Usually ships in 2-12 days

0

745A

Briggs & Stratton 690859

Screw

Note: (Brake) (1/2" Long)

$3.99

$

In Stock, Qty 8

0

772

Briggs & Stratton 691111

Screw

Note: (Linkage Cover)

$3.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

922

Briggs & Stratton 692135

Spring-Brake

$8.49

$

In Stock, Qty 13

0
