10H902-0121-E1 - Briggs & Stratton Vertical Engine Camshaft, Crankcase Cover/Sump, Crankshaft, Piston/Rings/Connecting Rod Parts Diagram

Vertical Engine

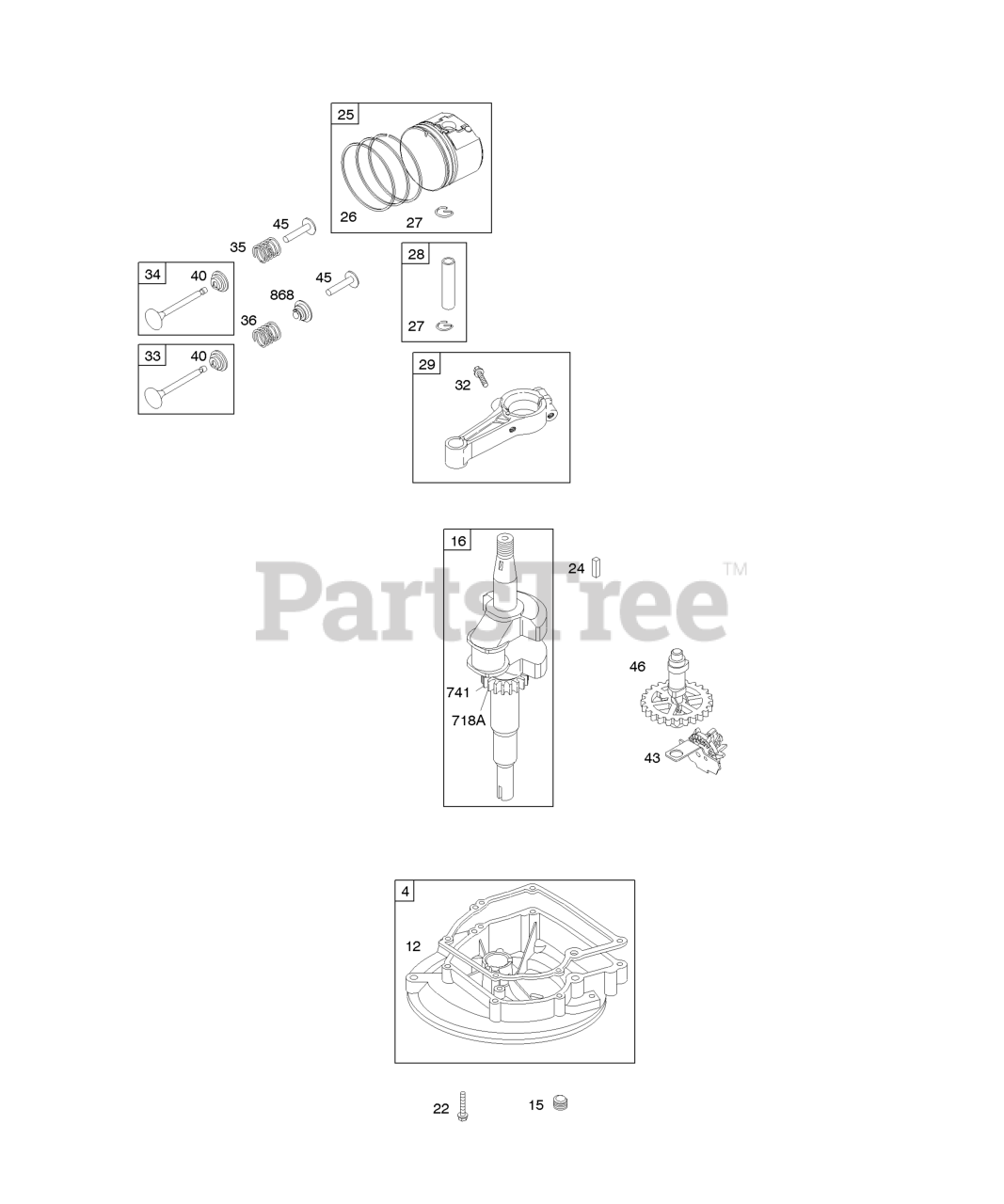

Camshaft, Crankcase Cover/Sump, Crankshaft, Piston/Rings/Connecting Rod Parts Diagram

  • Title

4

Briggs & Stratton 698691

Sump-Engine
(Superseded to 590569)

$104.99

$

In Stock, Qty 5

0

12

Briggs & Stratton 692218

Gasket-Crankcase

Note: (.015" Thick)(Standard)

$

$

Not available

15

Briggs & Stratton 691680

PLUG, Oil Drain

$5.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 692989

Crankshaft
(Superseded to 796218)

$142.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 692551

Screw

Note: (Crankcase Cover/Sump)

$3.99

$

In Stock, only 2 left!

0

24

Briggs & Stratton 222698S

KEY, Flywheel

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 790908

Piston Assembly
(Superseded to 795691)

Note: (Standard) Used After Code Date 04111400

$111.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 792532

Piston Assembly
(Superseded to 795689)

Note: (.020 Oversize) Used After Code Date 04111400

$80.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 699657

Piston Assembly
(Superseded to 795691)

Note: (Standard) Used Before Code Date 04111500

$111.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 795132

Ring Set
(Superseded to 795690)

Note: (Standard) Used After Code Date 04111400

$52.99

$

In Stock, only 3 left!

0

26

Briggs & Stratton 795134

Ring Set
(Superseded to 795688)

Note: (.020 Oversize) Used After Code Date 04111400

$98.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 699658

Ring Set

Note: (Standard) Used Before Code Date 04111500

$45.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 691588

Lock-Piston Pin

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298909

Pin-Piston

Note: (Standard) Used Before Code Date 03100100

$8.99

$

In Stock, only 3 left!

0

28

Briggs & Stratton 699659

Pin-Piston

Note: (Standard) Used After Code Date 03093000

$8.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 298908

Pin-Piston

Note: (.005" Oversize) Used Before Code Date 03100100

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 699654

Rod-Connecting

$61.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 691664

Screw

Note: (Connecting Rod)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 296676

Valve-Exhaust

$23.99

$

In Stock, only 2 left!

0

34

Briggs & Stratton 296677

Valve-Intake

$24.99

$

In Stock, only 3 left!

0

35

Briggs & Stratton 690520

Spring-Valve

Note: (Intake)

$5.49

$

In Stock, only 3 left!

0

36

Briggs & Stratton 690520

Spring-Valve

Note: (Exhaust)

$5.49

$

In Stock, only 3 left!

0

40

Briggs & Stratton 692194

Retainer-Valve

$5.99

$

In Stock, Qty 11

0

43

Briggs & Stratton 698690

Slinger-Governor/Oil

$15.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 691762

Tappet-Valve

$9.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 691998

Camshaft

$61.99

$

Usually ships in 2-12 days

0

718A

Briggs & Stratton 499047

Pin-Locating

Note: (Crankshaft)

$4.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 691805

Gear-Timing

$15.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 697338

Seal-Valve

$13.99

$

In Stock, only 4 left!

0
