10C902-0133-XX - Briggs & Stratton Vertical Engine Piston Group, Connecting Rod, Valve Group Parts Diagram

Vertical Engine

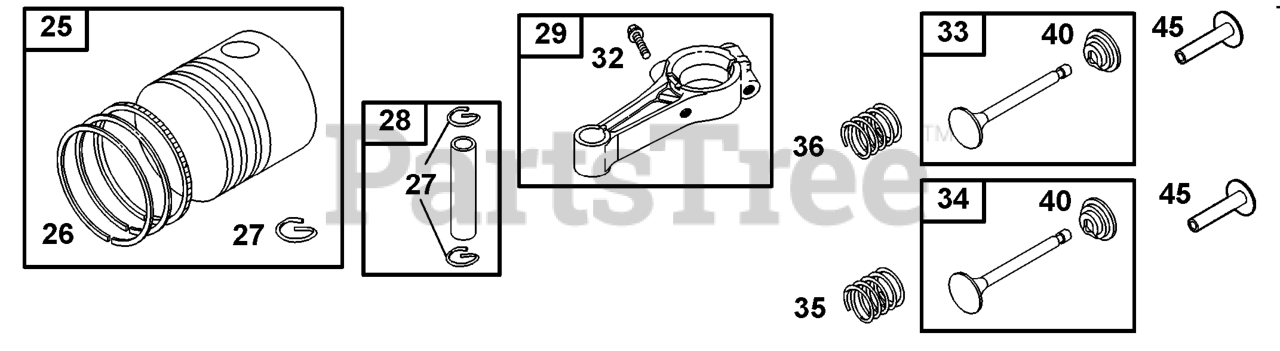

Piston Group, Connecting Rod, Valve Group Parts Diagram

  • Title

25

Briggs & Stratton 298904

Piston Assembly (Standard)
(Superseded to 793214)

Note: Used Before Code Date 96020600

$

$

Not available

25

Briggs & Stratton 298905

Piston Assembly (.010 O.S.)

Note: Used Before Code Date 96020600

$50.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 298906

Piston Assembly (.020 O.S.)

Note: Used Before Code Date 96020600

$

$

Not available

25

Briggs & Stratton 298907

Piston Assembly (.030 O.S.)

Note: Used Before Code Date 96020600

$

$

Not available

25

Briggs & Stratton 498668

Piston Assembly (Standard)
(Superseded to 795691)

Note: Used After Code Date 96020500

$111.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 498669

Piston Assembly (.010 O.S.)

Note: Used After Code Date 96020500

$54.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 498670

Piston Assembly (.020 O.S.)
(Superseded to 795689)

Note: Used After Code Date 96020500

$80.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 498671

Piston Assembly (.030 O.S.)

Note: Used After Code Date 96020500

$53.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 298982

Ring Set (Standard)

Note: Used Before Code Date 96020600

$48.99

$

In Stock, Qty 8

0

26

Briggs & Stratton 298983

Ring Set (.010 O.S.)

Note: Used Before Code Date 96020600

$

$

Not available

26

Briggs & Stratton 298984

Ring Set (.020 O.S.)

Note: Used Before Code Date 96020600

$35.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 298985

Ring Set (.030 O.S.)

Note: Used Before Code Date 96020600

$23.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 498680

Ring Set (Standard)

Note: Used After Code Date 96020500

$

$

Not available

26

Briggs & Stratton 498681

Ring Set (.010 O.S.)

Note: Used After Code Date 96020500

$26.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 498682

Ring Set (.020 O.S.)

Note: Used After Code Date 96020500

$42.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 498683

Ring Set (.030 O.S.)

Note: Used After Code Date 96020500

$21.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 26026

Lock-Piston Pin
(Superseded to 691588)

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298908

Pin-Piston (.005 O.S.)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 298909

Pin-Piston

$8.99

$

In Stock, only 2 left!

0

29

Briggs & Stratton 496792

Rod-Connecting
(Superseded to 699654)

$61.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 94699

Screw (Connecting Rod)
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 296676

Valve-Exhaust

$23.99

$

In Stock, only 2 left!

0

34

Briggs & Stratton 296677

Valve-Intake

$24.99

$

In Stock, only 3 left!

0

35

Briggs & Stratton 260552

Spring-Valve (Intake)
(Superseded to 690520)

$5.49

$

In Stock, only 1 left!

0

36

Briggs & Stratton 260552

Spring-Valve (Exhaust)
(Superseded to 690520)

$5.49

$

In Stock, only 1 left!

0

40

Briggs & Stratton 93312

Retainer-Valve
(Superseded to 692194)

$5.99

$

In Stock, Qty 11

0

45

Briggs & Stratton 230173

Tappet-Valve
(Superseded to 691762)

$9.99

$

Usually ships in 2-12 days

0
