10C902-0125-01 - Briggs & Stratton Vertical Engine Oil Fill, Head, Cylinder Assembly Parts Diagram

Vertical Engine

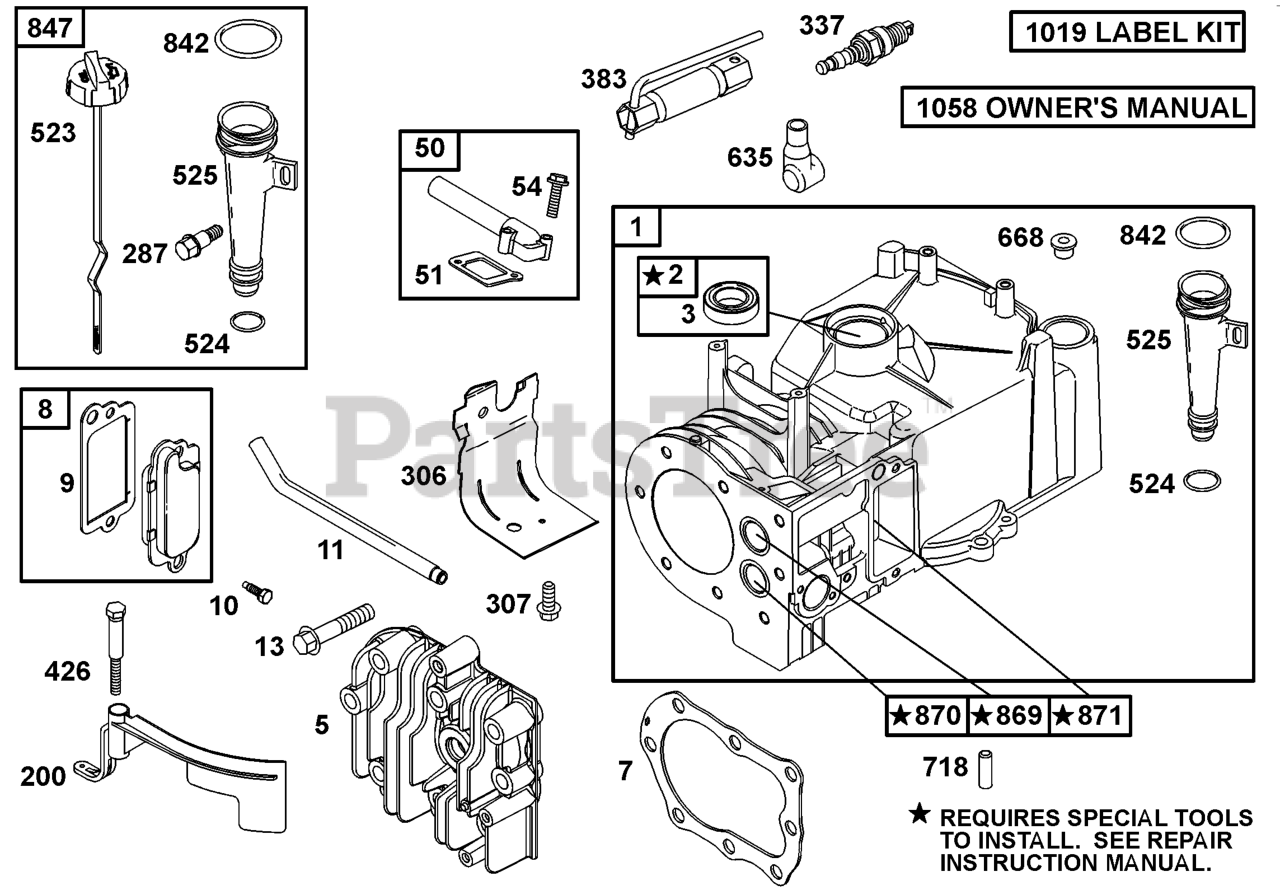

Oil Fill, Head, Cylinder Assembly Parts Diagram

  • Title

1

Briggs & Stratton 399164

Cylinder Assembly
(Superseded to 699653)

$

$

Not available

2

Briggs & Stratton 399269

Kit-Bushing/seal (Magneto Side)
(Superseded to 796961)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819

Seal-Oil (Magneto Side)
(Superseded to 299819S)

$5.49

$

In Stock, Qty 13

0

5

Briggs & Stratton 690386

Head-Cylinder
(Superseded to 790169)

$

$

Not available

7

Briggs & Stratton 272694

Gasket-Cylinder Head
(Superseded to 698717)

$5.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 495785

Breather Assembly
(Superseded to 791781)

$14.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 272602

Gasket-Breather
(Superseded to 695890)

$4.49

$

In Stock, only 2 left!

0

10

Briggs & Stratton 94621

Screw (Breather Assembly)
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 691245

Tube-Breather

$8.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 691697

Screw (Cylinder Head)
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

50

Briggs & Stratton 298775

Manifold-Intake
(Superseded to 693446)

$14.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 270345

Gasket-Intake
(Superseded to 270345S)

$4.49

$

In Stock, Qty 6

0

54

Briggs & Stratton 691111

Screw (Intake Manifold)

$3.99

$

Usually ships in 2-12 days

0

200

Briggs & Stratton 281024

Blade-Governor
(Superseded to 691912)

$13.99

$

In Stock, only 1 left!

0

287

Briggs & Stratton 691002

Screw (Dipstick Tube)

$8.49

$

In Stock, only 2 left!

0

306

Briggs & Stratton 690400

Shield-Cylinder

$6.49

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 690345

Screw (Cylinder Shield)

$4.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 802592

Sparkplug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

383

Briggs & Stratton 89838

Wrench-Sparkplug
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

426

Briggs & Stratton 691107

Screw (Governor Blade)

$3.99

$

Usually ships in 2-12 days

0

523

Briggs & Stratton 497968

Dipstick
(Superseded to 692040)

$14.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 271485

Seal-Dipstick Tube
(Superseded to 691876)

$5.49

$

In Stock, Qty 11

0

525

Briggs & Stratton 691320

Tube-Dipstick

$13.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 66538

Boot-Sparkplug
(Superseded to 66538S)

$3.99

$

In Stock, Qty 5

0

668

Briggs & Stratton 692889

Spacer

$8.49

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 230192

Pin-Locating
(Superseded to 690959)

$6.99

$

In Stock, only 1 left!

0

842

Briggs & Stratton 270920

Dipstick/Tube Seal
(Superseded to 691870)

$4.49

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 691440

Dipstick/Tube Assembly

$25.99

$

Usually ships in 2-12 days

0

869

Briggs & Stratton 211172

Seat-Valve (Intake)
(Superseded to 691701)

$8.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 211291

Seat-Valve (Exhaust)
(Superseded to 691702)

$8.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 231348

Bushing-Valve Guide (Exhaust Valve)

$31.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 63709

Bushing-Valve Guide (Intake Valve)

$14.99

$

Usually ships in 2-12 days

0

1019

Briggs & Stratton 497624

Kit-Label

$34.99

$

Usually ships in 2-12 days

0

1058

Briggs & Stratton 272308

Owner's Manual (Non Emission Engines)

$

$

Not available

1058

Briggs & Stratton 294260

Owner's Manual (Emission Engines)
(Superseded to 398034)

$65.99

$

Usually ships in 2-12 days
