10998 - Lawn-Boy Insight Walk-Behind Mower (SN: 311000001 - 311999999) (2011) Muffler and Fuel Tank Assembly Briggs and Stratton 126T05-0184-B1 Parts Diagram

Insight Walk-Behind Mower

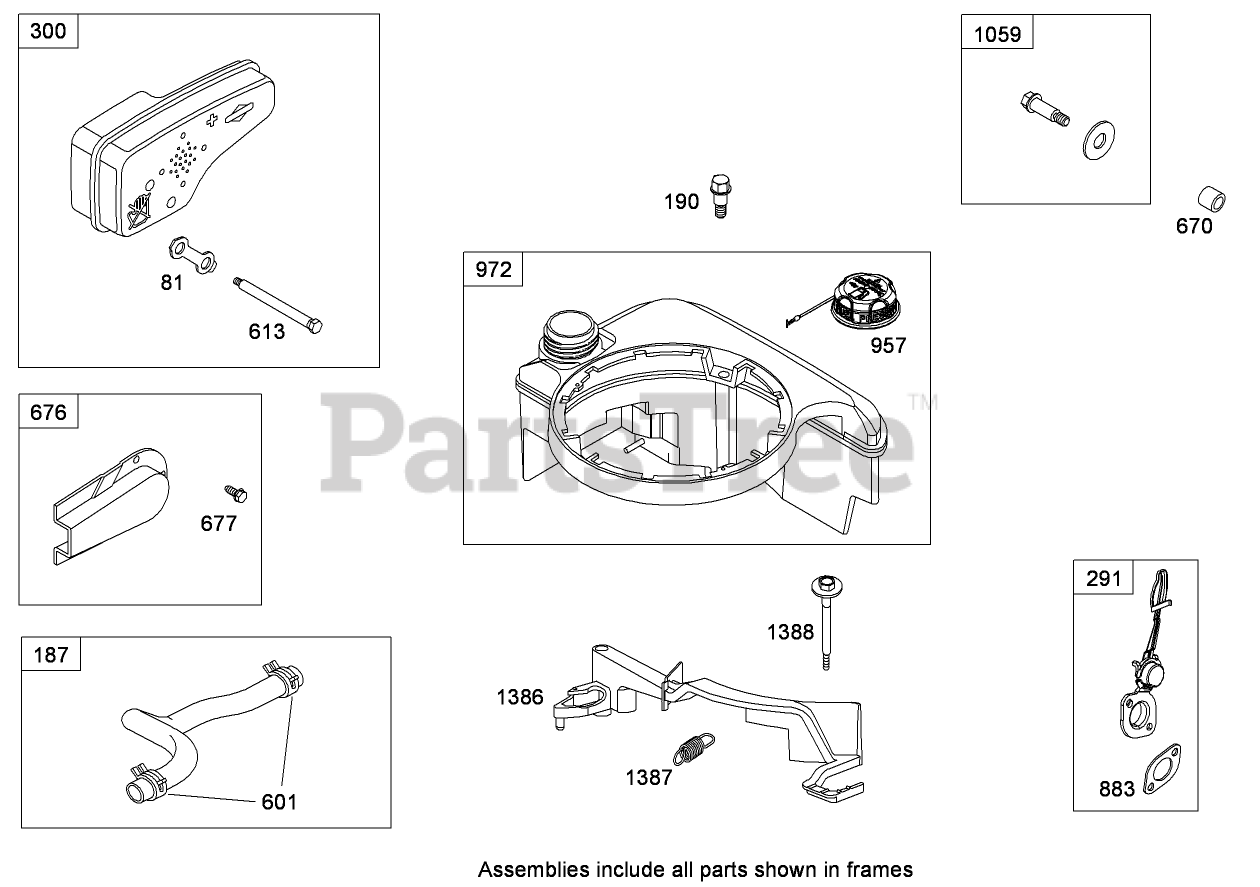

Muffler and Fuel Tank Assembly Briggs and Stratton 126T05-0184-B1 Parts Diagram

  • Title
81

Lawn-Boy 691740

Lock-Screw, Muffler

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

187

Lawn-Boy 791873

Line-Fuel (Molded)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

190

Lawn-Boy 690940

Screw (Dipstick Tube)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

291

Lawn-Boy 790830

Thermostat

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

300

Lawn-Boy 692038

Muffler

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

601

Lawn-Boy 791850

Clamp-Hose

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

613

Lawn-Boy 691340

Screw (Muffler)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

670

Lawn-Boy 692294

Spacer-Tank, Fuel

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

676

Lawn-Boy 493871

Deflector-Muffler

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

677

Lawn-Boy 690661

Screw (Muffler Deflector)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

883

Lawn-Boy 691881

Gasket-Exhaust

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

957

Lawn-Boy 699985

Cap-Tank, Fuel

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

972

Lawn-Boy 699374

Tank-Fuel

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

1059

Lawn-Boy 692311

Screw and Washer Kit

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

1386

Lawn-Boy 790848

Vane-Air

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

1387

Lawn-Boy 790849

Spring-Vane, Air

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

1388

Lawn-Boy 790850

Screw (Air Vane)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable
