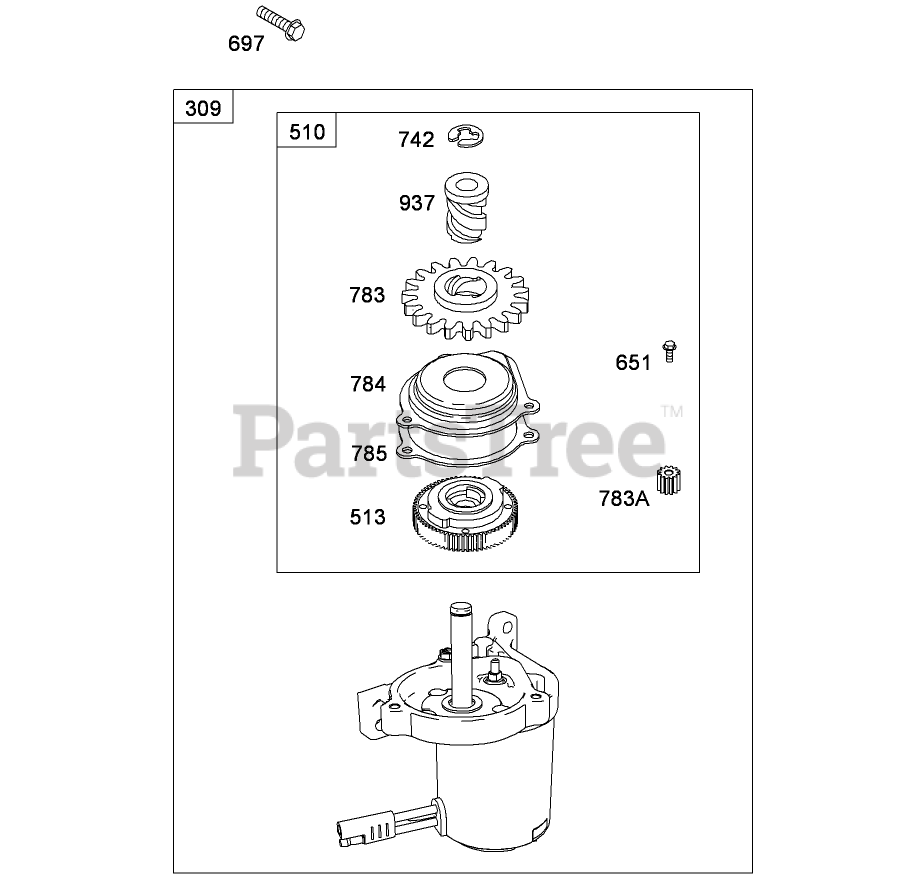

10998 - Lawn-Boy Insight Walk-Behind Mower (SN: 311000001 - 311999999) (2011) Electric Starter Assembly Briggs and Stratton 126T05-0184-B1 Parts Diagram

Insight Walk-Behind Mower

Electric Starter Assembly Briggs and Stratton 126T05-0184-B1 Parts Diagram

  • Title
309

Lawn-Boy 795092

Motor-Starter

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

510

Lawn-Boy 795093

Drive-Starter

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

513

Lawn-Boy 692358

Clutch-Drive

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

651

Lawn-Boy 691660

Screw (Starter Gear Cover)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

697

Lawn-Boy 691127

Screw (Starter Motor)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

742

Lawn-Boy 93941

Retainer-E Ring

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

783

Lawn-Boy 691918

Gear-Pinion

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

783A

Lawn-Boy 691269

Gear-Pinion

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

784

Lawn-Boy 7950951

Cover-Gear, Starter

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

785

Lawn-Boy 692352

Gasket-Cover, Starter

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

937

Lawn-Boy 691325

Spline-Starter

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable
