10998 - Lawn-Boy Insight Walk-Behind Mower (SN: 311000001 - 311999999) (2011) Carburetor Assembly Briggs and Stratton 126T05-0184-B1 Parts Diagram

Insight Walk-Behind Mower

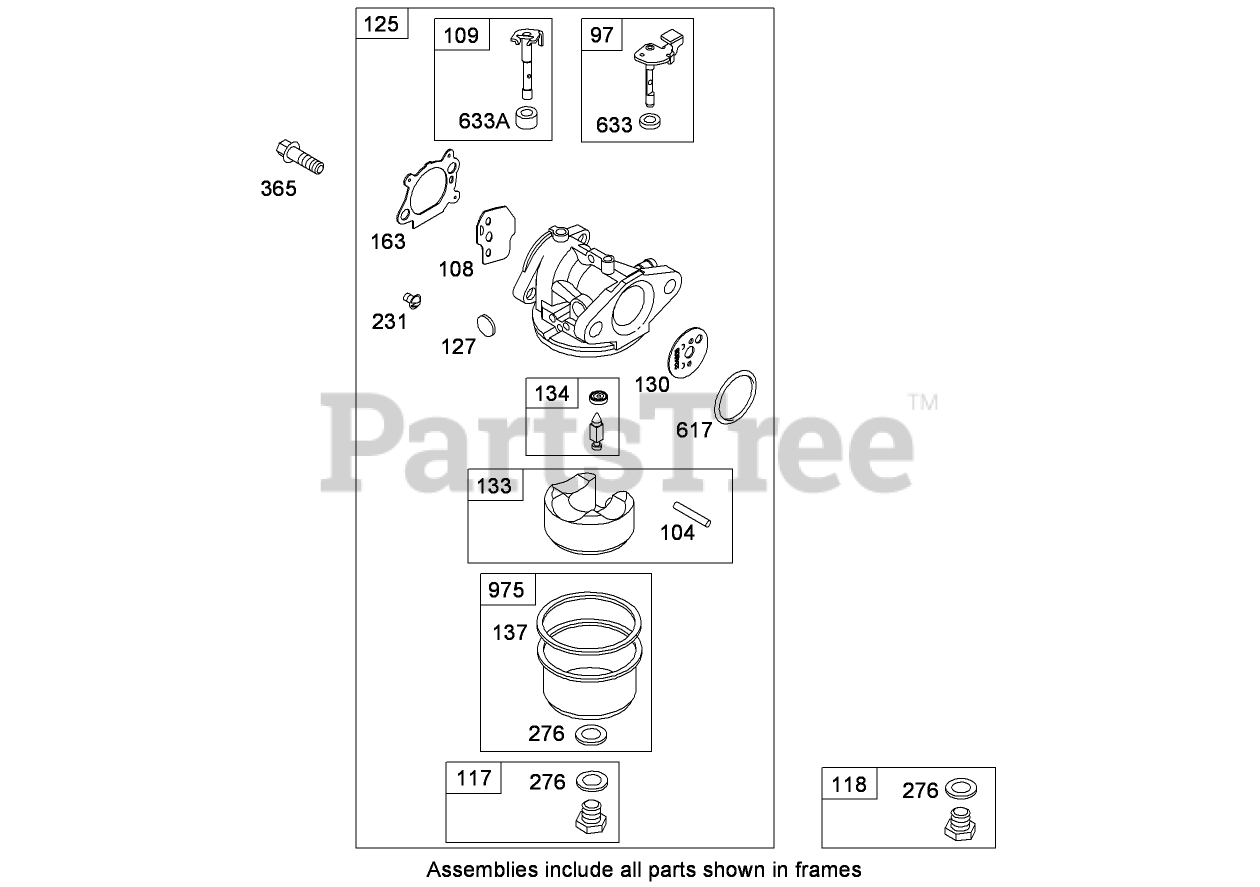

Carburetor Assembly Briggs and Stratton 126T05-0184-B1 Parts Diagram

  • Title

97

Lawn-Boy 696565

Shaft-Throttle

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

104

Lawn-Boy 691242

Pin-Hinge, Float

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

104

Lawn-Boy 691242

Pin-Hinge, Float

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

108

Lawn-Boy 790844

Valve-Choke

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

109

Lawn-Boy 790843

Shaft-Choke

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

117

Lawn-Boy 691428

Jet-Main (STD)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

118

Lawn-Boy 498977

Jet-Main (High Altitude)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

125

Lawn-Boy 794304

Carburetor

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

127

Lawn-Boy 694468

Plug-Welch

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

127

Lawn-Boy 694468

Plug-Welch

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

130

Lawn-Boy 696564

Valve-Throttle

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

133

Lawn-Boy 398187

Float-Carburetor

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

134

Lawn-Boy 398188

Valve-Inlet (Includes Seat)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

134

Lawn-Boy 398188

Valve-Inlet (Includes Seat)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

137

Lawn-Boy 693981

Gasket-Bowl, Float (Used Before Date Code 08120200)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

137

Lawn-Boy 693981

Gasket-Bowl, Float (Used Before Date Code 08120200)

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$

$

Currently unavailable

137

Lawn-Boy 693981

Gasket-Bowl, Float (Used Before Date Code 08120200)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

163

Lawn-Boy 272653s

Gasket-Cleaner, Air

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

163

Lawn-Boy 272653s

Gasket-Cleaner, Air

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

163

Lawn-Boy 272653s

Gasket-Cleaner, Air

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$

$

Currently unavailable

163

Lawn-Boy 272653s

Gasket-Cleaner, Air

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

231

Lawn-Boy 691636

Screw (Choke Valve)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

276

Lawn-Boy 271716

Washer-Sealing

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

276

Lawn-Boy 271716

Washer-Sealing

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

276

Lawn-Boy 271716

Washer-Sealing

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$

$

Currently unavailable

365

Lawn-Boy 692524

Screw (Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

617

Lawn-Boy 270344s

Seal-O Ring (Intake Manifold)

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$

$

Currently unavailable

617

Lawn-Boy 270344s

Seal-O Ring (Intake Manifold)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

617

Lawn-Boy 270344s

Seal-O Ring (Intake Manifold)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

633

Lawn-Boy 691321

Seal-Shaft, Choke Throttle (Throttle Shaft)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

633

Lawn-Boy 691321

Seal-Shaft, Choke Throttle (Throttle Shaft)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

633

Lawn-Boy 691321

Seal-Shaft, Choke Throttle (Throttle Shaft)

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$

$

Currently unavailable

633A

Lawn-Boy 693867

Seal-Shaft, Choke Throttle (Choke Shaft)

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$

$

Currently unavailable

633A

Lawn-Boy 693867

Seal-Shaft, Choke Throttle (Choke Shaft)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

633A

Lawn-Boy 693867

Seal-Shaft, Choke Throttle (Choke Shaft)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

975

Lawn-Boy 493640

Bowl-Float

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable
