10998 - Lawn-Boy Insight Walk-Behind Mower (SN: 290000001 - 290000179) (2009) CARBURETOR OVERHAUL KIT BRIGGS AND STRATTON 126T05-0184-B1 Parts Diagram

Insight Walk-Behind Mower

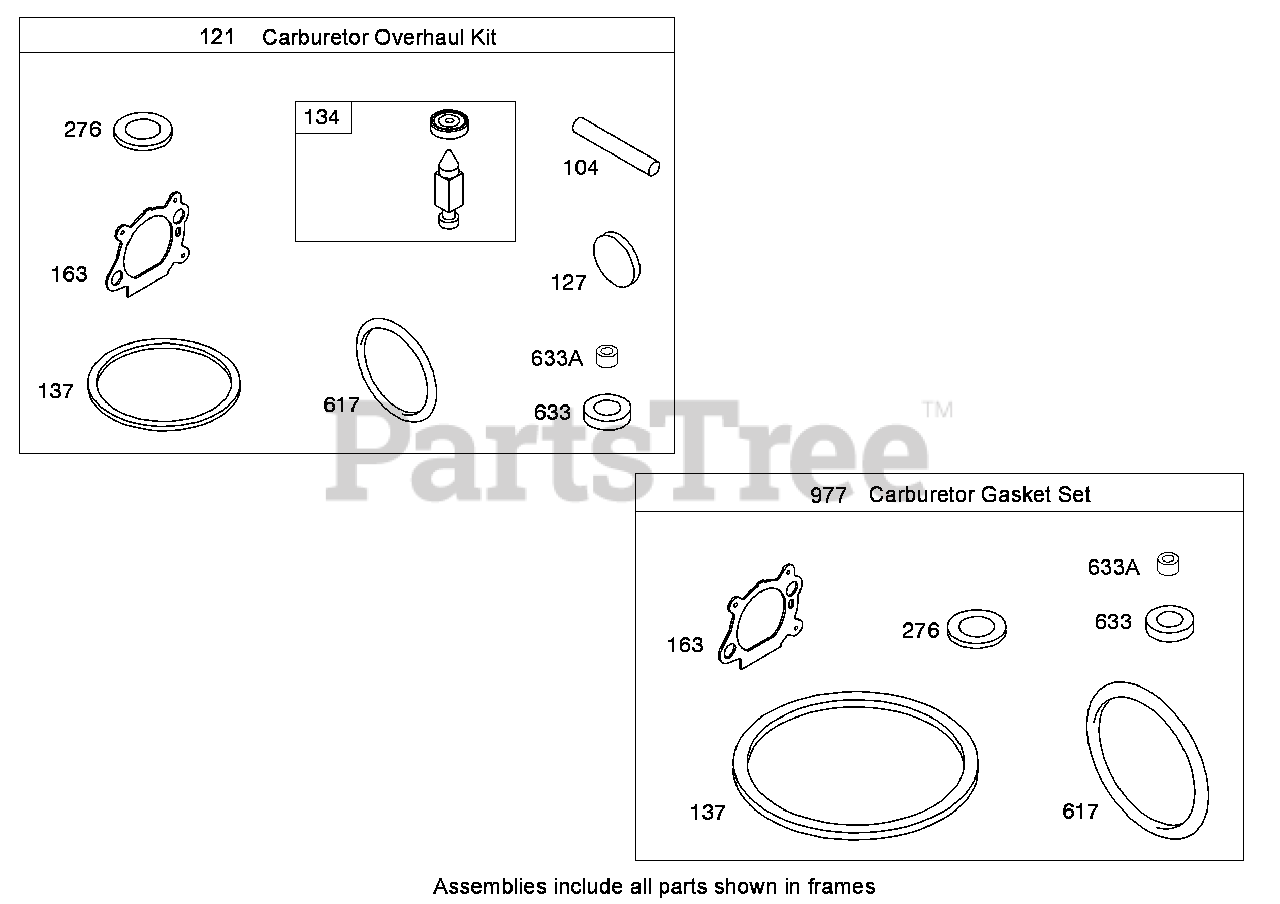

CARBURETOR OVERHAUL KIT BRIGGS AND STRATTON 126T05-0184-B1 Parts Diagram

  • Title
104

Lawn-Boy 691242

Pin-Hinge, Float

Note: Included in Carburetor Overhaul Kit (Ref. No. 121) Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

121

Lawn-Boy 498260

Carburetor Overhaul Kit

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

127

Lawn-Boy 694468

Plug-Welch

Note: Included in Carburetor Overhaul Kit (Ref. No. 121) Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

134

Lawn-Boy 398188

Needle and Seat Kit

Note: Included in Carburetor Overhaul Kit (Ref. No. 121) Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

137

Lawn-Boy 693981

Gasket-Bowl, Float

Note: Included in Carburetor Gasket Set (Ref. No. 977) Included in Carburetor Overhaul Kit (Ref. No. 121) Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

163

Lawn-Boy 272653s

Gasket-Cleaner, Air

Note: Included in Carburetor Gasket Set (Ref. No. 977) Included in Carburetor Overhaul Kit (Ref. No. 121) Included in Engine Gasket Set (Ref. No. 358) Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

276

Lawn-Boy 271716

Washer-Sealing

Note: Included in Carburetor Gasket Set (Ref. No. 977) Included in Carburetor Overhaul Kit (Ref. No. 121) Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

617

Lawn-Boy 270344s

Seal-O Ring (Intake Manifold)

Note: Included in Carburetor Gasket Set (Ref. No. 977) Included in Carburetor Overhaul Kit (Ref. No. 121) Included in Engine Gasket Set (Ref. No. 358) Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

633

Lawn-Boy 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Gasket Set (Ref. No. 977) Included in Carburetor Overhaul Kit (Ref. No. 121) Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

633A

Lawn-Boy 693867

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Gasket Set (Ref. No. 977) Included in Carburetor Overhaul Kit (Ref. No. 121) Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

977

Lawn-Boy 498261

Carburetor Gasket Set

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable
