10998 - Lawn-Boy Insight Walk-Behind Mower (SN: 280000001 - 280999999) (2008) GOVERNOR ASSEMBLY BRIGGS AND STRATTON 126T05-0184-B1 Parts Diagram

Insight Walk-Behind Mower

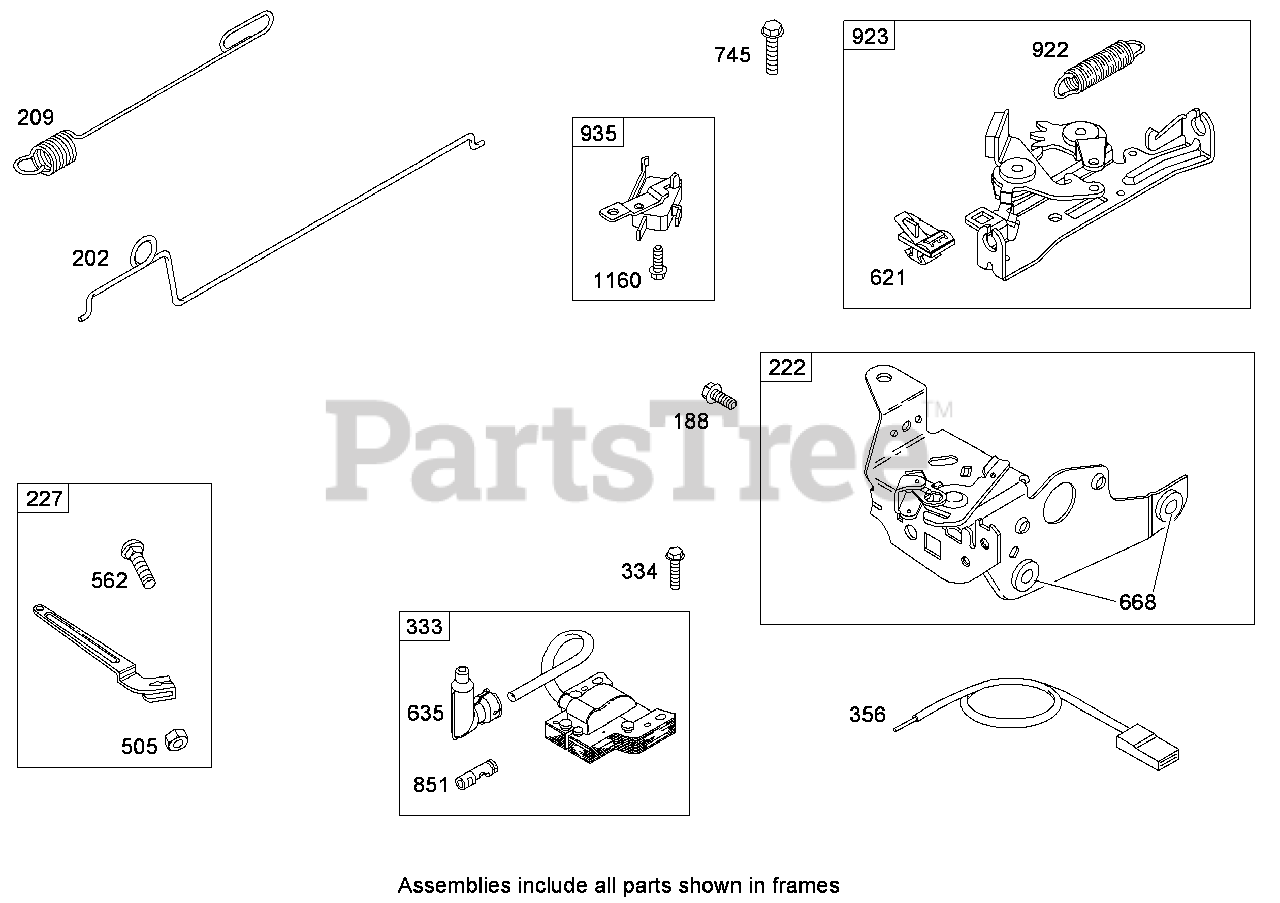

GOVERNOR ASSEMBLY BRIGGS AND STRATTON 126T05-0184-B1 Parts Diagram

  • Title
188

Lawn-Boy 693399

Screw (Control Bracket)

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

202

Lawn-Boy 691829

Link-Governor, Mechanical

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

209

Lawn-Boy 691852

Spring-Governor

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

222

Lawn-Boy 793754

Bracket-Control

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

227

Lawn-Boy 690783

Lever-Control, Governor

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

333

Lawn-Boy 793353

Armature-Magneto

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

334

Lawn-Boy 691061

Screw (Magneto Armature)

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

356

Lawn-Boy 690791

Wire-Stop

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

505

Lawn-Boy 691251

Nut (Governor Control Lever)

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

562

Lawn-Boy 691119

Screw (Governor Control Lever)

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

621

Lawn-Boy 692310

Switch-Stop

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

635

Lawn-Boy 793351

Boot-Spark Plug

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

668

Lawn-Boy 493823

Spacer

Note: Included in Engine Gasket Set (Ref. No. 358) Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

745

Lawn-Boy 691648

Screw (Brake)

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

851

Lawn-Boy 493880s

Terminal-Spark Plug

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

922

Lawn-Boy 691831

Spring-Brake

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

923

Lawn-Boy 691994

Brake ASM

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

935

Lawn-Boy 499421

Switch-Interlock

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable

1160

Lawn-Boy 691627

Screw (Interlock Switch)

Note: Obtain from your local Briggs & Stratton dealer

$

$

Currently unavailable
