10997 - Lawn-Boy Insight Gold Walk-Behind Mower (SN: 260000001 - 260999999) (2006) ELECTRIC STARTER KIT NO. 37753 TECUMSEH LV195EA-362074D Parts Diagram

Insight Gold Walk-Behind Mower

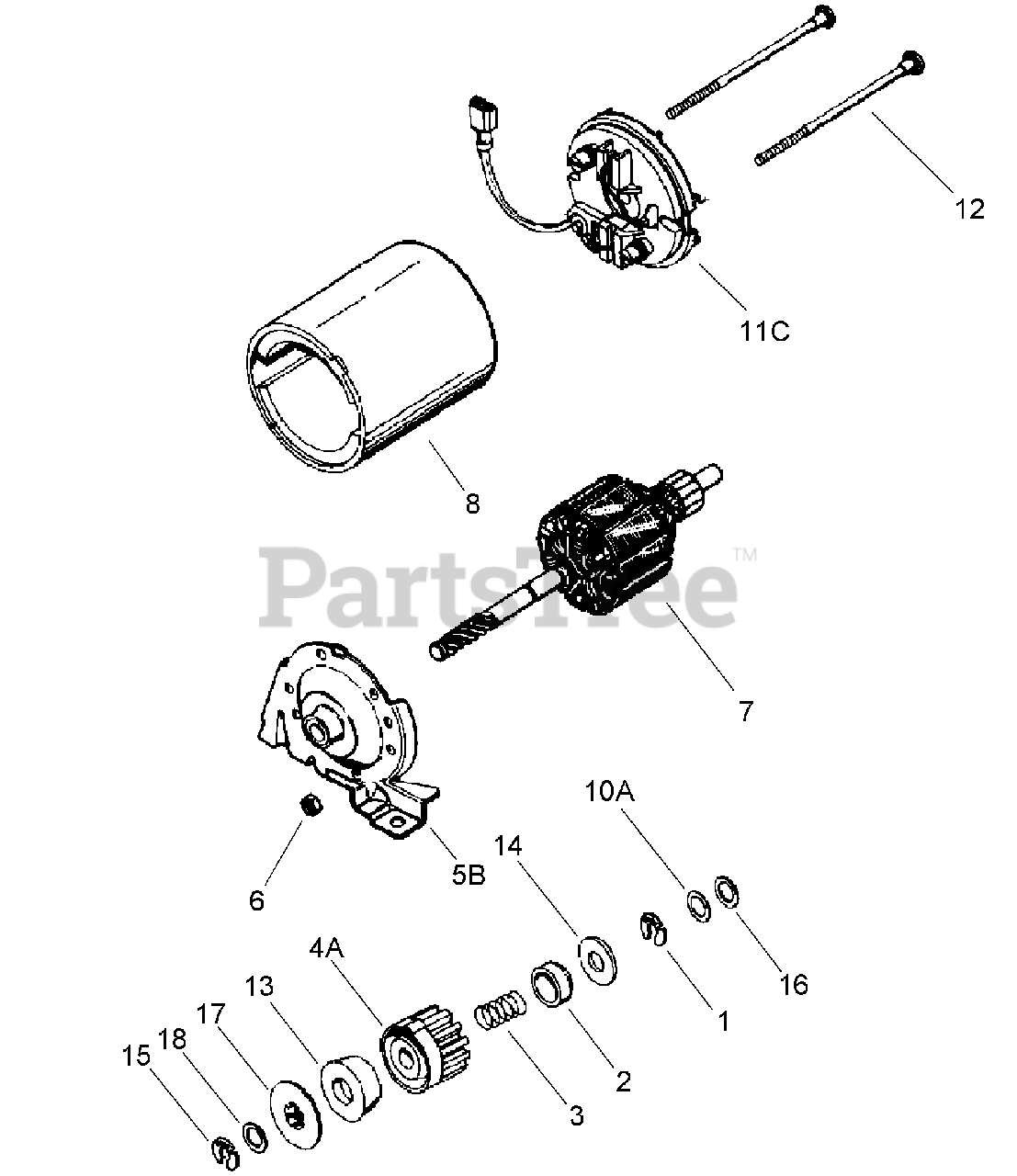

ELECTRIC STARTER KIT NO. 37753 TECUMSEH LV195EA-362074D Parts Diagram

  • Title

Lawn-Boy 37753

12 Volt Electric Starter Motor ASM

Note: Obtain from your local Tecumseh dealer

$

$

Not available

1

Lawn-Boy 34955

Ring-Retaining

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

2

Lawn-Boy 34950

Retainer-Spring

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

3

Lawn-Boy 34954

Spring

Note: Obtain from your local Tecumseh dealer

$

$

Not available

4A

Lawn-Boy 37788

Gear

Note: Obtain from your local Tecumseh dealer

$

$

Not available

5B

Lawn-Boy 34943

Drive End Cap ASM

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

6

Lawn-Boy 33450

Nut-Lock

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

7

Lawn-Boy 34944

Armature

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

8

Lawn-Boy 34945

Housing ASM

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

10A

Lawn-Boy 590500

Washer-Thrust

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

11C

Lawn-Boy 35714

Commutator End Cap ASM (Includes brushes)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

12

Lawn-Boy 34947

Bolt

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

13

Lawn-Boy 34946

Driver-Pinion

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

14

Lawn-Boy 34951

Washer-Cup

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

15

Lawn-Boy 34952

Ring-Retaining

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

16

Lawn-Boy 34948

Washer

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

17

Lawn-Boy 34953

Nut-Drive

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

18

Lawn-Boy 590608

Washer

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable
