10996 - Lawn-Boy Insight Walk-Behind Mower (SN: 312000001 - 312999999) (2012) Engine and Blade Assembly Parts Diagram

Insight Walk-Behind Mower

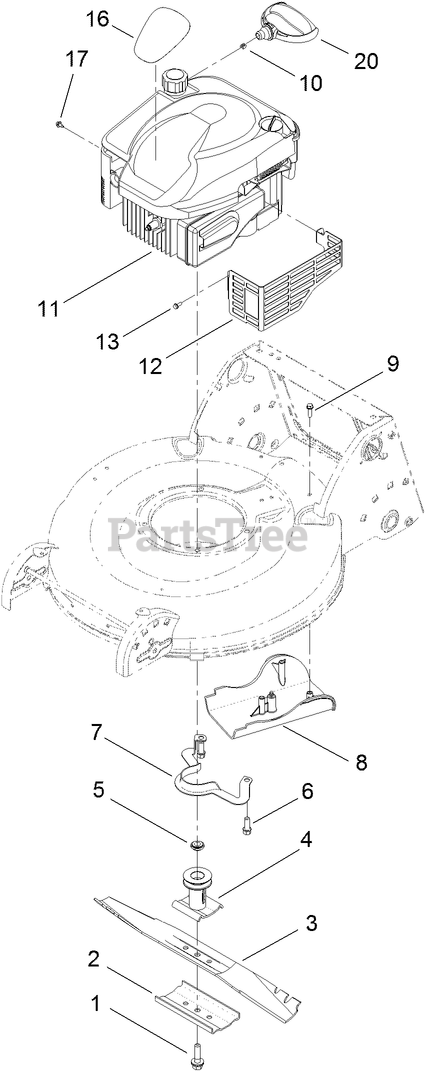

Engine and Blade Assembly Parts Diagram

  • Title

1

Lawn-Boy 105-8579

See Supercession: 125-2466
(Superseded to 125-2466)

$3.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 11

0

3

Lawn-Boy 108-0954-03

See Supercession: 133-8182-03
(Superseded to 133-8182-03)

$25.99

$

In Stock, Qty 11

0

4

Lawn-Boy 106-3987

DRIVER-BLADE

$31.99

$

In Stock, only 2 left!

0

5

Lawn-Boy 106-3999

SPACER-DRIVER

$3.49

$

In Stock, only 4 left!

0

6

Lawn-Boy 92-1624

See Supercession: 95-1726
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 105-3030-03

GUIDE-BELT

$14.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 110-1832

COVER-BELT

$15.99

$

In Stock, only 2 left!

0

9

Lawn-Boy 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

11

ENGINE-BRIGGS, 126M020124F1

Note: Not serviced separately

$

$

Not available

11

ENGINE-BRIGGS, 126M020124F1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

12

Lawn-Boy 104-7577-03

SHIELD-MUFFLER

$26.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

16

Lawn-Boy 112-8802

DECAL-ENGINE

$

$

Not available

17

Lawn-Boy 98-1394

SCREW-HWH

$4.49

$

In Stock, only 1 left!

0

20

Lawn-Boy 110-1778

HANDLE-RECOIL

$31.99

$

In Stock, Qty 6

0
