10996 - Lawn-Boy Insight Walk-Behind Mower (SN: 311000001 - 311999999) (2011) Starter Assembly Briggs and Stratton 126T02-0183-B1 Parts Diagram

Insight Walk-Behind Mower

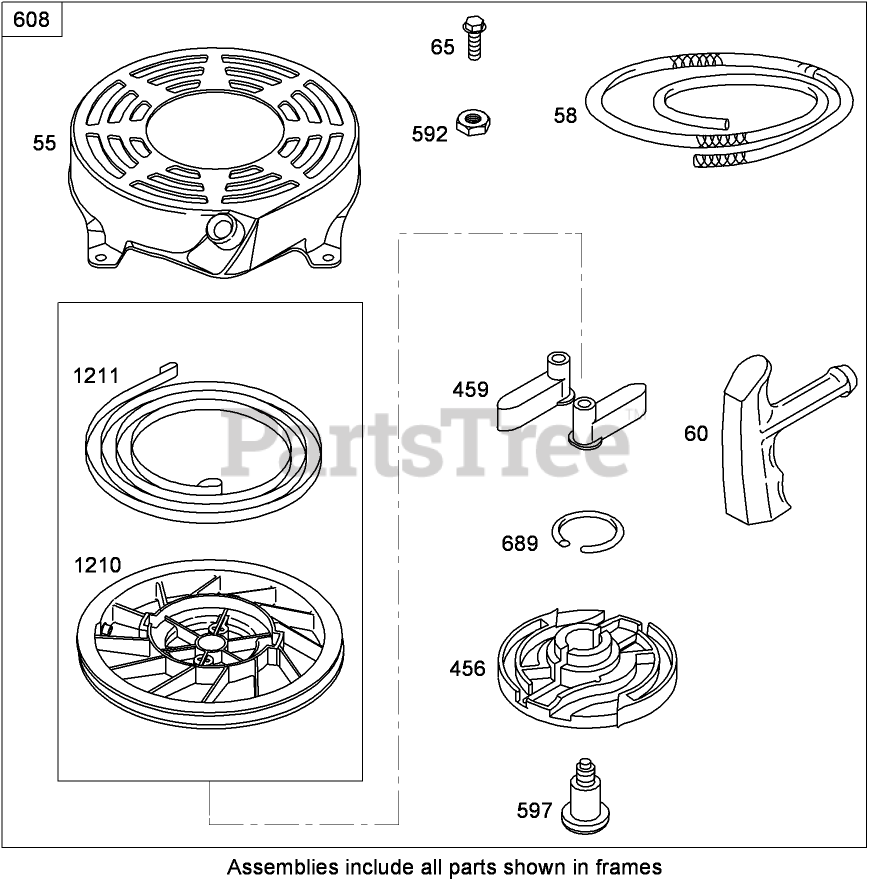

Starter Assembly Briggs and Stratton 126T02-0183-B1 Parts Diagram

  • Title

55

Lawn-Boy 691421

Housing-Starter, Rewind

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

58

Lawn-Boy 697316

Rope-Starter (Cut to Required Length)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

60

Grip-Rope, Starter (Transfer handle to original engine or for service of Starter Rope Grip see OEM)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

65

Lawn-Boy 690837

Screw (Rewind Starter)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

456

Lawn-Boy 692299

Plate-Friction, Pawl

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

459

Lawn-Boy 281505s

Ratchet-Pawl

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

592

Lawn-Boy 690800

Nut (Rewind Starter)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

597

Lawn-Boy 691696

Screw

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

608

Lawn-Boy 497680

Starter-Rewind

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

689

Lawn-Boy 691855

Spring-Friction

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

1210

Lawn-Boy 498144

Pulley and Spring ASM

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

1211

Lawn-Boy 498144

Pulley and Spring ASM

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable
