10996 - Lawn-Boy Insight Walk-Behind Mower (SN: 311000001 - 311999999) (2011) Governor Assembly Briggs and Stratton Model 126T02-0183-B1 Parts Diagram

Insight Walk-Behind Mower

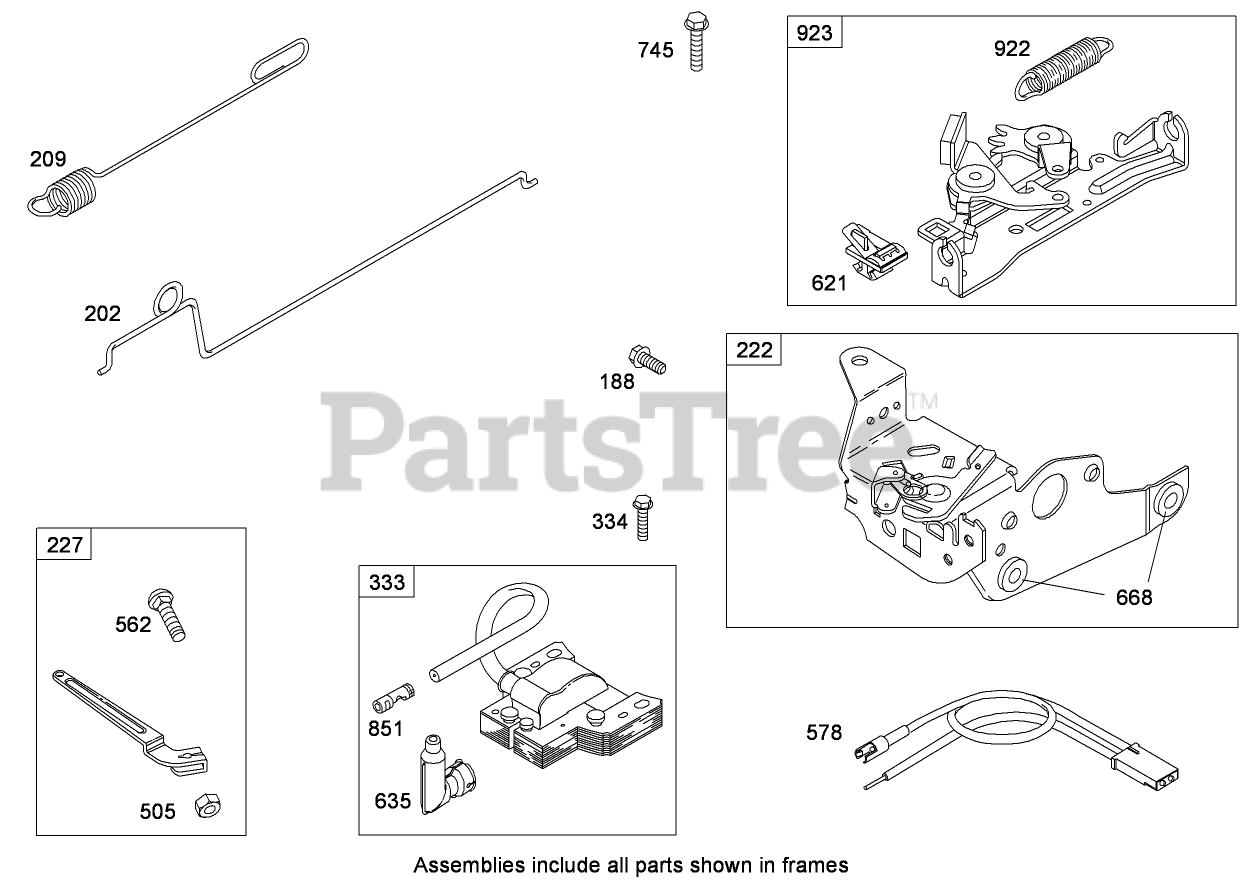

Governor Assembly Briggs and Stratton Model 126T02-0183-B1 Parts Diagram

  • Title
188

Lawn-Boy 693399

Screw (Control Bracket)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

202

Lawn-Boy 691829

Link-Governor, Mechanical

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

209

Lawn-Boy 691292

Spring-Governor

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

222

Lawn-Boy 793754

Bracket-Control

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

227

Lawn-Boy 690783

Lever-Control, Governor

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

333

Lawn-Boy 793353

Armature-Magneto

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

334

Lawn-Boy 691061

Screw (Magneto Armature)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

505

Lawn-Boy 691251

Nut (Governor Control Lever)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

562

Lawn-Boy 691119

Screw (Governor Control Lever)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

578

Lawn-Boy 696031

Wire Asm

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

621

Lawn-Boy 692310

Switch-Stop

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

635

Lawn-Boy 793351

Shield-Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

668

Lawn-Boy 493823

Spacer

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

668

Lawn-Boy 493823

Spacer

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

745

Lawn-Boy 691648

Screw (Brake)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

851

Lawn-Boy 692424

Terminal?Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

922

Lawn-Boy 691831

Spring-Brake

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

923

Lawn-Boy 691994

Brake ASM

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable
