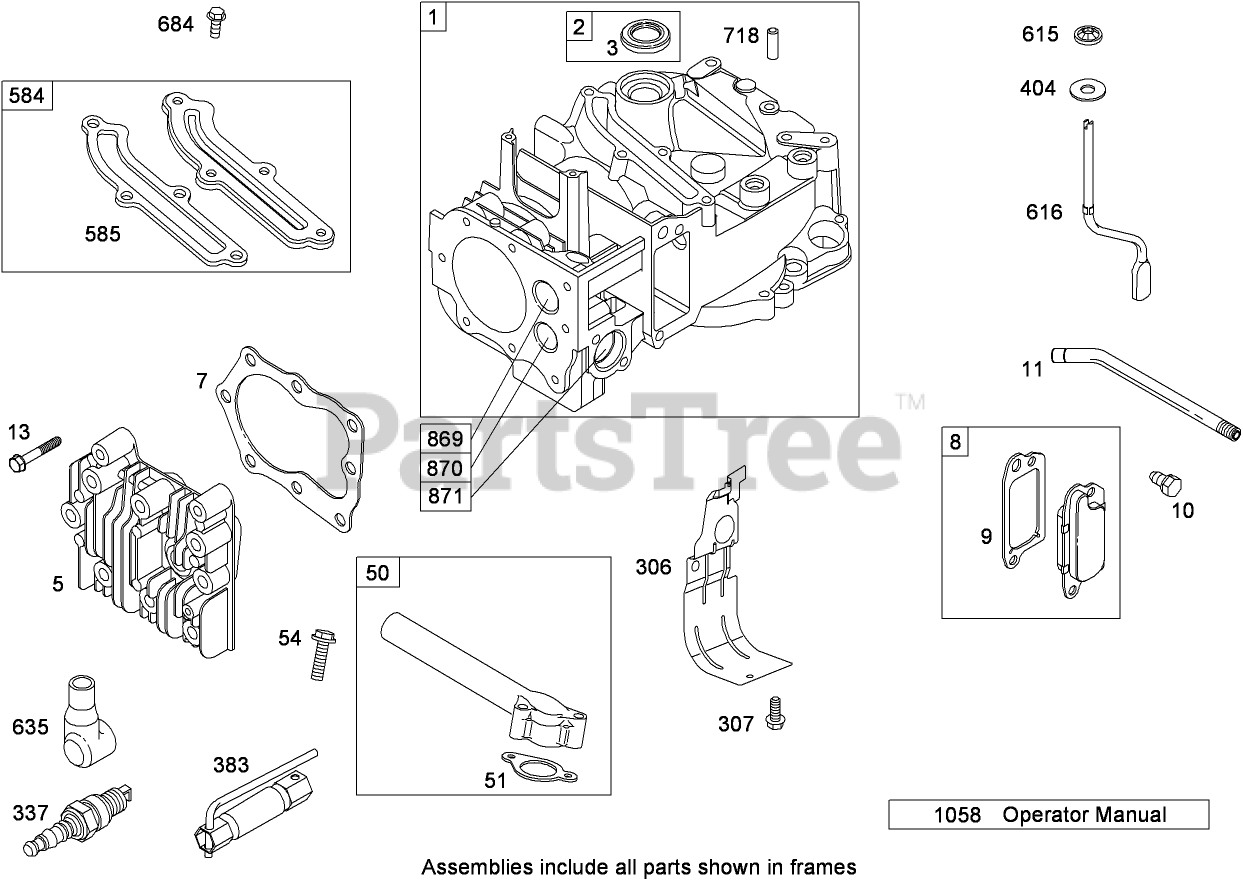

10996 - Lawn-Boy Insight Walk-Behind Mower (SN: 311000001 - 311999999) (2011) Cylinder Assembly Briggs and Stratton 126T02-0183-B1 Parts Diagram

Insight Walk-Behind Mower

Cylinder Assembly Briggs and Stratton 126T02-0183-B1 Parts Diagram

  • Title
1

Lawn-Boy 697322

Cylinder ASM

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

2

Lawn-Boy 399269

Bushing and Seal Kit

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

3

Lawn-Boy 299819s

Seal-Oil (Magneto Side)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

3

Lawn-Boy 299819s

Seal-Oil (Magneto Side)

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

5

Lawn-Boy 691160

Head-Cylinder

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

7

Lawn-Boy 692249

Gasket-Head, Cylinder

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

7

Lawn-Boy 692249

Gasket-Head, Cylinder

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

8

Lawn-Boy 695250

Breather Asm

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

9

Lawn-Boy 696125

Gasket-Breather

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

10

Lawn-Boy 691125

Screw (Breather Asm)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

11

Lawn-Boy 691781

Tube-Breather

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

13

Lawn-Boy 690912

Screw (Cylinder Head)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

50

Lawn-Boy 794305

Manifold-Intake

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

51

Lawn-Boy 794306

Gasket-Intake

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

51

Lawn-Boy 794306

Gasket-Intake

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

54

Lawn-Boy 691650

Screw (Intake Manifold)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

306

Lawn-Boy 790836

Shield-Cylinder

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

307

Lawn-Boy 690345

Screw (Breather Passage Cover)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

337

Lawn-Boy 802592s

Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

383

Lawn-Boy 89838s

Wrench-Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

404

Lawn-Boy 690272

Washer (Governor Crank)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

584

Lawn-Boy 697734

Cover-Passage, Breather

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

585

Lawn-Boy 691879

Gasket-Passage, Breather

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

585

Lawn-Boy 691879

Gasket-Passage, Breather

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

615

Lawn-Boy 690340

Retainer-Shaft, Governor

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

616

Lawn-Boy 698801

Crank-Governor

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

635

Lawn-Boy 66538s

Boot-Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

684

Lawn-Boy 690345

Screw (Breather Passage Cover)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

718

Lawn-Boy 690959

Pin-Locating

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

869

Lawn-Boy 691155

Seat-Valve (Intake)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

870

Lawn-Boy 690380

Seat-Valve (Exhaust)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

871

Lawn-Boy 262001

Bushing-Guide

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

871

Lawn-Boy 63709

Bushing-Guide

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

1058

Lawn-Boy 277039TRI

Operator Manual

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable
