10996 - Lawn-Boy Insight Walk-Behind Mower (SN: 311000001 - 311999999) (2011) Crankshaft Assembly Briggs and Stratton 126T02-0183-B1 Parts Diagram

Insight Walk-Behind Mower

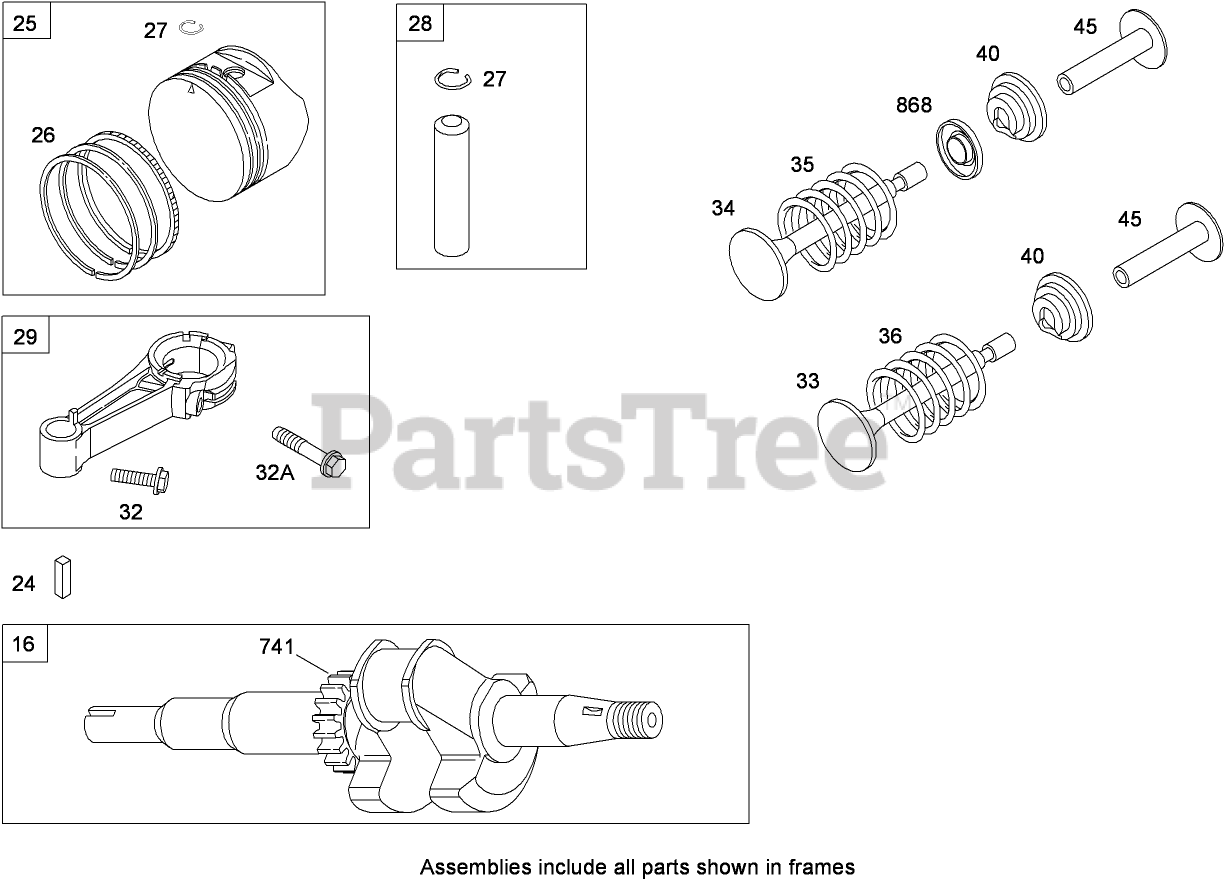

Crankshaft Assembly Briggs and Stratton 126T02-0183-B1 Parts Diagram

  • Title
16

Lawn-Boy 696009

Crankshaft

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

24

Lawn-Boy 222698s

Key-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

25

Lawn-Boy 791097

Piston ASM (STD)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

25

Lawn-Boy 791326

Piston ASM (.020 O S)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

26

Lawn-Boy 791098

Ring Set (STD)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

26

Lawn-Boy 791324

Ring Set (.020 O S)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

27

Lawn-Boy 691866

Lock-Pin, Piston

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

28

Lawn-Boy 499423

Pin-Piston

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

29

Lawn-Boy 499424

Rod-Connecting

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

32

Lawn-Boy 691664

Screw (Connecting Rod)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

32A

Lawn-Boy 695759

Screw (Connecting Rod)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

33

Lawn-Boy 262651s

Valve-Exhaust

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

34

Lawn-Boy 262652s

Valve-Intake

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

35

Lawn-Boy 691270

Spring-Valve (Exhaust)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

36

Lawn-Boy 691270

Spring-Valve (Exhaust)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

40

Lawn-Boy 692194

Retainer-Valve

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

45

Lawn-Boy 690548

Tappet-Valve

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

741

Lawn-Boy 790345

Gear-Timing

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

741

Lawn-Boy 790345

Gear-Timing

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

868

Lawn-Boy 697338

Seal-Valve

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable
