10996 - Lawn-Boy Insight Walk-Behind Mower (SN: 311000001 - 311999999) (2011) Blower Housing Assembly Briggs and Stratton 126T02-0183-B1 Parts Diagram

Insight Walk-Behind Mower

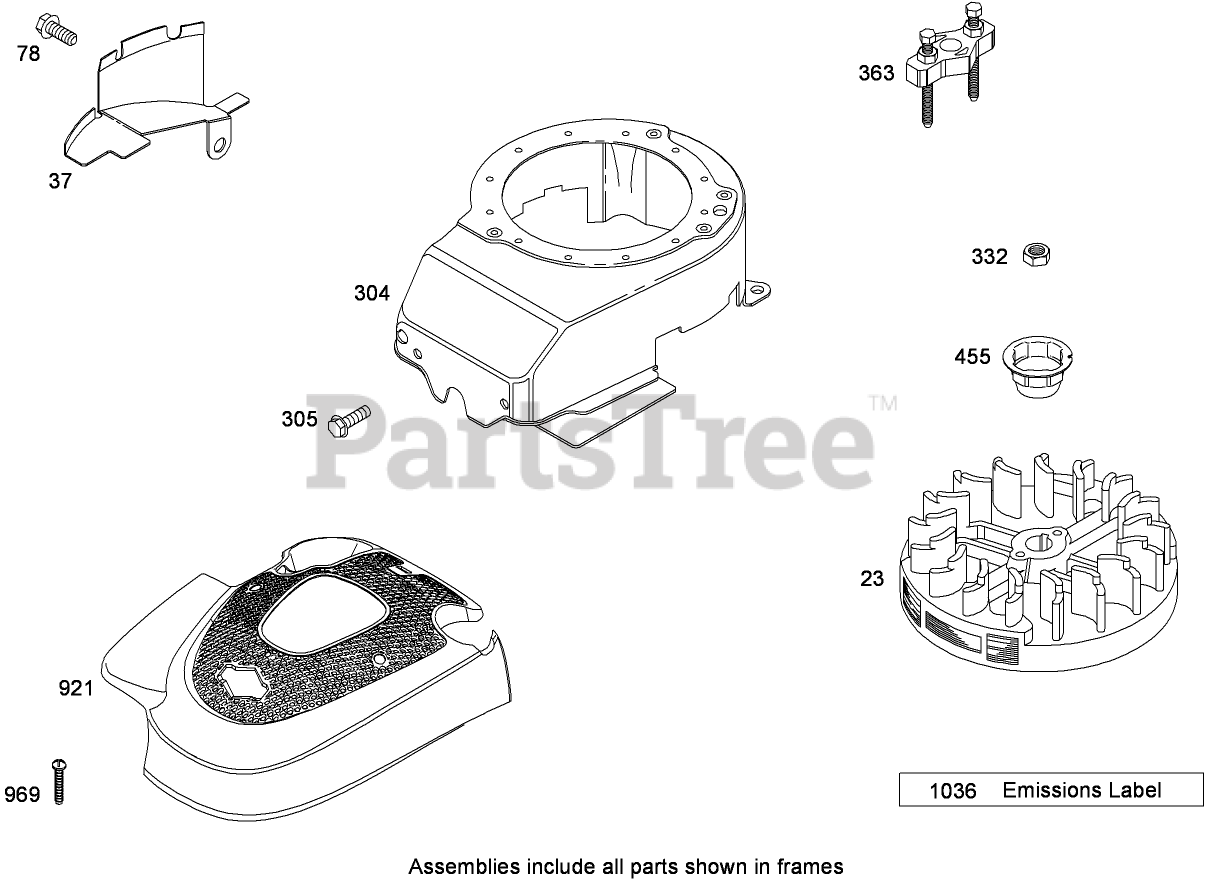

Blower Housing Assembly Briggs and Stratton 126T02-0183-B1 Parts Diagram

  • Title

23

Lawn-Boy 691987

Flywheel

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

37

Lawn-Boy 694086

Guard-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

78

Lawn-Boy 691108

Screw (Flywheel Guard)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

304

Lawn-Boy 790983

Housing-Blower

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

305

Lawn-Boy 691108

Screw (Flywheel Guard)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

332

Lawn-Boy 690662

Nut (Flywheel)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

363

Lawn-Boy 19069

Puller-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

455

Lawn-Boy 791760

Gasket-Passage, Breather

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

921

Lawn-Boy 792652

Cover-Housing, Blower

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

969

Lawn-Boy 691138

Screw (Blower Housing Cover)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

1036

Note: For Chrome Piston Ring Set-standard size-order Part No. 392330.

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available
