10996 - Lawn-Boy Insight Walk-Behind Mower (SN: 311000001 - 311999999) (2011) Air Cleaner Assembly Briggs and Stratton 126T02-0183-B1 Parts Diagram

Insight Walk-Behind Mower

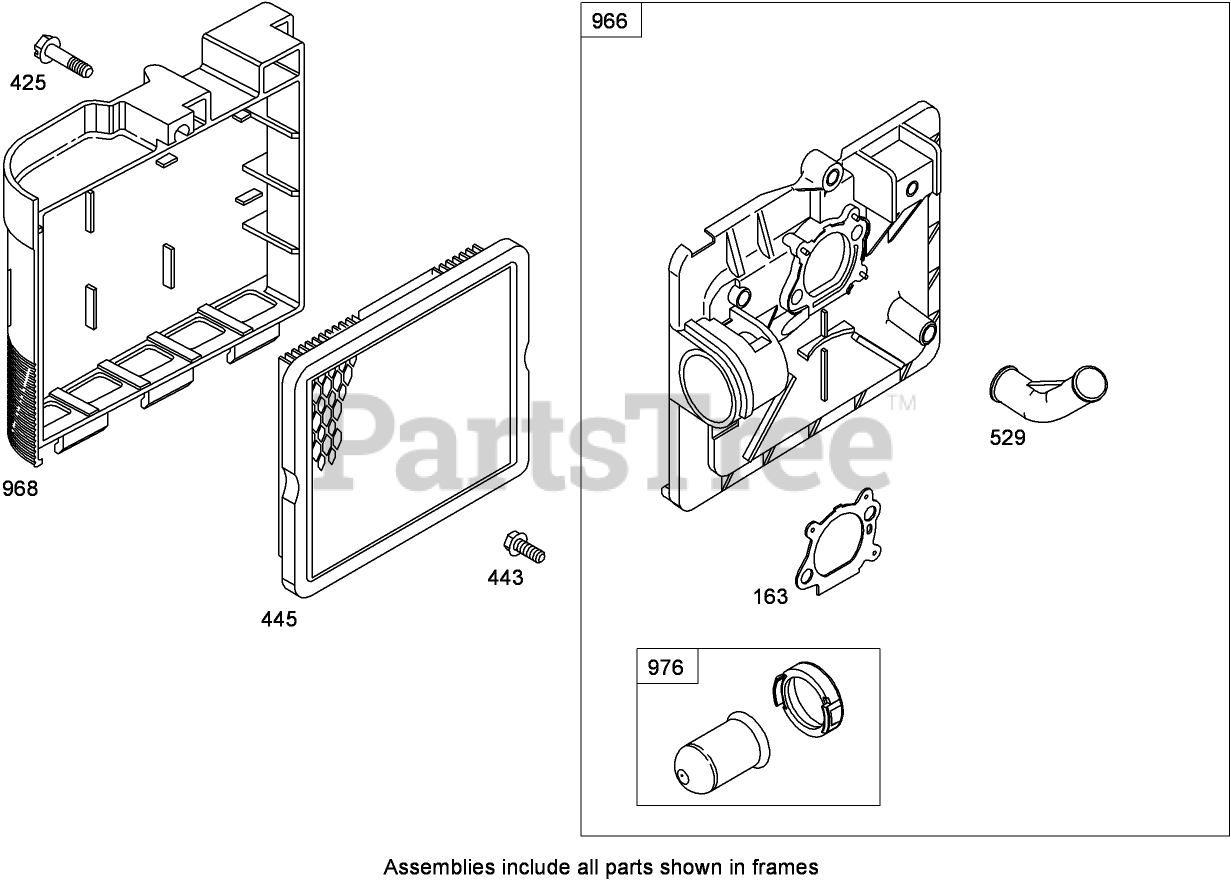

Air Cleaner Assembly Briggs and Stratton 126T02-0183-B1 Parts Diagram

  • Title
163

Lawn-Boy 272653s

Gasket-Cleaner, Air

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

163

Lawn-Boy 272653s

Gasket-Cleaner, Air

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

163

Lawn-Boy 272653s

Gasket-Cleaner, Air

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$

$

Currently unavailable

163

Lawn-Boy 272653s

Gasket-Cleaner, Air

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

425

Lawn-Boy 690670

Screw (Air Cleaner Cover)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

443

Lawn-Boy 692523

Screw (Air Cleaner Primer Base)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

445

Lawn-Boy 491588s

Filter-Cartridge, Air Cleaner

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

529

Lawn-Boy 691923

Tube-Breather (Air Cleaner Primer Base)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

966

Lawn-Boy 792040

Base-Primer, Air Cleaner

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

966

Lawn-Boy 792040

Base-Primer, Air Cleaner

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

968

Lawn-Boy 692298

Cover-Cleaner, Air

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

976

Lawn-Boy 694395

Primer-Carburetor

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable
