10995 - Lawn-Boy Insight Gold Walk-Behind Mower (SN: 260000001 - 260999999) (2006) REAR AXLE AND TRANSMISSION ASSEMBLY Parts Diagram

Insight Gold Walk-Behind Mower

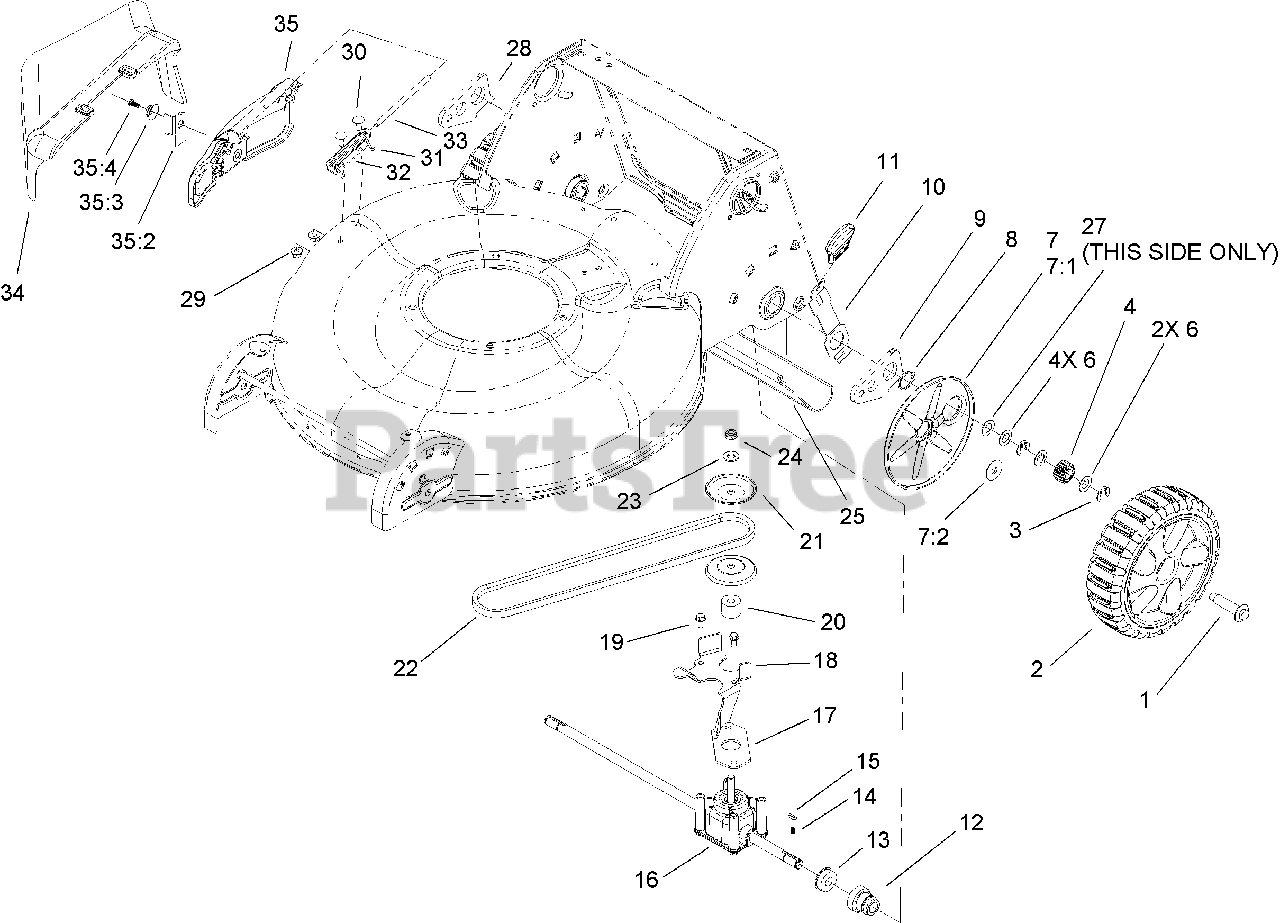

REAR AXLE AND TRANSMISSION ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 614650

BOLT-SHOULDER

$4.49

$

In Stock, Qty 6

0

2

Lawn-Boy 107-3906

REAR WHEEL ASM
(Superseded to 117-4104)

$45.99

$

In Stock, Qty 6

0

3

Lawn-Boy 65-2720

KLIPRING-LOCKING

$1.49

$

In Stock, Qty 6

0

4

Lawn-Boy 105-3040

Gear-Pinion, 15t

$5.49

$

In Stock, Qty 7

0

6

Lawn-Boy 105-6840

Washer-Thrust

$2.49

$

In Stock, Qty 8

0

7

Lawn-Boy 108-7505

WHEEL COVER ASM
(Superseded to 110-1793)

$11.99

$

In Stock, only 2 left!

0

7:1

COVER-WHEEL

Note: Not illustrated Not serviced separately

$

$

Not available

7:2

Lawn-Boy 614426

WASHER-STEPPED

$3.49

$

In Stock, Qty 20+

0

8

Lawn-Boy 32151-36

RING-RETAINING

$4.99

$

In Stock, only 4 left!

0

9

Lawn-Boy 108-9344

ARM-REAR PIVOT, LH

$12.99

$

In Stock, only 2 left!

0

10

Lawn-Boy 107-3880

ARM-SPRING, REAR

$14.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 107-1904

KNOB-LEVER, HOC

$

$

Not available

12

Lawn-Boy 104-8698

RETAINER-BEARING, HOC

$11.99

$

In Stock, Qty 7

0

13

Lawn-Boy 104-8699

BEARING-BALL

$4.99

$

In Stock, Qty 17

0

14

Lawn-Boy 39-9650

SPRING-COMPRESSION

$3.49

$

In Stock, Qty 13

0

$2.49

$

In Stock, Qty 5

0

16

Lawn-Boy 107-3860

TRANSMISSION ASM

$183.99

$

In Stock, Qty 8

0

17

Lawn-Boy 108-9756

GASKET-GEARBOX

$1.49

$

In Stock, Qty 11

0

18

Lawn-Boy 107-3884-03

BRACKET-TRANSMISSION

$9.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

20

$10.99

$

In Stock, Qty 17

0

21

Lawn-Boy 100-1176

PULLEY-HALF

$9.99

$

In Stock, only 2 left!

0

22

$18.99

$

In Stock, Qty 8

0

23

Lawn-Boy 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

24

Lawn-Boy 3296-5

NUT-LOCK

$3.49

$

In Stock, Qty 8

0

25

Lawn-Boy 107-3904

SHIELD-TRAILING
(Superseded to 120-7010)

$41.99

$

In Stock, only 1 left!

0

27

$7.99

$

In Stock, only 3 left!

0

28

Lawn-Boy 108-9343

ARM-REAR PIVOT, RH

$12.99

$

In Stock, only 1 left!

0

29

$2.99

$

In Stock, only 2 left!

0

30

Lawn-Boy 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

31

Lawn-Boy 99-5293

SPRING-TORSION

$10.99

$

In Stock, only 4 left!

0

32

Lawn-Boy 99-5292

BRACKET-COVER
(Superseded to 119-7079)

$12.99

$

In Stock, only 1 left!

0

33

Lawn-Boy 99-5291

ROD-COVER
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 13

0

34

Lawn-Boy 105-3028

CHUTE-DISCHARGE, SIDE

$11.99

$

In Stock, Qty 5

0

35

Lawn-Boy 106-8376

DISCHARGE DOOR ASM

$15.99

$

In Stock, only 1 left!

0

35:2

Lawn-Boy 107-0795

LATCH-DOOR

$1.49

$

In Stock, only 3 left!

0

35:3

Lawn-Boy 107-7456

CAP-DOOR
(Superseded to 138-3242)

$3.99

$

In Stock, only 4 left!

0

35:4

Lawn-Boy 107-7461

SCREW-PLASTITE

$1.49

$

In Stock, Qty 8
