10962 (ST 724) - Ariens 24" Sno-Thro Snow Blower, 7hp Tecumseh (SN: 006001 & Above) TRACTOR PARTS Parts Diagram

24" Sno-Thro Snow Blower, 7hp Tecumseh

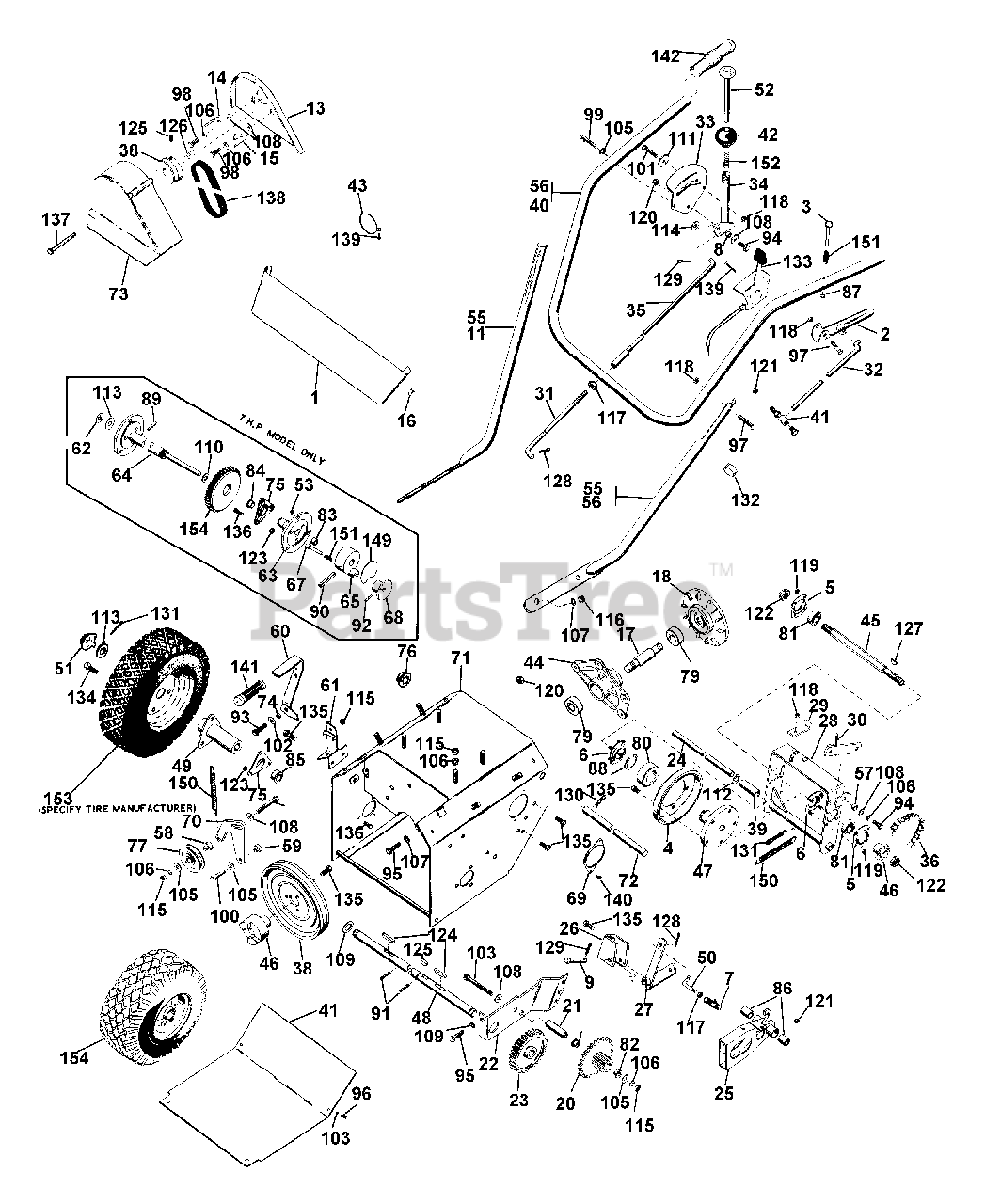

TRACTOR PARTS Parts Diagram

  • Title

1

Ariens 00203300

HANDLE BAR PANEL
(Superseded to 50203400)

$

$

Not available

2

Ariens 00203800

CLUTCH HANDLE
(Superseded to 00203851)

$39.99

$

Usually ships in 4-12 days

0

3

Ariens 00204500

CLUTCH LOCK PIN

$

$

Not available

4

Ariens 00300300

FRICTION DISC
(Superseded to 09475300)

$35.99

$

In Stock, Qty 20+

0

5

Ariens 00303100

BEARING FLANGE
(Superseded to 02414100)

$18.99

$

In Stock, only 1 left!

0

6

Ariens 00308500

BEARING FLANGE

$22.99

$

In Stock, only 1 left!

0

7

Ariens 00308600

BALL JOINT
(Superseded to 04110300)

$15.99

$

Usually ships in 4-12 days

0

8

Ariens 00607100

SPACER BUSHING .5 X .32 X .21

$14.99

$

Usually ships in 4-12 days

0

9

Ariens 01014400

CLEVIS PIN
(Superseded to 03105100)

$

$

Not available

10

Ariens 01014700

BOTTOM COV

$65.99

$

Usually ships in 4-12 days

0

11

Ariens 01015600

R H LOWER HANDLE BAR

Note: (Used Only On Model(s): 10965).

$135.99

$

Usually ships in 4-12 days

0

12

Ariens 01015700

L H LOWER HANDLE BAR

Note: (Used Only On Model(s): 10965).

$

$

Not available

13

Ariens 01015900

INNER BELT GUARD

$

$

Not available

14

Ariens 01016000

R H BELT FINGER

$

$

Not available

15

Ariens 01016100

L H BELT FINGER

$64.99

$

Usually ships in 4-12 days

0

16

Ariens 01019600

HANDLE BAR WASHER

$

$

Not available

17

Ariens 01020400

SPINDLE

$81.99

$

Usually ships in 4-12 days

0

18

Ariens 01020500

DRIVE PLATE
(Superseded to 01054600)

$163.99

$

Usually ships in 4-12 days

0

19

Ariens 01020600

JAW COUPLING

$190.99

$

In Stock, only 1 left!

0

20

Ariens 01020700

PINION & SPROCKET
(Superseded to 52400200)

$105.99

$

Usually ships in 4-12 days

0

21

Ariens 01020800

PINION STUB SHAFT

$232.99

$

Usually ships in 4-12 days

0

22

Ariens 01020900

SUPPORT BRACKET
(Superseded to 01046200)

$129.99

$

Usually ships in 4-12 days

0

23

Ariens 01021100

SPUR GEAR, FELLOWS 35T .750 ID

Note: (Used Only On Model(s): 10965).

$90.99

$

Usually ships in 4-12 days

0

24

Ariens 01021200

BRACKET PIN

$44.99

$

Usually ships in 4-12 days

0

25

Ariens 01021300

SLIDING FORK

$

$

Not available

26

Ariens 01021500

LEVER BRACKET

$

$

Not available

27

Ariens 01021700

TRANSFER LEVER
(Superseded to 01047600)

$

$

Not available

28

Ariens 01022200

DISC BRCKT

$6.99

$

Usually ships in 4-12 days

0

29

Ariens 01022600

NEUTRAL CATCH

$

$

Not available

30

Ariens 01022700

THROWOUT LEVER

$

$

Not available

31

Ariens 01022800

LOWER SHIFT ROD
(Superseded to 02424700)

$77.99

$

In Stock, only 1 left!

0

32

Ariens 01023000

CLTCH ROD

$30.99

$

Usually ships in 4-12 days

0

33

Ariens 01023100

SHIFT QUADRANT

$

$

Not available

34

Ariens 01023200

SHIFT HANDLE

$

$

Not available

35

Ariens 01023500

SHIFT ROD

$

$

Not available

36

Ariens 01023700

ROLLER CHAIN

$35.99

$

Usually ships in 4-12 days

0

37

Ariens 01023800

ENGINE SHEAVE

$

$

Not available

38

Ariens 01023900

SHEAVE

$

$

Not available

39

Ariens 01024000

SPACER

$

$

Not available

40

Ariens 01024100

UPPER HANDLE BAR
(Superseded to 01035700)

Note: (Used Only On Model(s): 10965).

$

$

Not available

41

Ariens 01024700

BALL JOINT

$

$

Not available

42

Ariens 01024800

SHIFT BALL

$

$

Not available

43

Ariens 01025000

COVER

$

$

Not available

44

Ariens 01026700

BEARING HOUSING

$232.99

$

Usually ships in 4-12 days

0

45

Ariens 01027500

HEX SHAFT

$40.99

$

In Stock, only 1 left!

0

46

Ariens 01027600

9 TOOTH SPROCKET

$41.99

$

Usually ships in 4-12 days

0

47

Ariens 01027700

FRICTION DISC HUB
(Superseded to 01218300)

$

$

Not available

48

Ariens 01027900

AXLE SHAFT

Note: (Used Only On Model(s): 10965).

$119.99

$

Usually ships in 4-12 days

0

49

Ariens 01028300

WHEEL HUB

Note: (Used Only On Model(s): 10965).

$

$

Not available

50

Ariens 01028500

CONNECTING LINK

$

$

Not available

51

Ariens 01028800

HUB CAP

Note: (Used Only On Model(s): 10965).

$

$

Not available

51

Ariens 01028800

HUB CAP

Note: (Used Only On Model(s): 10962,10954,10942).

$

$

Not available

52

Ariens 01029300

SHIFT RELEASE HANDLE

$

$

Not available

53

Ariens 01035400

HYDRAULIC DRIVE FITTING

Note: (Used Only On Model(s): 10962,10954,10942).

$5.99

$

In Stock, Qty 9

0

54

Ariens 01035500

R H LOWER HANDLE BAR
(Superseded to 01015600)

Note: (Used Only On Model(s): 10962,10954,10942).

$135.99

$

Usually ships in 4-12 days

0

55

Ariens 01035600

L H LOWER HANDLE BAR
(Superseded to 01015700)

Note: (Used Only On Model(s): 10962,10954,10942).

$

$

Not available

56

Ariens 01035700

UPPER HNDLBAR PLATED

Note: (Used Only On Model(s): 10962,10954,10942).

$

$

Not available

57

Ariens 01035800

SPACER BUSHING .5 X .32 X .163

$5.99

$

Usually ships in 4-12 days

0

58

Ariens 01036000

BEARING SPACER

$

$

Not available

59

Ariens 01036100

SHOULDER SPACER

$

$

Not available

60

Ariens 01036200

CLTCH LEVER

$

$

Not available

61

Ariens 01036300

CLTCH BRCKT

$

$

Not available

62

Ariens 01036600

PUSHNUT

Note: (Used Only On Model(s): 10962,10954,10942).

$5.99

$

Usually ships in 4-12 days

0

63

Ariens 01036900

L H AXLE
(Superseded to 51003000)

Note: (Used Only On Model(s): 10962,10954,10942).

$180.99

$

In Stock, only 1 left!

0

64

Ariens 01037000

R H AXLE SHAFT

Note: (Used Only On Model(s): 10962,10954,10942).

$121.99

$

In Stock, only 1 left!

0

65

Ariens 01037200

LOCKOUT HUB

Note: (Used Only On Model(s): 10962,10954,10942).

$85.99

$

In Stock, only 1 left!

0

66

Ariens 01037300

CARBURETOR COVER

Note: (Used Only On Model(s): 10962,10954,10942).

$

$

Not available

67

Ariens 01037400

PIN

Note: (Used Only On Model(s): 10962,10954,10942).

$

$

Not available

68

Ariens 01037500

KNOB

Note: (Used Only On Model(s): 10962,10954,10942).

$53.99

$

Usually ships in 4-12 days

0

69

Ariens 01038200

COVER

$

$

Not available

70

Ariens 01038900

IDLER ARM

$33.99

$

Usually ships in 4-12 days

0

71

Ariens 01039100

TRACTOR FRAME

$

$

Not available

72

Ariens 01039400

FORK SHAFT

$

$

Not available

73

Ariens 01040000

OUTER COVER
(Superseded to 51003300)

$67.99

$

In Stock, only 1 left!

0

74

Ariens 01103100

SPACER .50 X .32 X .42

$3.99

$

In Stock, Qty 10

0

75

Ariens 01202300

SUPPORT, BEARING

$67.99

$

In Stock, only 4 left!

0

76

Ariens 01208600

CAP, .50 ROD YWZC

$2.99

$

Usually ships in 4-12 days

0

77

Ariens 01213200

IDLER
(Superseded to 52007000)

$39.99

$

In Stock, Qty 20+

0

78

Ariens 61299900

DIFFERENTIAL ASSEMBLY
(Superseded to 51202000)

Note: (Used Only On Model(s): 10962,10954,10942).

$

$

Not available

79

Ariens 05406300

BRG-BALL .750X1.750X.50

$25.99

$

In Stock, Qty 20+

0

80

Ariens 05407400

BRG-N-THRST 1.26X2.18X.63
(Superseded to 05408300)

$

$

Not available

81

Ariens 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, Qty 20+

0

82

Ariens 05502600

BSHG-FLG .625X.750X.500X.875BR
(Superseded to 05500111)

$1.49

$

In Stock, Qty 20+

0

83

Ariens 05502900

BSHG-SLV .562X.625X.625 BRZ

Note: (Used Only On Model(s): 10962,10954,10942).

$13.99

$

In Stock, Qty 11

0

84

Ariens 05503000

BSHG-FLG.875X1X.625X1.250 BR

Note: (Used Only On Model(s): 10962,10954,10942).

$10.99

$

In Stock, Qty 15

0

85

Ariens 05503900

BSHG-FLG .750X1.000X.625X1.250

Note: (Used Only On Model(s): 10965).

$12.99

$

In Stock, Qty 7

0

86

Ariens 05504000

BSHG-SLV .500X.625X.500 BR

$13.99

$

In Stock, only 2 left!

0

87

Ariens 05703700

RG-RTNG-EXT .250X.031

$6.99

$

Usually ships in 4-12 days

0

88

Ariens 05704300

RG-RTNG-EXT 1.250X.050

$3.99

$

In Stock, only 3 left!

0

89

Ariens 05800300

PIN-ROLL .188X1.25

Note: (Used Only On Model(s): 10962,10954,10942).

$0.99

$

In Stock, Qty 20+

0

90

Ariens 05800700

PIN-ROLL .250X1.25

Note: (Used Only On Model(s): 10962,10954,10942).

$0.99

$

In Stock, Qty 20+

0

91

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

Note: (Used Only On Model(s): 10965).

$2.49

$

In Stock, only 2 left!

0

92

Ariens 05803200

PIN-ROLL .093X1.00

Note: (Used Only On Model(s): 10962,10954,10942).

$0.99

$

Usually ships in 4-12 days

0

93

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

94

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

95

Ariens 05902300

BLT-HEX .38-16X.75 PL GR2
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

96

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 20+

0

97

Ariens 05905000

BLT-HEX .25-20X1.50 PL GR5
(Superseded to 05952500)

$1.49

$

In Stock, Qty 20+

0

98

Ariens 05905300

BLT-HEX .31-24X.75 PL GR5
(Superseded to 05947300)

$1.49

$

In Stock, Qty 20+

0

99

Ariens 05905600

BLT-HEX .25-20X1.25 PL GR5
(Superseded to 05947400)

$1.99

$

In Stock, Qty 5

0

100

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

$2.49

$

In Stock, Qty 12

0

101

Ariens 05907200

BLT-HEX .25-20X1.25

$

$

Not available

102

Ariens 05907300

BLT-HEX .31-18X1.75 PL GR2
(Superseded to 05957400)

$2.99

$

In Stock, Qty 8

0

103

Ariens 05907400

BLT-HEX .31-18X2.75 PL GR2
(Superseded to 05960600)

$2.49

$

In Stock, only 2 left!

0

104

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$2.99

$

In Stock, Qty 15

0

105

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$

$

Not available

106

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

107

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 1 left!

0

108

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

109

Ariens 06403300

WSHR-FL-STL .755X1.375X.125

Note: (Used Only On Model(s): 10965).

$3.99

$

In Stock, only 1 left!

0

110

Ariens 06403600

WSHR-FL-STL .880X1.380X.062

Note: (Used Only On Model(s): 10962,10954,10942).

$6.99

$

Usually ships in 4-12 days

0

111

Ariens 06403700

WSHR-FL-STL .281X1.250X.048PL

$

$

Not available

112

Ariens 06403800

WSHR-FL-STL .505X.875X.024 PL

$2.49

$

In Stock, only 2 left!

0

113

Ariens 06404200

WSHR-FL-STL .755X2.000X.125
(Superseded to 06444800)

Note: (Used Only On Model(s): 10965).

$4.99

$

Usually ships in 4-12 days

0

113

Ariens 06404200

WSHR-FL-STL .755X2.000X.125
(Superseded to 06444800)

Note: (Used Only On Model(s): 10962,10954,10942).

$4.99

$

Usually ships in 4-12 days

0

114

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

115

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

116

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

117

Ariens 06503100

NUT-HEX .312-24 PL
(Superseded to 06529500)

$1.99

$

Usually ships in 4-12 days

0

118

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

119

Ariens 06504100

NUT-LK TOP 10-24 PL

$1.99

$

Usually ships in 4-12 days

0

120

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

121

Ariens 06504300

NUT-LK-CTR .312-24 PL
(Superseded to 06537000)

$

$

Not available

122

Ariens 06505400

NUT-LK-CTR .50-20 PL
(Superseded to 06530000)

$2.49

$

Usually ships in 4-12 days

0

123

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 20+

0

124

Ariens 06601100

KEY-FTHR .188X1.25X.187 SAE

Note: (Used Only On Model(s): 10965).

$8.49

$

In Stock, Qty 7

0

125

Ariens 06601200

KEY-WDRF .25X.750X.313 SAE91

Note: (Used Only On Model(s): 10965).

$2.99

$

In Stock, Qty 20+

0

126

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$1.49

$

In Stock, Qty 5

0

127

Ariens 06601500

KEY-WDRF .125X.625X.250 SAE5

$2.49

$

In Stock, only 1 left!

0

128

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

129

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

130

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

Usually ships in 4-12 days

0

131

Ariens 06701400

PIN-COTR .12 X 1.25 PL
(Superseded to 06712600)

Note: (Used Only On Model(s): 10965).

$0.99

$

In Stock, Qty 20+

0

131

Ariens 06701400

PIN-COTR .12 X 1.25 PL
(Superseded to 06712600)

Note: (Used Only On Model(s): 10962,10954,10942).

$0.99

$

In Stock, Qty 20+

0

132

Ariens 06901200

CLAMP

$5.49

$

In Stock, only 1 left!

0

133

Ariens 06903200

THROTTLE CONTROL

$

$

Not available

134

Ariens 07000500

BLT-WHL .50-20X.50 GR5 PL
(Superseded to 07416900)

$13.99

$

In Stock, only 3 left!

0

135

Ariens 07000900

BLT-SERHFWH .31-18X.50 PL

$2.99

$

Usually ships in 4-12 days

0

136

Ariens 07001100

SCR-SLTR-SERNK .25-20X.62 PL
(Superseded to 07028600)

$3.99

$

In Stock, Qty 20+

0

137

Ariens 07001300

BLT-HFWH .31-24X3.62 PL

$

$

Not available

138

Ariens 07204700

V-BELT, SAE 380-RAW EDGE

$29.99

$

In Stock, Qty 6

0

139

Ariens 07400100

SCR-TAP 10-12X.50 CRPH PL A

$

$

Not available

140

Ariens 07402100

SCR-TAP 10-24X.25 CRSLPH PL 1A
(Superseded to 07415500)

$

$

Not available

141

Ariens 07500500

GRIP

$

$

Not available

142

Ariens 07500600

GRIP
(Superseded to 07500113)

$

$

Not available

143

Ariens 07801000

SNO-THRO HELICON PATENT LABEL

$

$

Not available

144

Ariens 07801100

CLUTCH LABEL

$

$

Not available

145

Ariens 07801300

CARB. COVER LABEL

$

$

Not available

146

Ariens 07801600

SNO THRO SHIFT LABEL

$

$

Not available

147

Ariens 07803400

5 H P ENGINE DECAL
(Superseded to 07861100)

Note: (Used Only On Model(s): 10965).

$

$

Not available

148

Ariens 07803700

7 HP ENGINE DECAL
(Superseded to 07863700)

Note: (Used Only On Model(s): 10962,10954,10942).

$

$

Not available

149

Ariens 07803800

DIFFERENTIAL LOCK LABEL
(Superseded to 07864400)

Note: (Used Only On Model(s): 10962,10954,10942).

$28.99

$

Usually ships in 4-12 days

0

150

Ariens 08300400

SG-TENS .125X.437X5.5 WLD 20

$20.99

$

In Stock, Qty 6

0

151

Ariens 08300700

SG-COMP .028X.34X1.062 WLD75

Note: (Used Only On Model(s): 10965).

$

$

Not available

151

Ariens 08300700

SG-COMP .028X.34X1.062 WLD75

Note: (Used Only On Model(s): 10962,10954,10942).

$

$

Not available

152

Ariens 08301500

SG-COMP ??X.44X?? WLD 10

$5.99

$

Usually ships in 4-12 days

0

153

Ariens 61098500

TIRE & WHEEL ASSEMBLY GOODYEAR
(Superseded to 07116500)

Note: (Used Only On Model(s): 10965,10962,10942).

$

$

Not available

153

Ariens 07104600

TIRE 4.10/3.50X6

Note: (Used Only On Model(s): 10965,10962,10942).

$

$

Not available

153

Ariens 07104900

TIRE 4.10/3.50X6 2PLY

Note: (Used Only On Model(s): 10965,10962,10942).

$33.99

$

In Stock, only 2 left!

0

153

Ariens 07105000

TUBE

Note: (Used Only On Model(s): 10965,10962,10942).

$11.99

$

Usually ships in 4-12 days

0

153

Ariens 07105200

WHL 6 IN O.D.
(Superseded to 07103800)

Note: (Used Only On Model(s): 10965,10962,10942).

$

$

Not available

154

Ariens 61299100

TIRE & WHEEL ASSEMBLY CARLISLE
(Superseded to 07117200)

Note: (Used Only On Model(s): 10954).

$

$

Not available

154

Ariens 07106600

TIRE 12.5/4.50-6
(Superseded to 07102800)

Note: (Used Only On Model(s): 10954).

$

$

Not available

164

Ariens 07105000

TUBE

Note: (Used Only On Model(s): 10954).

$11.99

$

Usually ships in 4-12 days

0

164

Ariens 07105200

WHL 6 IN O.D.
(Superseded to 07103800)

Note: (Used Only On Model(s): 10954).

$

$

Not available
