10928 - Lawn-Boy 53cm Walk-Behind Mower, Canada (SN: 200000001 - 200999999) (2000) REAR DRIVE ASSEMBLY Parts Diagram

53cm Walk-Behind Mower, Canada

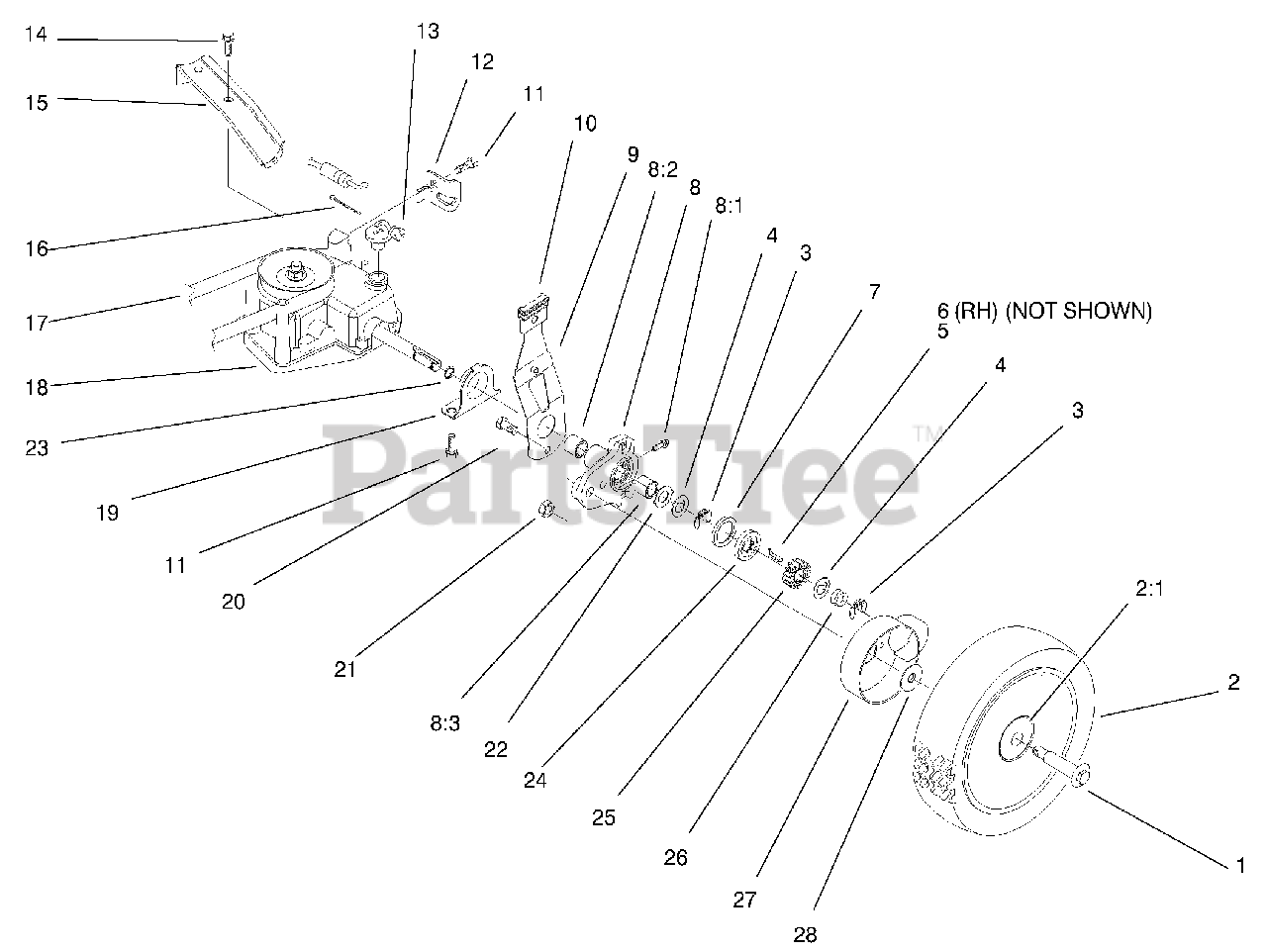

REAR DRIVE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 92-1057

Bolt-Shoulder

$3.99

$

In Stock, Qty 9

0

2

Lawn-Boy 99-8136

Wheel ASM

$71.99

$

Usually ships in 3-6 days

0

2:1

$2.99

$

In Stock, Qty 8

0

3

Lawn-Boy 65-2720

Ring-Klip

$1.49

$

In Stock, Qty 6

0

4

Lawn-Boy 65-4740

Washer-Thrust, Keyed

$2.49

$

In Stock, only 2 left!

0

5

Lawn-Boy 66-6050

Key-Rocking, LH
(Superseded to 139-6644)

$7.49

$

In Stock, Qty 8

0

6

Lawn-Boy 66-6040

Key-Rocking, RH
(Superseded to 139-6643)

$7.49

$

In Stock, Qty 12

0

7

Lawn-Boy 65-4710

Ring-Friction

$3.49

$

In Stock, Qty 5

0

8

Lawn-Boy 65-5043

Pivot Arm Assembly

$

$

Not available

8:1

Lawn-Boy 302-56

Fitting-Zerk

$5.49

$

In Stock, only 1 left!

0

8:2

$3.99

$

Usually ships in 3-6 days

0

8:3

$4.99

$

In Stock, Qty 6

0

9

Lawn-Boy 65-5441

Spring Arm ASM

$

$

Not available

10

Lawn-Boy 25-7740

Knob-Arm

$4.99

$

In Stock, Qty 8

0

11

$2.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 76-2930

Cable Retainer

$

$

Not available

13

Lawn-Boy 76-0920

Shift Lever

$7.49

$

Usually ships in 3-6 days

0

14

Lawn-Boy 49-2040

Screw-Taptite

$2.49

$

In Stock, Qty 20+

0

15

Lawn-Boy 65-5190-03

Bracket-Guide, Belt

$23.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 3272-5

Pin-Cotter

$1.49

$

In Stock, Qty 5

0

17

$14.99

$

In Stock, Qty 15

0

18

Lawn-Boy 62-6673

Gearcase Assembly

$876.99

$

Usually ships in 3-6 days

0

19

$9.99

$

Usually ships in 3-6 days

0

20

$1.99

$

In Stock, Qty 20+

0

$2.99

$

In Stock, Qty 8

0

22

Lawn-Boy 65-4730

Washer-Arm, Pivot

$2.49

$

In Stock, only 3 left!

0

23

$4.49

$

Usually ships in 3-6 days

0

24

Lawn-Boy 65-4760

Washer-Clutch

$1.49

$

In Stock, Qty 20+

0

25

Lawn-Boy 65-4750

Gear-Pinion

$11.99

$

In Stock, Qty 18

0

26

Lawn-Boy 65-4720

Spring-Compression

$1.49

$

In Stock, Qty 20+

0

27

Lawn-Boy 74-1660

Cover-Wheel

$8.49

$

In Stock, only 3 left!

0

28

Lawn-Boy 74-1671

Spacer-Cover, Wheel

$1.99

$

In Stock, Qty 12

0
