10928 - Lawn-Boy 53cm Walk-Behind Mower, Canada (SN: 200000001 - 200999999) (2000) DECK ASSEMBLY Parts Diagram

53cm Walk-Behind Mower, Canada

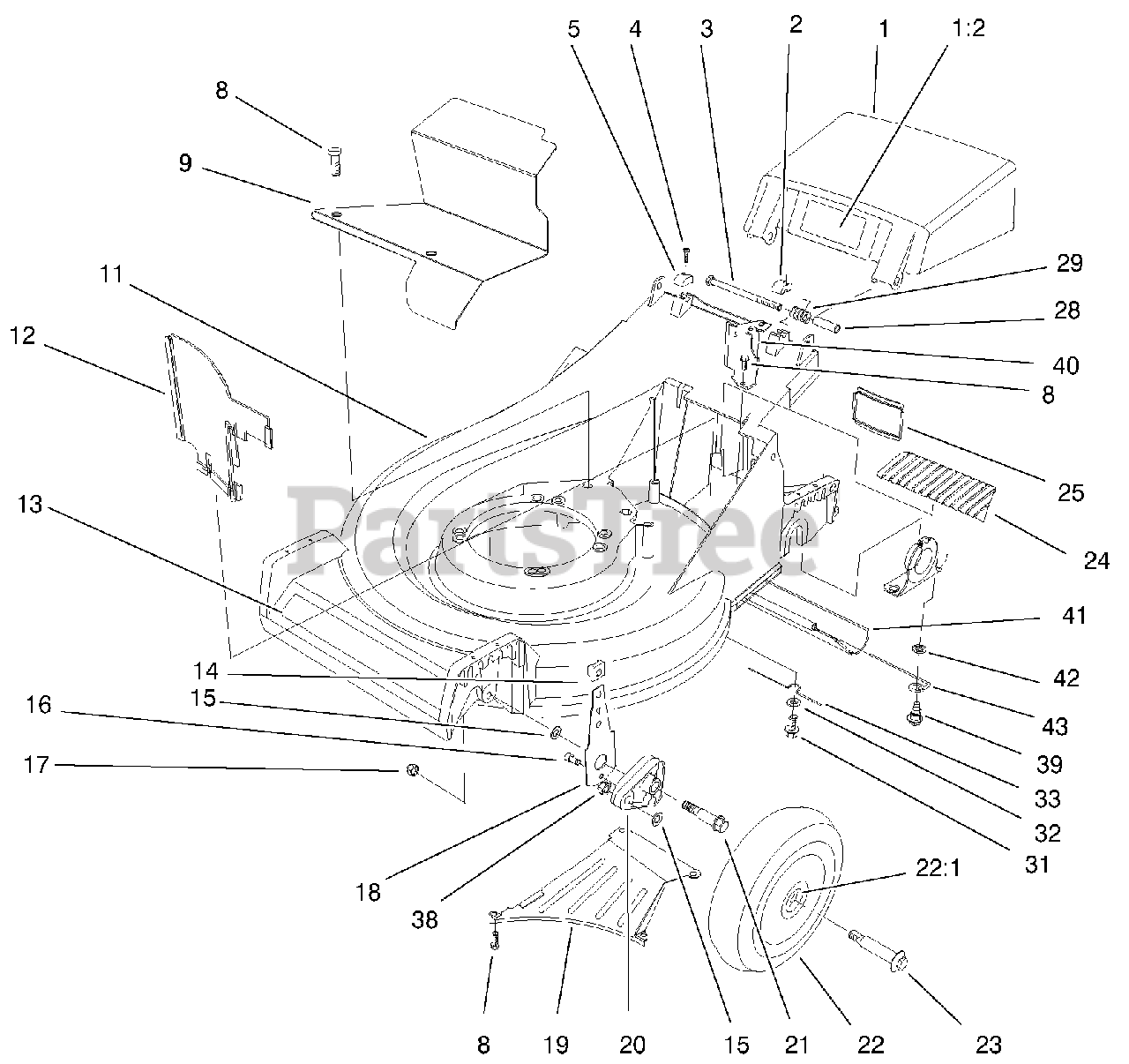

DECK ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 17-1569

Bag Door

$118.99

$

Usually ships in 3-6 days

0

1:2

Lawn-Boy 93-4105

Decal-Danger
(Superseded to 112-8759)

$18.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 71-7900

Cap-Hinge Bolt LH

$5.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 322-29

Screw-HH

$2.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 65-5210

Screw-Allen Hd

$

$

Not available

5

Lawn-Boy 71-7910

Cap-Hinge Bolt RH

$5.99

$

Usually ships in 3-6 days

0

8

$2.99

$

In Stock, Qty 16

0

9

Lawn-Boy 100-4381-03

Panel-Screen

$

$

Not available

11

$

$

Not available

12

Lawn-Boy 66-0020

Vertical Panel

$

$

Not available

13

Lawn-Boy 100-8778

Decal-Deck

$

$

Not available

14

Lawn-Boy 25-7740

Knob-Arm

$4.99

$

In Stock, Qty 8

0

15

$2.99

$

In Stock, Qty 18

0

16

$1.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 3296-6

Nut-Lock, NI

$1.99

$

In Stock, Qty 20+

0

18

Lawn-Boy 66-0541

Spring Arm ASM-Front

$18.99

$

In Stock, Qty 6

0

19

Lawn-Boy 71-9640-03

Discharge Ramp

$

$

Not available

20

Lawn-Boy 66-0580

Arm-Pivot, Front

$18.99

$

In Stock, only 1 left!

0

21

Lawn-Boy 66-0560

Screw-Shoulder

$4.99

$

In Stock, Qty 16

0

22

Lawn-Boy 92-9592

Wheel ASM

$60.99

$

In Stock, only 4 left!

0

22:1

$2.99

$

In Stock, Qty 8

0

23

Lawn-Boy 92-1057

Bolt-Shoulder

$3.99

$

In Stock, Qty 7

0

24

Lawn-Boy 71-9920

Cover-Top

$

$

Not available

25

Lawn-Boy 71-9650

Access Cover

$7.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 71-8580

Door Spacer

$2.49

$

Usually ships in 3-6 days

0

29

Lawn-Boy 71-9840

Door Spring

$14.99

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

32

Lawn-Boy 3256-24

Washer-Flat

$0.99

$

In Stock, Qty 12

0

33

Lawn-Boy 66-0620

Belt Retainer

$

$

Not available

$2.99

$

In Stock, Qty 6

0

39

Lawn-Boy 5-2490

Screw-Shoulder

$

$

Not available

40

Lawn-Boy 66-0030-03

Bracket-Cable Support

$

$

Not available

41

Lawn-Boy 65-5350

Trailing Shield

$50.99

$

Usually ships in 3-6 days

0

42

Lawn-Boy 3256-23

Washer-Flat

$2.49

$

In Stock, Qty 20+

0

43

Lawn-Boy 76-1980

Shield Hanger

$

$

Not available
