10927 - Lawn-Boy 51cm Walk-Behind Mower, Canada (SN: 210000001 - 210999999) (2001) HOUSING, HANDLE BRACKETS & WHEEL ASSEMBLY Parts Diagram

51cm Walk-Behind Mower, Canada

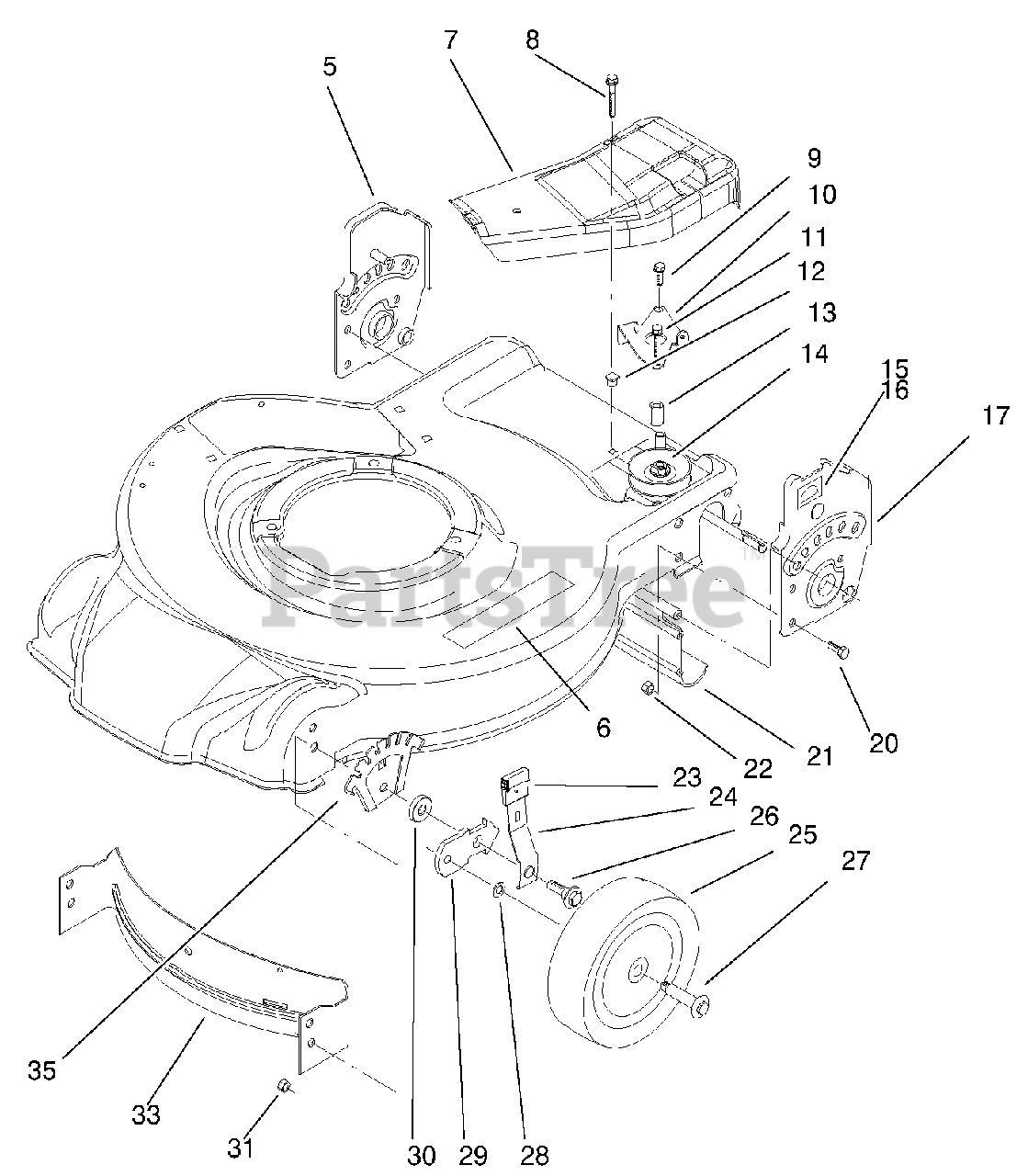

HOUSING, HANDLE BRACKETS & WHEEL ASSEMBLY Parts Diagram

  • Title
5

Lawn-Boy 93-0234

ASM-RH Handle Bracket

$23.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 93-4105

Decal-Danger
(Superseded to 112-8759)

$18.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 93-0209

Cover-Transmission

$

$

Not available

8

Lawn-Boy 32144-119

Screw-Pth

$

$

Not available

9

Lawn-Boy 49-2040

Screw-Tapping

$2.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 93-0228-03

Guide-Transmission

$

$

Not available

11

Lawn-Boy 92-1616

Screw-HWHTF

$3.49

$

In Stock, only 1 left!

0

12

Lawn-Boy 605120

Grommet

$4.49

$

In Stock, Qty 7

0

13

Lawn-Boy 614673

Bushing-Plate, Actuator

$12.99

$

In Stock, only 2 left!

0

14

Lawn-Boy 104-7678

Gear Case ASM

$415.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 93-6670

Decal-HOC

$

$

Not available

16

Lawn-Boy 93-6671

Decal-HOC

$

$

Not available

17

Lawn-Boy 93-0233

ASM-LH Handle Bracket

$

$

Not available

20

Lawn-Boy 322-3

Screw-HH

$0.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 92-8647

Shield-Trailing

$41.99

$

In Stock, only 1 left!

0

22

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

23

Lawn-Boy 92-1008

Knob-Lever, Height Adjustment

$14.99

$

In Stock, only 2 left!

0

24

Lawn-Boy 614687

Arm-Front Spring

$21.99

$

In Stock, only 3 left!

0

25

Lawn-Boy 92-9591

Wheel ASM

$27.99

$

In Stock, only 4 left!

0

26

Lawn-Boy 614650

Bolt-Shoulder

$4.49

$

In Stock, Qty 20+

0

27

Lawn-Boy 614672

Bolt-Shoulder

$2.99

$

In Stock, only 4 left!

0

28

$2.99

$

In Stock, Qty 20+

0

29

Lawn-Boy 95-7403-03

Bracket-Height Adjustment, Wheel

$

$

Not available

30

Lawn-Boy 92-4890

Washer-Wheel

$8.99

$

In Stock, only 2 left!

0

31

Lawn-Boy 3296-39

Nut-Lock, NI

$2.99

$

In Stock, Qty 20+

0

33

Lawn-Boy 100-1179-03

Baffle-Front

$

$

Not available

35

Lawn-Boy 92-4881-03

Plate-Height Adjustment

$29.99

$

Usually ships in 3-6 days

0
