10926 - Lawn-Boy 48cm Walk-Behind Mower, Canada (SN: 200000001 - 200999999) (2000) HOC & WHEEL ASSEMBLY Parts Diagram

48cm Walk-Behind Mower, Canada

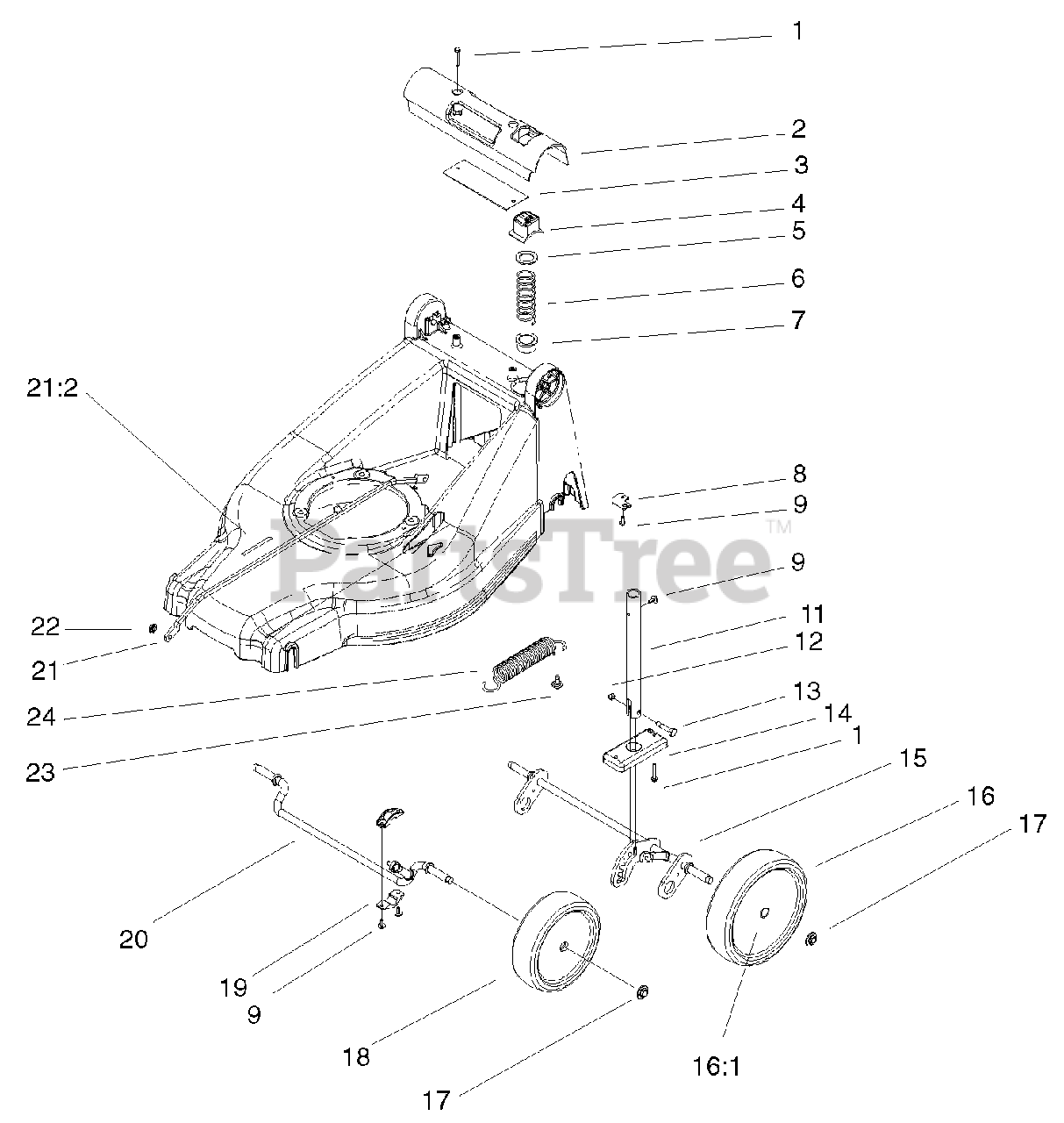

HOC & WHEEL ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 100-4352

Screw-HWH

$2.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 99-6487

Handle-Deck

$

$

Not available

3

Lawn-Boy 100-4383-03

Cover-Handle

$

$

Not available

4

Lawn-Boy 100-9138

Button-HOC

$

$

Not available

5

Lawn-Boy 88-7540

Washer-Backup

$1.99

$

In Stock, Qty 5

0

6

Lawn-Boy 99-6481

Spring-Compression, HOC

$

$

Not available

7

Lawn-Boy 99-6483

Bushing-HOC (only on: 10926)

$

$

Not available

8

Lawn-Boy 100-1525

Bracket-Traction Cable (only on: 10926)

$

$

Not available

9

Lawn-Boy 32144-1

Screw-Taptite (only on: 10926)

$3.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 32144-1

Screw-Taptite (only on: 10925)

$3.49

$

In Stock, Qty 20+

0

11

Lawn-Boy 99-6458

Pipe-HOC

$

$

Not available

12

Lawn-Boy 3296-73

Nut-Lock, NI

$5.49

$

In Stock, Qty 6

0

13

Lawn-Boy 99-6459

Bolt-Shoulder

$

$

Not available

14

Lawn-Boy 99-6460

Plate-Support, HOC

$24.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 99-6478

Axle-Rear ASM
(Superseded to 117-9381)

$

$

Not available

16

Lawn-Boy 92-9590

Wheel ASM (only on: 10926)

$55.99

$

In Stock, Qty 8

0

16

Lawn-Boy 92-9592

Assembly-8" Wheel (only on: 10925)

$60.99

$

In Stock, only 4 left!

0

16:1

$2.99

$

In Stock, only 4 left!

0

17

Lawn-Boy 100-4370

Nut-Lock, Flanged
(Superseded to 108-8890)

$8.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 92-9591

Wheel ASM

$27.99

$

In Stock, only 4 left!

0

19

Lawn-Boy 100-1500

Mount-Axle, Front

$6.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 99-6464

Axle-Front ASM
(Superseded to 104-7562)

$

$

Not available

21

Lawn-Boy 100-9116

Rod-Decal ASM

$

$

Not available

21:2

Lawn-Boy 100-4355

Decal-HOC

$

$

Not available

22

$2.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 92-9698

Screw-Shoulder

$5.49

$

Usually ships in 3-6 days

0

24

Lawn-Boy 100-4384

Spring-Extension, HOC

$

$

Not available
