10926 - Lawn-Boy 48cm Walk-Behind Mower, Canada (SN: 200000001 - 200999999) (2000) HANDLE ASSEMBLY Parts Diagram

48cm Walk-Behind Mower, Canada

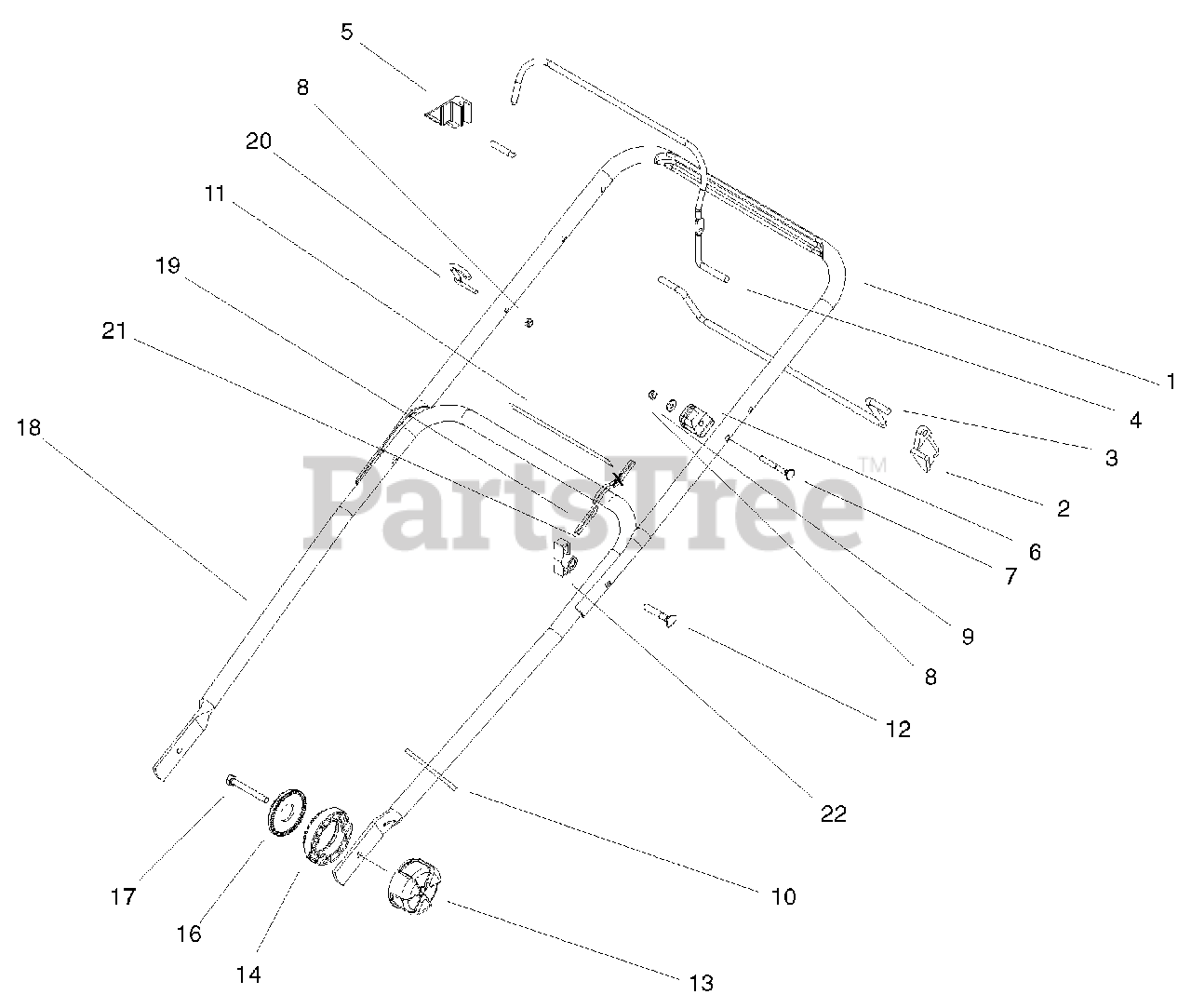

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 99-1569-05

Handle-Upper

$214.99

$

Usually ships in 3-6 days

0

$10.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 99-1570-03

Bail-Brake

$

$

Not available

4

Lawn-Boy 99-1571-03

Bail-Traction (only on: 10926)

$

$

Not available

5

Lawn-Boy 92-5412

Stop-Pivot (only on: 10926)
(Superseded to 107-0757)

$5.49

$

In Stock, only 1 left!

0

6

Lawn-Boy 94-6096

Anchor-Cable

$8.49

$

In Stock, only 1 left!

0

7

Lawn-Boy 92-2269

Screw-Handle

$6.49

$

Usually ships in 3-6 days

0

8

Lawn-Boy 3296-73

Nut-Lock, NI

$5.49

$

In Stock, only 3 left!

0

9

Lawn-Boy 3256-1

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 3290-378

Tie-Cable

$0.99

$

In Stock, Qty 8

0

11

Lawn-Boy 98-3248

Decal-Operation (only on: 10926)

$

$

Not available

12

Lawn-Boy 92-2260

Screw-Handle

$3.99

$

In Stock, only 2 left!

0

13

Lawn-Boy 100-4396

Adjusting Knob-Handle

$

$

Not available

14

Lawn-Boy 100-1510

Disk Adjusting-Handle
(Superseded to 104-7553-03)

$

$

Not available

16

Lawn-Boy 100-1517

Disk Holding-Handle

$

$

Not available

17

Lawn-Boy 60-6690

Capscrew

$0.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 100-9119-05

Handle-Lower 7/8"

$

$

Not available

19

Lawn-Boy 100-4393

Cable-Brake

$

$

Not available

20

Lawn-Boy 95-4457

Guide-Rope
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 5

0

21

Lawn-Boy 100-4394

Cable-Traction (only on: 10926)

$

$

Not available

22

Lawn-Boy 98-7134

Knob-Handle

$2.99

$

In Stock, Qty 15

0
