10926 - Lawn-Boy 48cm Walk-Behind Mower, Canada (SN: 200000001 - 200999999) (2000) GEAR CASE ASSEMBLY NO. 99-6466 Parts Diagram

48cm Walk-Behind Mower, Canada

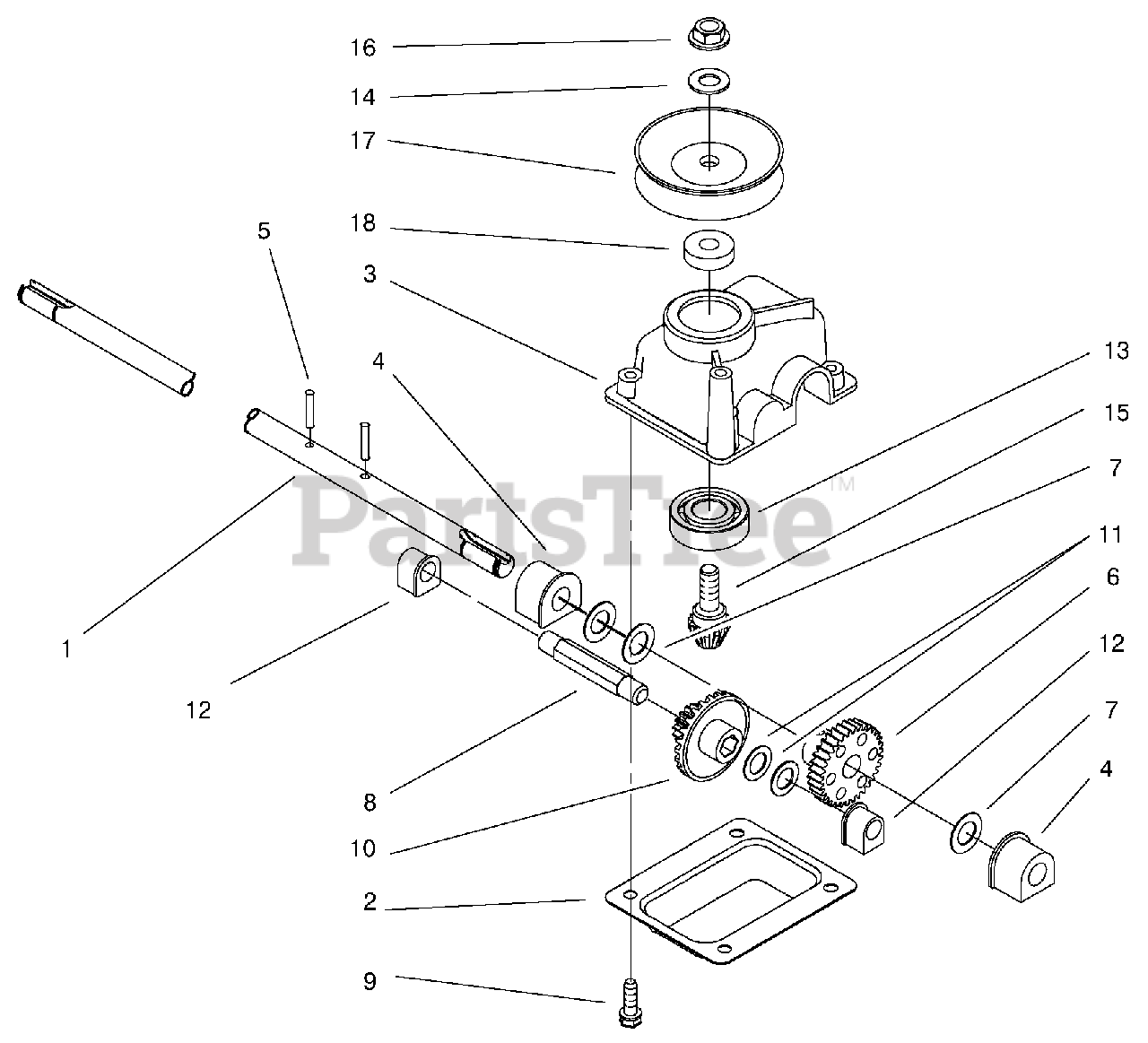

GEAR CASE ASSEMBLY NO. 99-6466 Parts Diagram

  • Title
1

Lawn-Boy 100-1514

Shaft-Output (only on: 10926)

$157.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 614668-03

Cover-Gear Case (only on: 10926)

$9.49

$

Usually ships in 3-6 days

0

3

Lawn-Boy 92-7727

Gearcase (only on: 10926)
(Superseded to 104-7619)

$45.99

$

In Stock, only 1 left!

0

4

Lawn-Boy 60-8850

Bushing-Output (only on: 10926)

$8.49

$

In Stock, Qty 17

0

5

Lawn-Boy 3285-19

Pin-Groove (only on: 10926)

$2.99

$

In Stock, Qty 7

0

6

Lawn-Boy 614596

Gear (only on: 10926)

$54.99

$

In Stock, Qty 5

0

7

Lawn-Boy 36-4780

Washer (only on: 10926)

$7.99

$

In Stock, Qty 7

0

8

Lawn-Boy 614696

Shaft-Intermediate (only on: 10926)

$108.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 49-2040

Screw-Taptite (only on: 10926)

$2.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 55-3760

Gear-Bevel (only on: 10926)
(Superseded to 104-7668)

$34.99

$

In Stock, only 1 left!

0

11

Lawn-Boy 36-4791

Washer-Thrust (only on: 10926)

$2.49

$

In Stock, Qty 20+

0

12

Lawn-Boy 60-8750

Bushing (only on: 10926)

$6.99

$

In Stock, Qty 10

0

13

Lawn-Boy 38-7820

Bearing-Ball (only on: 10926)

$13.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 3256-24

Washer-Flat (only on: 10926)

$0.99

$

In Stock, Qty 19

0

15

Lawn-Boy 60-8890

Gear-Bevel, Pinion (only on: 10926)
(Superseded to 104-7667)

$18.99

$

In Stock, only 1 left!

0

16

Lawn-Boy 3296-5

Nut-Lock, NI (only on: 10926)

$3.49

$

In Stock, Qty 8

0

17

Lawn-Boy 100-1176

Pulley-Half (only on: 10926)

$9.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 62-6660

Spacer (only on: 10926)

$1.49

$

In Stock, only 3 left!

0
