10915 - Lawn-Boy 48cm Walk-Behind Mower, Canada (SN: 008900001 - 008999999) (1998) GEAR CASE ASSEMBLY #71-9600 Parts Diagram

48cm Walk-Behind Mower, Canada

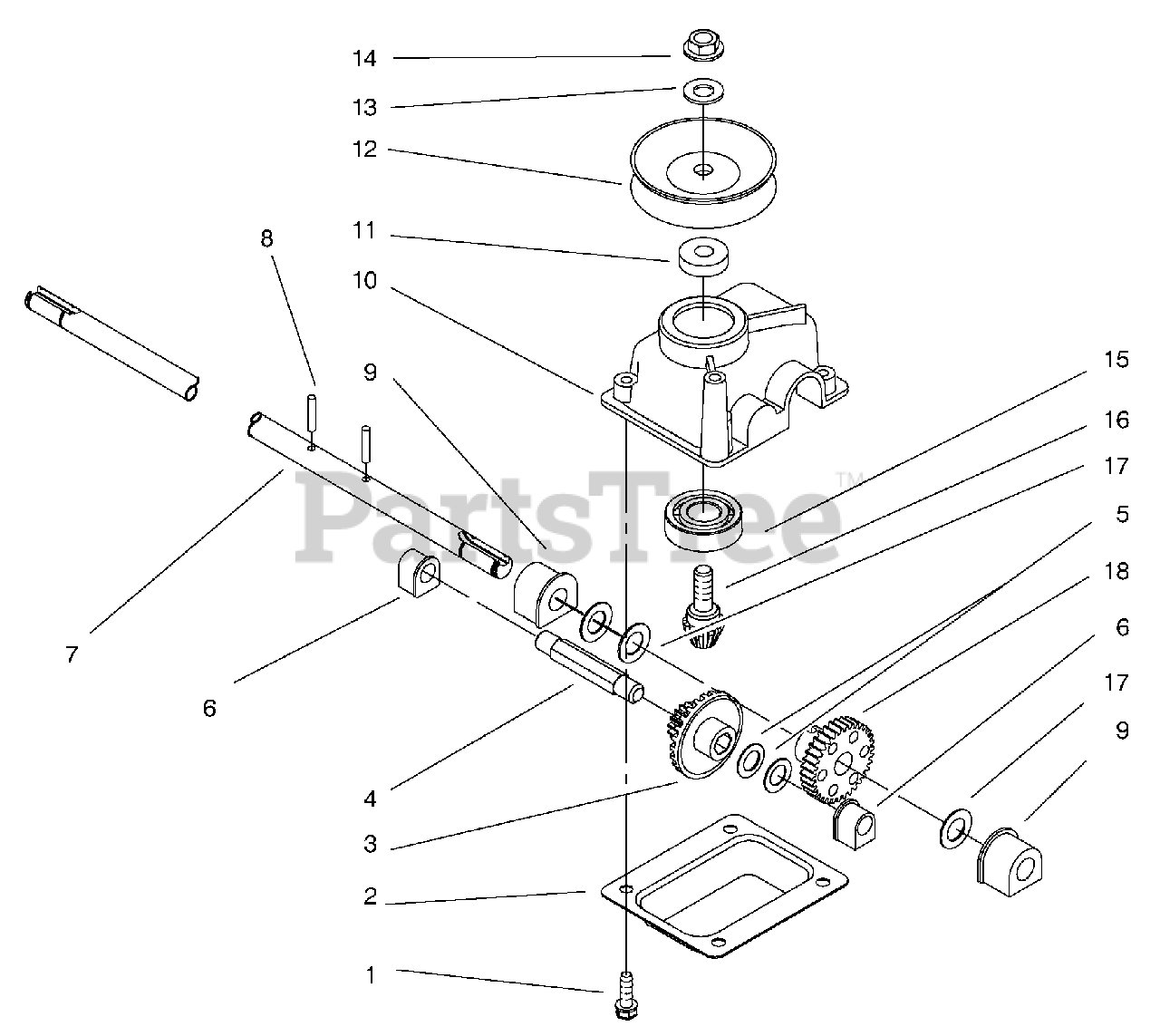

GEAR CASE ASSEMBLY #71-9600 Parts Diagram

  • Title

1

Lawn-Boy 49-2040

Screw-Taptite

$2.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 614668

Cover-Gear Case
(Superseded to 614668-03)

$9.49

$

Usually ships in 3-6 days

0

3

Lawn-Boy 55-3760

Pinion-15 Tooth
(Superseded to 104-7668)

$34.99

$

In Stock, only 1 left!

0

4

Lawn-Boy 614696

Shaft-Intermediate

$108.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 36-4791

Washer

$2.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 60-8750

Bushing

$6.99

$

In Stock, Qty 10

0

7

Lawn-Boy 71-9620

Shaft-Output

$

$

Not available

8

Lawn-Boy 32121-114

Pin-Groove

$2.49

$

Usually ships in 3-6 days

0

9

Lawn-Boy 60-8850

Bushing-Output

$8.49

$

In Stock, Qty 17

0

10

Lawn-Boy 614578

Cover-Gear Case

$

$

Not available

11

Lawn-Boy 62-6660

Spacer

$1.49

$

In Stock, only 3 left!

0

12

Lawn-Boy 71-9610

Pulley-Half

$12.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 3256-24

Washer

$0.99

$

In Stock, Qty 14

0

14

Lawn-Boy 3296-5

Nut

$3.49

$

In Stock, Qty 8

0

15

Lawn-Boy 38-7820

Bearing-Ball

$13.99

$

In Stock, Qty 18

0

16

Lawn-Boy 60-8890

Gear-Bevel Pinion
(Superseded to 104-7667)

$18.99

$

In Stock, only 1 left!

0

17

Lawn-Boy 36-4780

Washer-Thrust

$7.99

$

In Stock, only 3 left!

0

18

Lawn-Boy 614596

Gear 34 Tooth

$54.99

$

In Stock, Qty 5

0

Lawn-Boy 71-9600

Gear Case Ass'y Complete

Note: Not Illustrated

$

$

Not available
