10915 - Lawn-Boy 48cm Walk-Behind Mower, Canada (SN: 007900001 - 007999999) (1997) REAR AXLE ASSEMBLY Parts Diagram

48cm Walk-Behind Mower, Canada

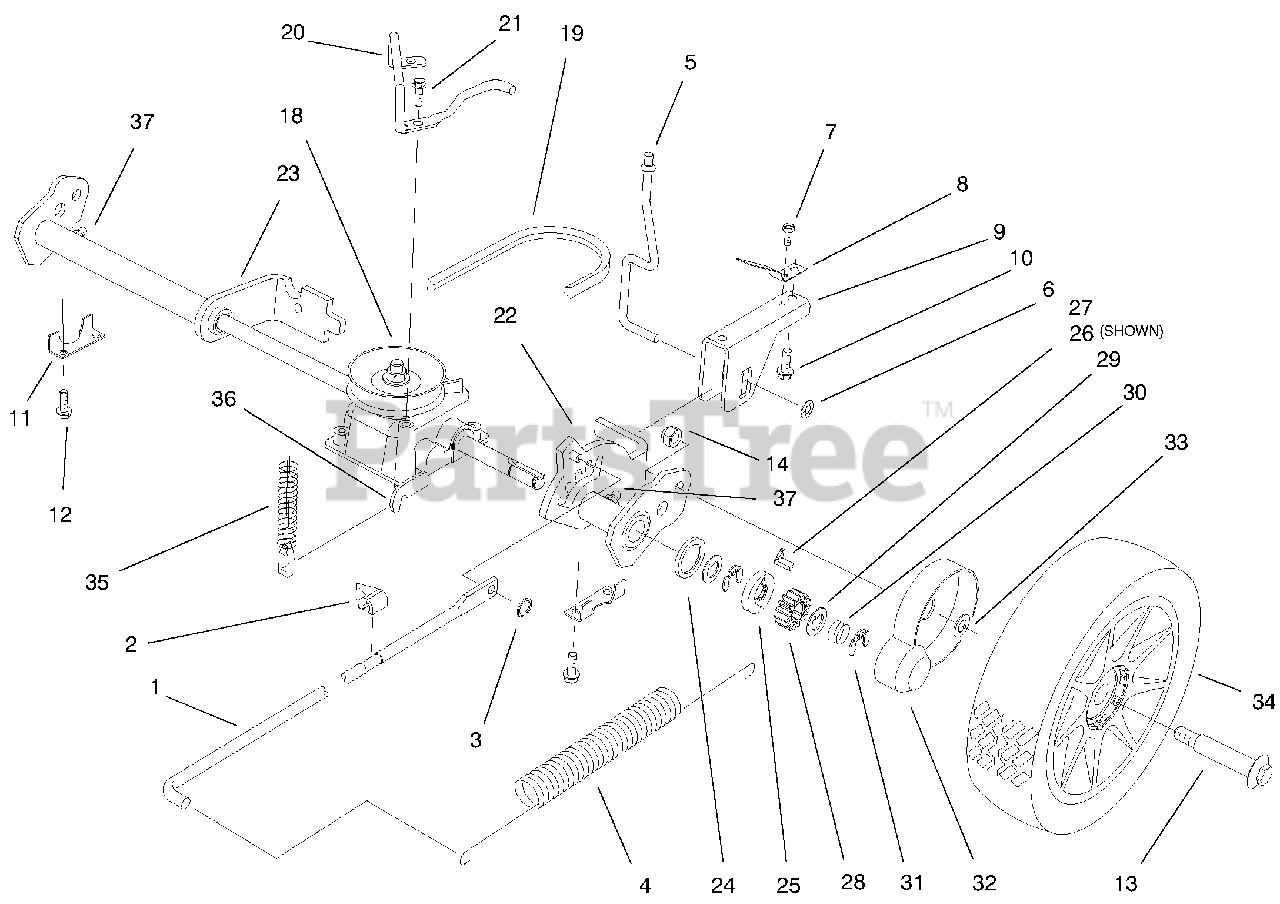

REAR AXLE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 92-9301

ROD - LINK

$

$

Not available

2

Lawn-Boy 71-7980

INDICATOR-HEIGHT OF CUT

$8.49

$

Usually ships in 3-6 days

0

3

Lawn-Boy 32151-93

GRIP RING

$0.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 92-9300

SPRING-COUNTERBALANCE

$

$

Not available

5

Lawn-Boy 71-7840

TRIGGER ROD

$23.99

$

Usually ships in 3-6 days

0

6

$1.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 32144-31

SCREW 8 - 32 X 250

$1.49

$

Usually ships in 3-6 days

0

8

Lawn-Boy 71-8060

SPRING - TRIGGER RET

$

$

Not available

9

Lawn-Boy 71-8080

SADDLE - HOC

$18.99

$

Usually ships in 3-6 days

0

10

$1.49

$

In Stock, only 4 left!

0

11

Lawn-Boy 71-7770

REAR SECURING PLATE

$

$

Not available

12

Lawn-Boy 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

13

Lawn-Boy 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 11

0

14

Lawn-Boy 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 18

0

18

Lawn-Boy 71-9600

GEAR CASE ASSY

$

$

Not available

19

$23.99

$

In Stock, only 4 left!

0

20

Lawn-Boy 71-9850

Retainer Belt
(Superseded to 95-2740-03)

$17.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

22

Lawn-Boy 92-9311

Arm-L.H. Pivot

$

$

Not available

23

Lawn-Boy 92-9310

RH PIVOT ARM ASSEMBLY

$

$

Not available

24

Lawn-Boy 65-4710

RING-FRICTION

$2.99

$

In Stock, Qty 18

0

25

Lawn-Boy 65-4760

WASHER-CLUTCH

$1.49

$

In Stock, Qty 15

0

26

Lawn-Boy 66-6050

KEY-ROCKING, LH
(Superseded to 139-6644)

$7.49

$

In Stock, Qty 14

0

27

Lawn-Boy 66-6040

KEY-ROCKING, RH
(Superseded to 139-6643)

Note: Not illustrated

$7.49

$

In Stock, Qty 6

0

28

Lawn-Boy 65-4750

GEAR-PINION

$11.99

$

In Stock, Qty 6

0

29

Lawn-Boy 65-4740

WASHER-THRUST, KEYED

$2.49

$

In Stock, Qty 20+

0

30

Lawn-Boy 65-4720

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 20+

0

31

Lawn-Boy 65-2720

RING-CLIP, LOCKING

$1.49

$

Usually ships in 3-6 days

0

32

Lawn-Boy 74-1660

COVER-WHEEL

$8.49

$

In Stock, only 3 left!

0

33

Lawn-Boy 74-1670

SPACER-COVER, WHEEL

$6.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 92-9318

8" WHL ASM W/GEAR

$

$

Not available

35

Lawn-Boy 71-8310

SPRING-COMPRESSION

$4.99

$

Usually ships in 3-6 days

0

36

Lawn-Boy 71-9630

Bracket-Traction (Incl. with 71-9600)
(Superseded to 98-2039)

$

$

Not available

37

Lawn-Boy 302-26

FITTING-GREASE

$6.49

$

In Stock, only 1 left!

0
