10915 - Lawn-Boy 48cm Walk-Behind Mower, Canada (SN: 007900001 - 007999999) (1997) HOUSING ASSEMBLY Parts Diagram

48cm Walk-Behind Mower, Canada

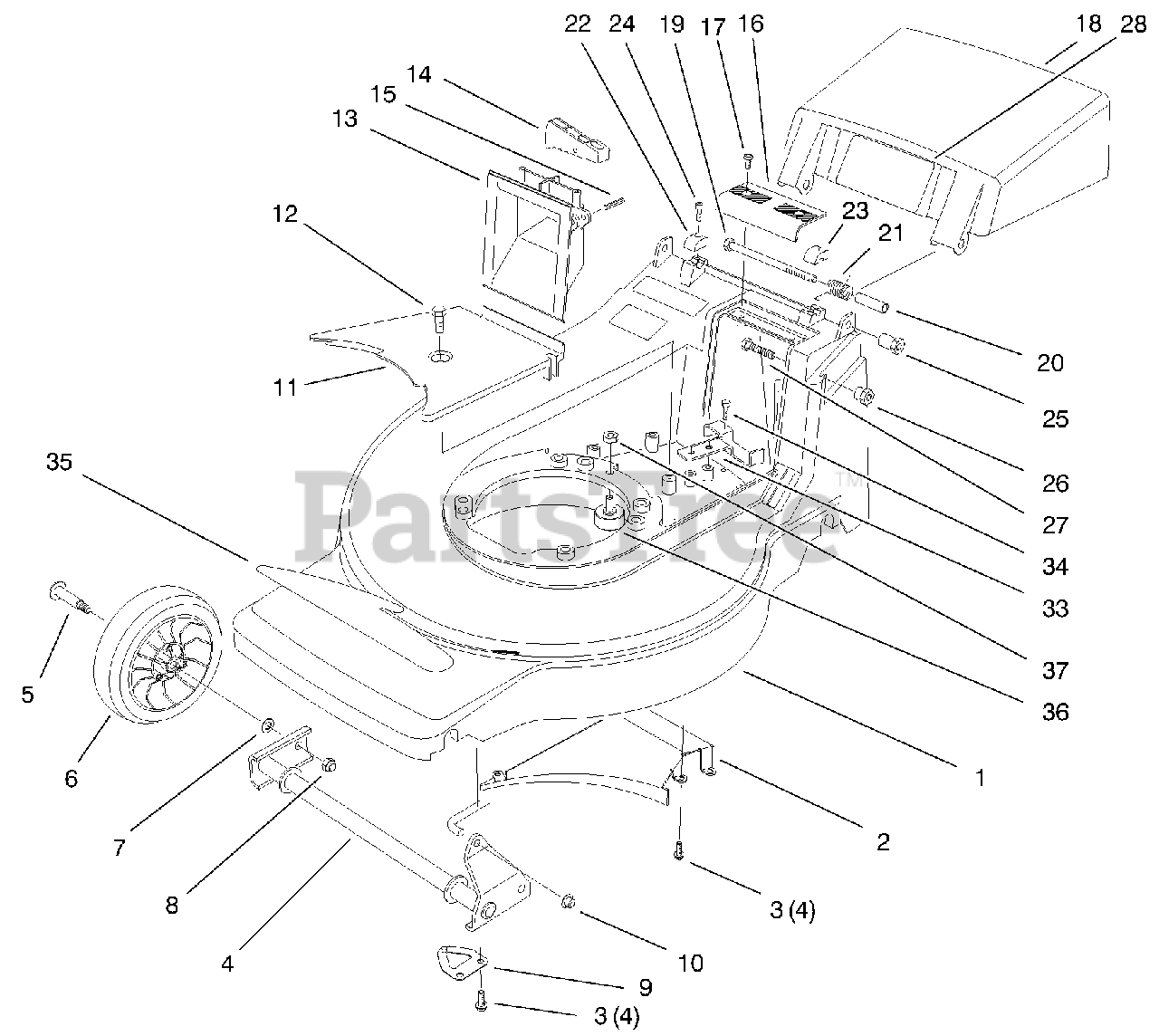

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 16-8889

Housing-Deck (Incl. Ref. # 35)

$

$

Not available

2

Lawn-Boy 71-7990

Ramp-Discharge
(Superseded to 71-7990-03)

$

$

Not available

3

Lawn-Boy 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 92-9304

PIVOT - FRONT WA

$

$

Not available

5

Lawn-Boy 92-8811

WHEEL BOLT

$

$

Not available

6

Lawn-Boy 92-8810

WHL & TIRE ASM 7"

$

$

Not available

7

$2.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 92-8819

Nut-Lock
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 71-8830

SHAFT RETAINER ASM

$

$

Not available

10

Lawn-Boy 32112-1

PUSHNUT-CAP, WASHER

$6.49

$

Usually ships in 3-6 days

0

11

Lawn-Boy 71-7920

BELT COVER

$

$

Not available

12

Lawn-Boy 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 71-7870

GRIP - LOWER

$

$

Not available

14

Lawn-Boy 71-7930

TRIGGER - HOC

$

$

Not available

15

Lawn-Boy 3284-5

PIN-SPIRAL

$

$

Not available

16

Lawn-Boy 71-7860

GRIP-UPPER

$

$

Not available

17

Lawn-Boy 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 7

0

18

Lawn-Boy 17-1569

Door-Discharge (Incl. Ref. # 28)

$118.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 92-8806

5/16-18 X 4 CAPSCREW

$

$

Not available

20

Lawn-Boy 92-9313

DOOR SPACER

$

$

Not available

21

Lawn-Boy 71-9840

SPRING-DOOR

$14.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 71-7910

CAP-HINGE BOLT, RH

$5.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 71-7900

CAP-HINGE BOLT, LH

$5.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 65-5210

SCREW-HSH

$

$

Not available

25

Lawn-Boy 93-7161

48CM HANDLE SPACER

$

$

Not available

26

Lawn-Boy 93-7162

48CM HANDLE SPACER

$

$

Not available

27

Lawn-Boy 92-8818

5/16-18X1.50 HEX CAPSRW

$

$

Not available

28

Lawn-Boy 93-4105

DECAL-DANGER
(Superseded to 112-8759)

$18.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 71-7890

REAR BELT GUIDE

$

$

Not available

34

Lawn-Boy 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

35

Lawn-Boy 92-8837

OBS DECAL - DECK 450VS

$

$

Not available

36

Lawn-Boy 92-8808

STUD-BEARING, BALL

$

$

Not available

37

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
