10915 B - Lawn-Boy 48cm Walk-Behind Mower, Canada (SN: 005900001 - 005999999) (1995) CARBURETOR ASSEMBLY Parts Diagram

48cm Walk-Behind Mower, Canada

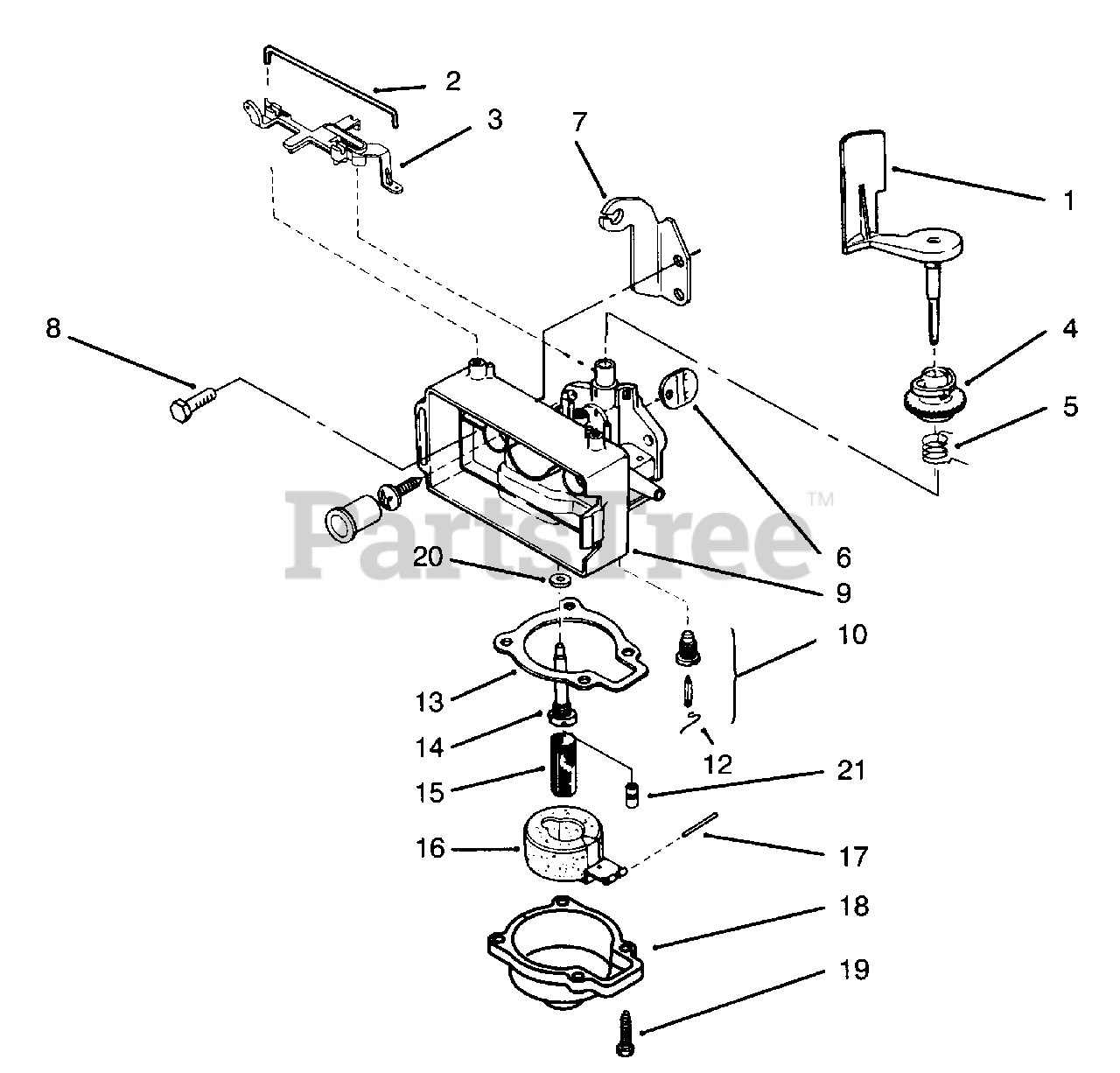

CARBURETOR ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 92-6376

Air Vane & Shaft
(Superseded to 104-4430)

$12.99

$

In Stock, Qty 12

0

2

Lawn-Boy 610165

Retainer-Speed Control

$4.49

$

In Stock, Qty 14

0

3

Lawn-Boy 93-1225

Lever-Speed Adjust

$2.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 610834

Collar-Air Vane

$4.49

$

In Stock, Qty 20+

0

5

Lawn-Boy 92-4944

Spring-Governor

$10.99

$

In Stock, Qty 9

0

6

Lawn-Boy 92-6373

Disc-Throttle

$5.49

$

In Stock, only 1 left!

0

7

Lawn-Boy 92-4949

Bracket-Throttle Control

$

$

Not available

8

Lawn-Boy 613269

Screw

$2.49

$

Usually ships in 3-6 days

0

9

Lawn-Boy 92-6377

Carburetor Body
(Superseded to 93-4324)

$

$

Not available

10

Lawn-Boy 92-9697

Kit-Float Valve, Body & Seat (Incl. Ref. #12)

$23.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 603145

Spring
(Superseded to 92-9697)

$23.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 602850

Gasket
(Superseded to 98-1362)

$3.49

$

In Stock, Qty 20+

0

14

Lawn-Boy 92-6371

Nozzle

$

$

Not available

15

Lawn-Boy 611071

Filter-Fuel

$18.99

$

In Stock, only 2 left!

0

16

Lawn-Boy 678113

Float & Arm Assembly

$

$

Not available

17

Lawn-Boy 92-6389

Pin

$5.99

$

In Stock, only 2 left!

0

18

Lawn-Boy 92-9691

Float Chamber

$42.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 608850

Screw

$2.49

$

In Stock, only 3 left!

0

20

Lawn-Boy 612383

Washer

$1.99

$

In Stock, only 2 left!

0

21

Lawn-Boy 92-6370

Main Jet

$15.99

$

In Stock, only 1 left!

0

Lawn-Boy 92-6385

Jet-High Altitude

Note: Not Illustrated

$

$

Not available

Lawn-Boy 92-9695

Carburetor Assembly
(Superseded to 93-4331)

Note: Not Illustrated

$278.99

$

In Stock, only 2 left!

0
