10915 B - Lawn-Boy 48cm Walk-Behind Mower, Canada (SN: 004900001 - 004999999) (1994) REAR AXLE ASSEMBLY Parts Diagram

48cm Walk-Behind Mower, Canada

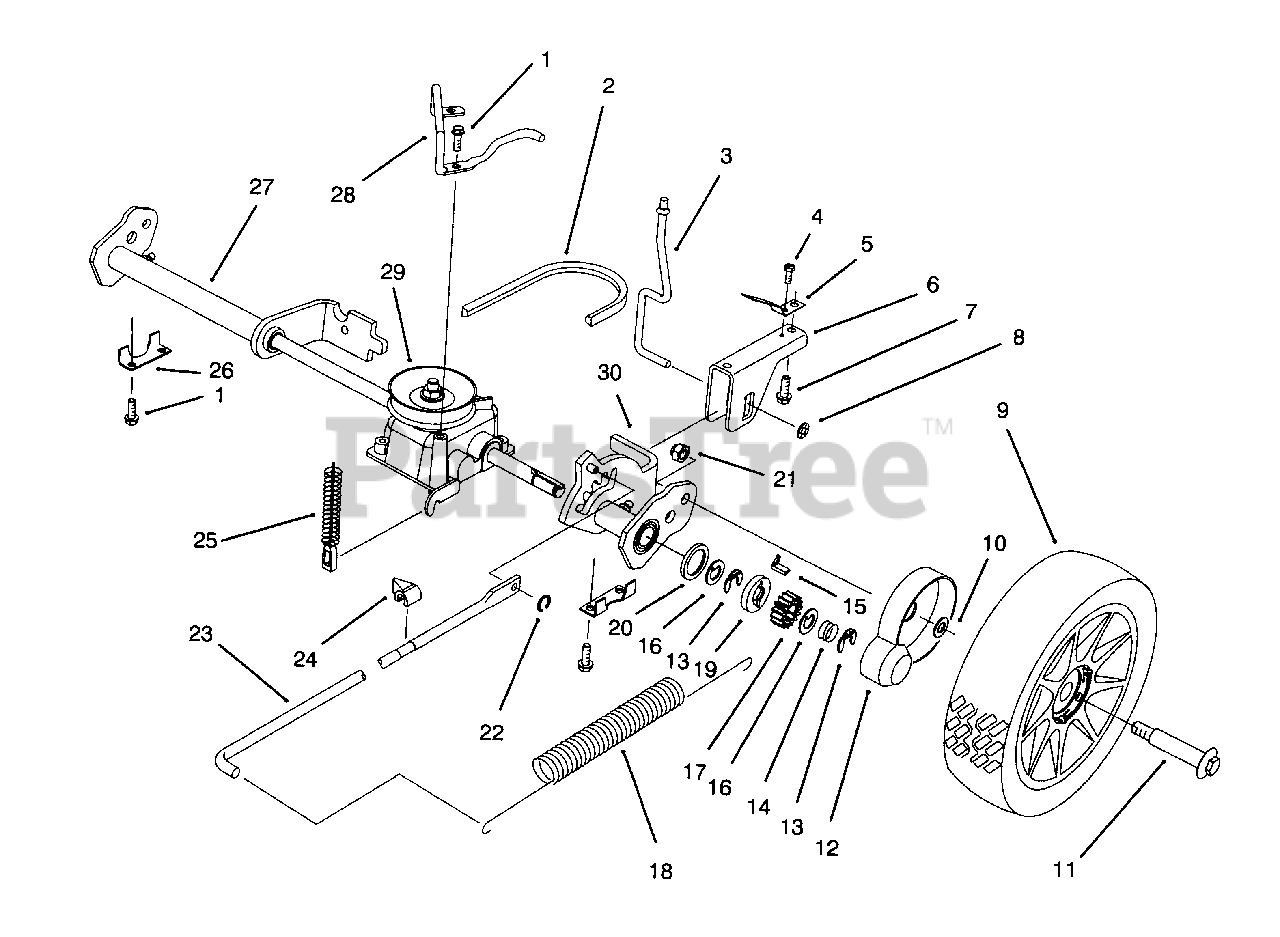

REAR AXLE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 32144-4

Screw-Tapping

$1.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 71-9450

V-Belt-Gear Case

$23.99

$

In Stock, only 2 left!

0

3

Lawn-Boy 71-7840

Rod-Trigger

$27.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 32144-31

Screw-Tapping

$

$

Not available

5

Lawn-Boy 71-8060

Spring-Trigger Retainer

$

$

Not available

6

Lawn-Boy 71-8080

Saddle-H.O.C.

$

$

Not available

$1.49

$

In Stock, only 4 left!

0

8

$2.49

$

Usually ships in 3-6 days

0

9

Lawn-Boy 92-9318

Wheel & Tire Assembly

$

$

Not available

10

Lawn-Boy 74-1670

Spacer-Wheel

$7.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 92-1057

Bolt-Shoulder

$3.99

$

In Stock, Qty 7

0

12

Lawn-Boy 74-1660

Cover-Wheel

$8.49

$

In Stock, only 3 left!

0

13

Lawn-Boy 65-2720

Ring-Retaining

$1.49

$

In Stock, Qty 6

0

14

Lawn-Boy 65-4720

Spring-Compression

$1.49

$

In Stock, Qty 20+

0

15

Lawn-Boy 66-6050

Key-Rocking L.H.
(Superseded to 139-6644)

$7.49

$

In Stock, Qty 8

0

Lawn-Boy 66-6040

Key-Rocking R.H.
(Superseded to 139-6643)

Note: Not Illustrated

$7.49

$

In Stock, Qty 12

0

16

Lawn-Boy 65-4740

Washer-Thrust Keyed

$2.49

$

In Stock, only 2 left!

0

17

Lawn-Boy 65-4750

Gear-Pinion

$11.99

$

In Stock, Qty 18

0

18

Lawn-Boy 92-9300

Spring-Counter balance

$

$

Not available

19

$1.49

$

In Stock, Qty 20+

0

20

Lawn-Boy 65-4710

Ring-Friction

$3.49

$

In Stock, Qty 5

0

21

Lawn-Boy 92-8819

Nut-Lock
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

22

Lawn-Boy 32151-93

Ring-Grip

$0.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 92-9301

Rod-Link

$

$

Not available

24

Lawn-Boy 71-7980

Indicator-H.O.C.

$9.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 71-8310

Spring-Compression

$4.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 71-7770

Plate-Securing Rear

$

$

Not available

27

Lawn-Boy 92-9310

Arm-R.H. Pivot

$

$

Not available

28

Lawn-Boy 71-9850

Retainer-Belt
(Superseded to 95-2740-03)

$

$

Not available

29

Lawn-Boy 71-9600

Case-Gear

$

$

Not available

30

Lawn-Boy 92-9311

Arm-L.H. Pivot

$

$

Not available
