10910 - Lawn-Boy 48cm Walk-Behind Mower, Canada (SN: 009900001 - 009999999) (1999) REAR AXLE ASSEMBLY Parts Diagram

48cm Walk-Behind Mower, Canada

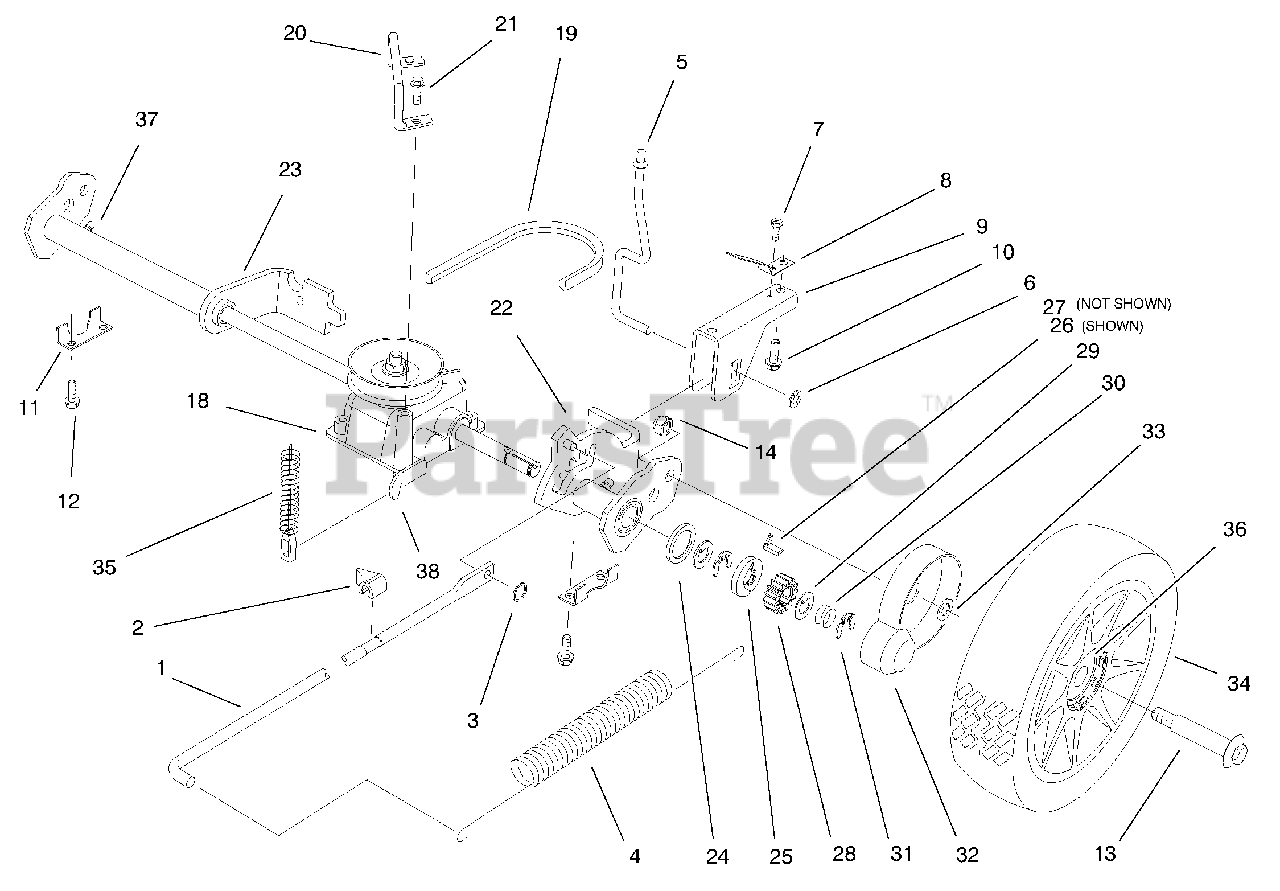

REAR AXLE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 92-9301

Rod-Link

$

$

Not available

2

Lawn-Boy 71-7980

Indicator-HOC

$9.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 32151-93

Ring-Grip

$0.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 92-9300

Spring-Counterbalance

$

$

Not available

5

Lawn-Boy 71-7840

Rod-Trigger

$27.99

$

Usually ships in 3-6 days

0

6

$2.49

$

Usually ships in 3-6 days

0

$

$

Not available

8

Lawn-Boy 71-8060

Spring-Trigger Retainer

$

$

Not available

9

Lawn-Boy 71-8080

Saddle-HOC

$

$

Not available

10

$1.49

$

In Stock, only 4 left!

0

11

Lawn-Boy 71-7770

Plate-Securing

$

$

Not available

12

Lawn-Boy 32144-4

Screw-HH Tap

$1.49

$

In Stock, Qty 20+

0

13

Lawn-Boy 92-1057

Bolt-Shoulder

$3.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 3296-59

Nut-Lock
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

18

Lawn-Boy 71-9600

Gear Case Assembly

$

$

Not available

19

$23.99

$

In Stock, Qty 8

0

20

Lawn-Boy 95-2740

Retainer-Belt
(Superseded to 95-2740-03)

$

$

Not available

21

Lawn-Boy 32144-4

Screw-HH Tap

$1.49

$

In Stock, Qty 20+

0

22

Lawn-Boy 92-9311

Pivot Arm Assembly LH (Incl. Ref. #39-41)

$

$

Not available

23

Lawn-Boy 92-9310

Pivot Arm Assembly RH (Incl. Ref. #39-41)

$

$

Not available

24

Lawn-Boy 65-4710

Ring-Friction

$3.49

$

In Stock, Qty 20+

0

25

$1.49

$

In Stock, Qty 20+

0

26

Lawn-Boy 66-6050

Key-Rocking LH
(Superseded to 139-6644)

$7.49

$

In Stock, Qty 20+

0

27

Lawn-Boy 66-6040

Key-Rocking RH
(Superseded to 139-6643)

$7.49

$

In Stock, Qty 20+

0

28

Lawn-Boy 65-4750

Gear-Pinion

$11.99

$

In Stock, Qty 20+

0

29

Lawn-Boy 65-4740

Washer-Thrust

$2.49

$

In Stock, Qty 20+

0

30

Lawn-Boy 65-4720

Spring-Compression

$1.49

$

In Stock, Qty 20+

0

31

Lawn-Boy 65-2720

Ring-Retaining

$1.49

$

In Stock, Qty 20+

0

32

Lawn-Boy 74-1660

Cover-Wheel

$8.49

$

In Stock, Qty 14

0

33

Lawn-Boy 74-1670

Spacer-Wheel

$7.99

$

In Stock, only 2 left!

0

34

Lawn-Boy 92-9318

Wheel & Tire Assembly (Incl. Ref. #36)

$

$

Not available

35

Lawn-Boy 71-8310

Spring-Compression

$4.99

$

Usually ships in 3-6 days

0

36

$2.99

$

In Stock, only 4 left!

0

37

Lawn-Boy 302-26

Fitting-Grease

$7.49

$

In Stock, only 1 left!

0

38

Lawn-Boy 98-2039

Bracket-Traction

$

$

Not available

39

Lawn-Boy 47-2890

Bushing

Note: Not Illustrated

$3.99

$

Usually ships in 3-6 days

0

40

Lawn-Boy 47-6730

Seal-Oil

Note: Not Illustrated

$13.99

$

In Stock, Qty 20+

0

41

Lawn-Boy 48-2060

Bearing-Needle
(Superseded to 117-3500)

Note: Not Illustrated

$5.49

$

In Stock, Qty 16

0
